10 R graphics: Round II

R offers several different types of graphics: grid graphics is contained in package grid; the package lattice contains trellis graphics; the package ggplot2 introduces ggplot graphics to be implemented by the function ggplot(). In this chapter, further aspects of what is known as traditional R graphics are studied before moving on to ggplot graphics.

10.1 Graphics parameters

1. Study the help file of par(). Execute par() to obtain a list of all the current values of the graphical parameters.

2. How is par() used to obtain the current setting of a specific graphics parameter e.g. the parameter fin?

par("fin")
#> [1] 6.999999 4.999999

3. How is par() used to change a graphics parameter e.g. mfrow?

4. How do you reset the changed values to their original values? Note the no.readonly argument of par(). Hint: Study the following instructions and there effects carefully:

par('col')
#> [1] "black"

The current colour for graphics is “black”.

temp <- par(col = "blue")

Change colour for graphics to “blue”.

temp
#> $col
#> [1] "black"

Temp is a list of parameter(s) BEFORE change was made.

par('col')
#> [1] "black"

Shows that the colour for graphics was indeed changed to “blue”.

5. It is sometimes useful to use par (ask = TRUE) to instruct R to ask you whether an existing graph should be replaced by a new one.

6. Draw a histogram of variable Ozone in the data set airquality where each class interval is randomly represented by a different colour. What happened to the NA values?

10.2 Layout of graphics

1. Review Figure 4.1. Note the parameters that are discussed there.

2. Multiple figures on one page: How do the graphical parameters mfg and mfrow or mfcol differ? What are represented in the R data sets ldeaths, mdeaths and fdeaths? Use mfg and mfrow to obtain Figure 10.1. Hint: The graphics parameters mfg and mfrow are used together.

Figure 10.1: Plots of the fdeaths and mdeaths data sets.

par (mfrow = c(3, 2), mfg = c(1, 1))

The mfrow setting reserves three rows and two columns for graphics to be filled row-wise. The mfg setting specifies that the next graph will be placed in the position defined by row one column one. Once this graph has been constructed the instruction

par (mfg = c(1, 2))

will result in the next graph to appear in the position defined by row one and column two. Next we need the instruction

par (mfrow = c(3, 1), mfg = c(2, 1))

requesting a graph window having three rows and one column with the next graph to appear at position row two (only one column in row two).

3. Note how the meaning of the margins changes when more than one figure is drawn on a page to make provision for an outer margin surrounding all figures in addition to the margin surrounding each separate figure.

4. Study how the functions split.screen(), screen() and close.screen() work as explained in the help facility.

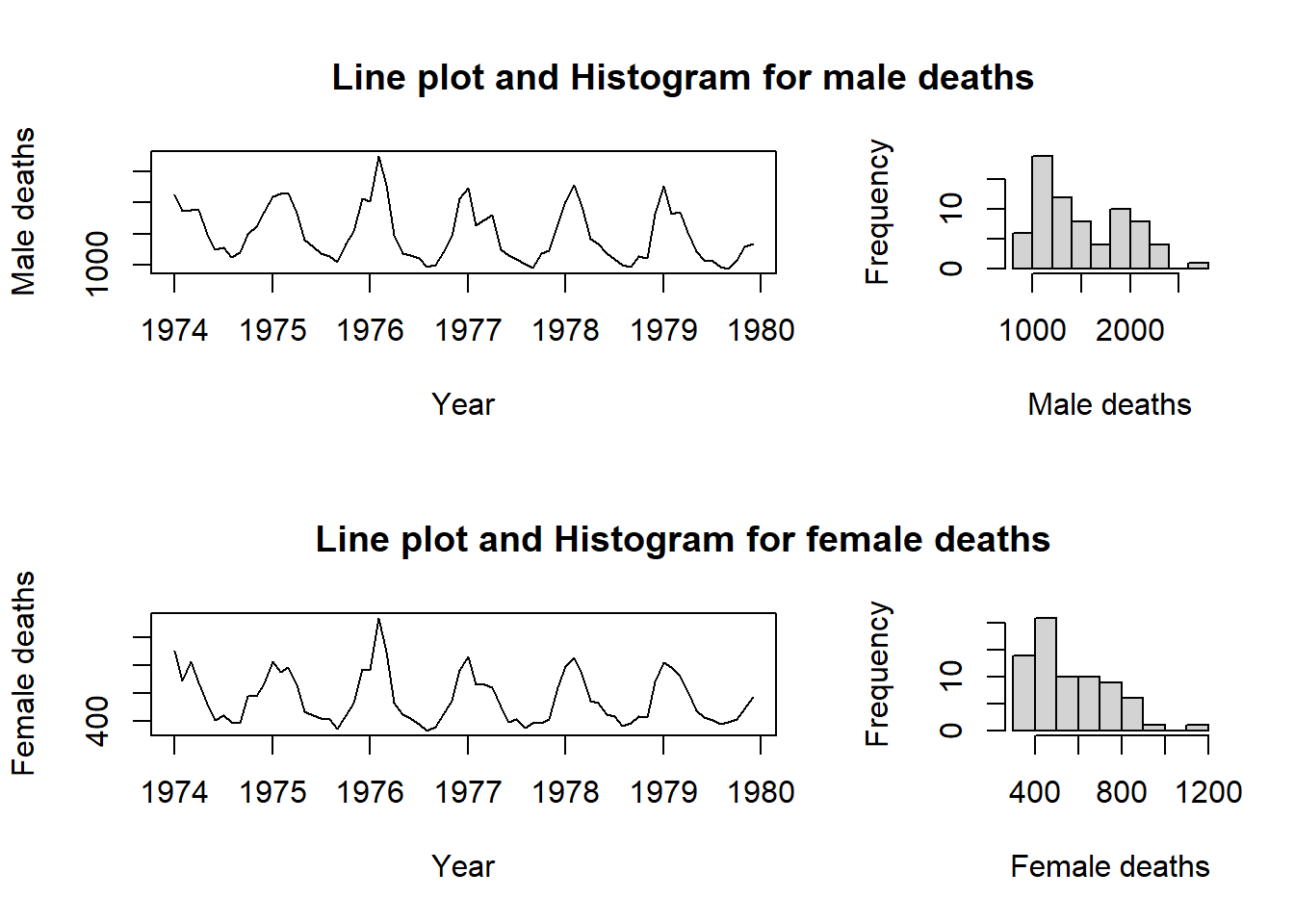

5. Study the usage of the function layout() in detail for more complicated arrangements of the graph window. An example of its usage is deferred until later in the chapter.

10.3 Low-level plotting commands

• The functions in Table 10.1 are used to edit existing graphs.

• Study these functions carefully.
• Study how the right mouse button is used with R graphs.
• Most plotting tasks require some combination of high-level and low-level plotting commands.

Table 10.1: Low-level plotting functions.

Function	Description
abline()	Add regression lines to a plot; Also for adding a vertical and horizontal lines to a plot
arrows()	Draw arrow on plot
axis()	Add custom axis to plot
box()	Draw box around plot
chull()	Compute a convex hull
jitter()	Add a small amount of noise
legend()	Add a legend to a plot
lines()	Add lines to a plot
mtext()	Write text in margins
points()	Add points to a plot
polygon()	Draw and shade polygons
rug()	Add data-based marks to an axis
segments()	Draw disconnected line segments
symbols()	Draw symbols on a plot
text()	Add text to a plot
title()	Add titles or axis labels to a plot

10.4 Using the plotting commands

10.4.1 Multiple lines or groups of points on the same graph

Study how the function matplot() works. Note the functions matlines() and matpoints(). Study and execute the following example:

my.func <- function ()
{ times <- matrix(0,100,3)
  for(i in 1:100)
    {  n <- i * 10000
       s1 <- 1:n
       s2 <- sample(n)
       s3 <- rnorm(n)
       times[i,1] <- system.time(sort(s1))[1]
       times[i,2] <- system.time(sort(s2))[1]
       times[i,3] <- system.time(sort(s3))[1]
     }
  matplot(x = (1:100)*10000, y= times, type = "l", lty = 1:3,
          col = c("black", "green", "red"), xlab = "Length",
          ylab = "Time in seconds", main = "Time for sorting")
}
my.func()

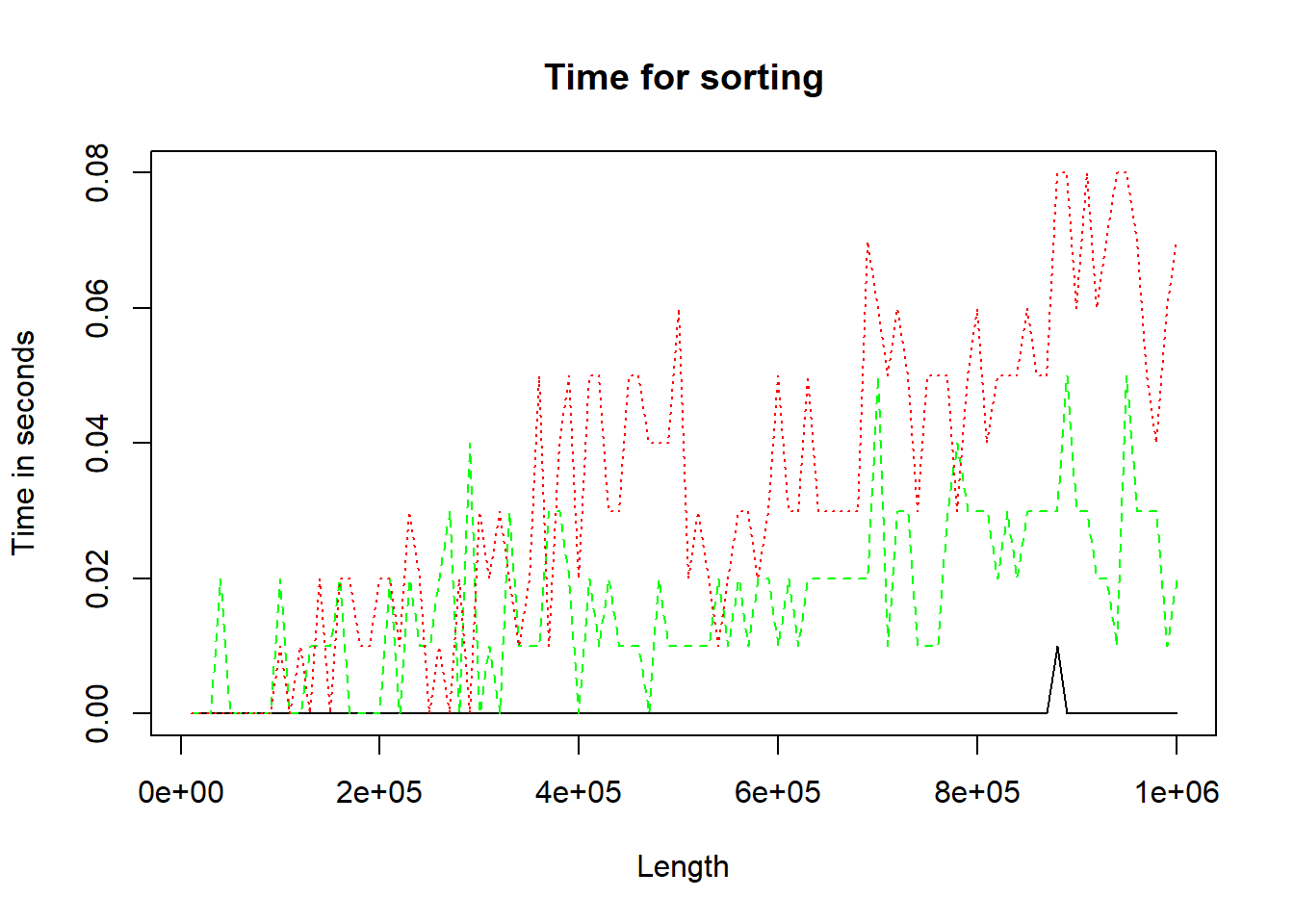

Figure 10.2: Three methods of performing sort.

10.4.2 Multiple lines or groups of points on the same graph but the lines (points) are not all the same length (number)

What technique must be followed? First study the Cars93 data set in package MASS; then study and execute the code below. Experiment with different values of spar.

my.func <- function (spar = 0.9)
{ require (MASS)                             # What is the effect of require()?
  oldstate <- par (no.readonly = TRUE)       # Describe object 'oldstate'
  on.exit (par (oldstate))                   # Of what use is on.exit()?
  par (mfrow = c(1,2))

  cargrp <- Cars93[ , "Type"]
  price <- Cars93[ , "Price"]
  mpg.city <- Cars93[ , "MPG.city"]
  mpg.highway <- Cars93[ , "MPG.highway"]
  plot(price, mpg.city, type = "n", ylim = c(0, max(mpg.city)),
       main = "Fuel Con. vs Price for City", xlab = "Price",
       ylab = "Miles per Gallon in City")
  jj <- 0
  for(i in levels(cargrp))
    {  jj <- jj+1
       lines (smooth.spline (price[cargrp==i], mpg.city[cargrp==i], spar=spar),
              lty = jj, col = jj, lwd=2)
    }
  plot(price, mpg.highway, type = "n", ylim = c(0, max(mpg.highway)),
       main = "Fuel Con. vs Price for Highway", xlab = "Price",
       ylab = "Miles per Gallon on Highway")
  jj <- 0
  for(i in levels(cargrp))
    {  jj <- jj+1
       lines (smooth.spline (price[cargrp==i], mpg.highway[cargrp==i],
                             spar = spar),
              lty = jj, col = jj, lwd = 2)
    }
}
my.func()
#> Loading required package: MASS

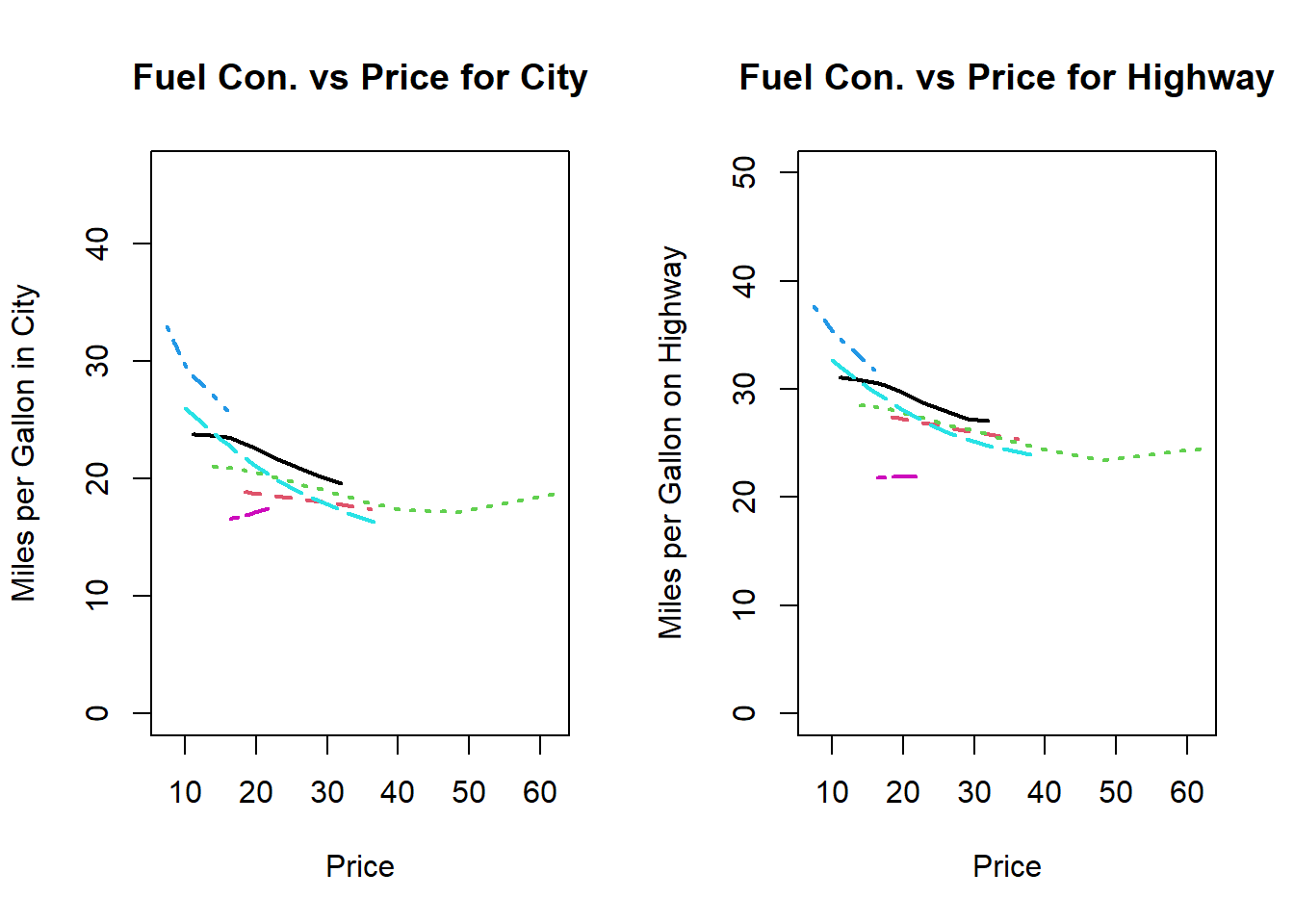

Figure 10.3: Plotting multiple lines of different lenghts

1. Explain the output generated by the above function call.

2. What technique can also be followed in the case of point diagrams?

10.4.3 Adding legends to a graph

1. Study how the function legend() and the graphical parameter usr work. Study the code used to obtain Figure 10.4. Revise the locator() function.

2. Use the facts that one USA gallon of liquid is equal to \(0.83267\) UK (imperial) gallon of liquid and one mile is equal to \(1.6093\) kilometres to obtain a figure similar to Figure 10.3 but with a kilometres per litre scale on the right-hand side that corresponds to the miles per gallon (USA) on highway scale on the left-hand side.

my.func <- function()
{ require (MASS)
  oldstate <- par (no.readonly = TRUE)
  on.exit (par (oldstate))

  cargrp <- Cars93[ , "Type"]
  price <- Cars93[ , "Price"]
  mpg.city <- Cars93[ , "MPG.city"]
  plot(price, mpg.city, type = "n", ylim = c(0, max(mpg.city)),
       main = "Fuel Consumption vs Price for City Drive", xlab = "Price",
       ylab = "Miles per Gallon in City")
  char <- substring (as.character (cargrp), 1, 2)
  text (x = price, y = mpg.city, labels = char, pos = 1, cex = 0.75)
  labs <- paste (substring (levels (cargrp), 1, 2), levels(cargrp), sep=":  ")
  legend(x = 40, y = 42, legend = labs)
}
my.func ()

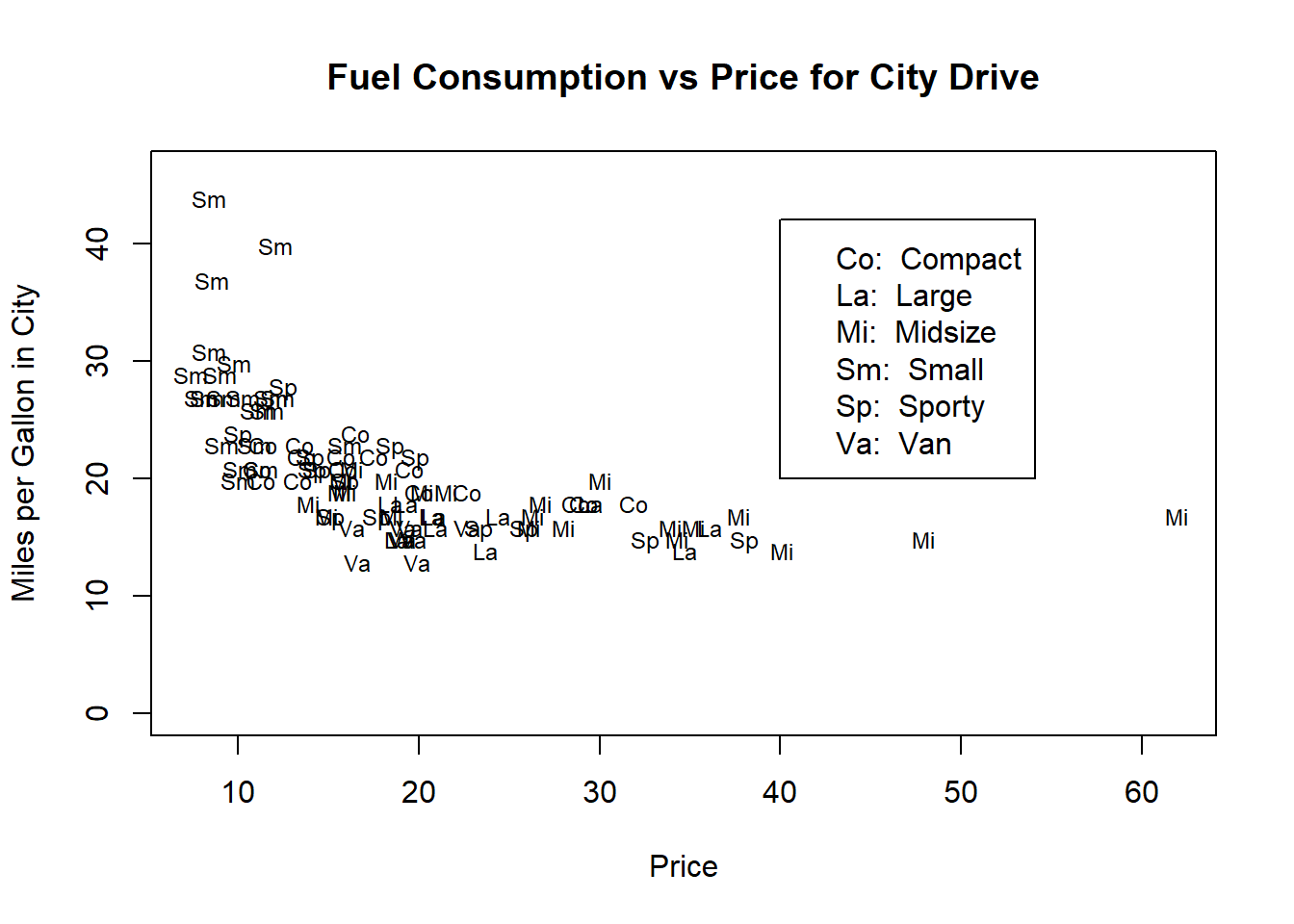

Figure 10.4: Illustrating adding a legend to a plot.

10.4.4 Multiple plots with identical axes

How can various graphs with identical axes be obtained? Show how this can be done by graphing the sorting time for the three procedures considered in section 10.4.1 above in three separate plots in the same graph window.

10.4.5 Providing a single legend for multiple plots

Suppose there were two sorting methods for each of the three situations described in10.4.1 and 10.4.4 above. How can the three graphs be provided with a single legend without the legend appearing in one of the graphs? Explain in detail.

10.4.6 Changing the plotting character: common plotting characters in R

Note the use of graphical parameters pch and mkh. What plotting characters are available? Study the help file of par() and points(). Study the plotting characters displayed in Figure 10.5 and the code used to produce the figure. How can plotting characters be made to appear in legends?

plot (x = rep(1:10, 2), y = rep (c(1,2), c(10,10)), pch = 0:19, cex = 2,
      pty = "p", ylim = c(0,3), xlab = "", ylab = "", xaxt = "n", yaxt = "n")

Figure 10.5: Some common plotting characters available in R.

10.4.7 Changing the colour in plots

The graphical parameter col allows the user to specify the colour(s) in number format as given in Figure 10.7. The full list of named colours can be obtained with the command colors() in the Console.

Alternatively, the colour can be specified by hue, saturation and value with hsv (h = , s = , v = ), hue, chroma and luminance with hcl (h = , c = , l = ) or red, green and blue with rgb (red = , green = , blue = ). The rgb() function has an argument maxColorValue with default value 1 which indicates the range known as the gamma-compressed values. Typically, the red, green and blue values range between 0 and 255 or video display or 8-bit graphics. To select a specific shade of light blue, the following command can be used:

plot (ldeaths, col = rgb (red = 167, green = 227, blue = 227,
                          maxColorValue = 255))

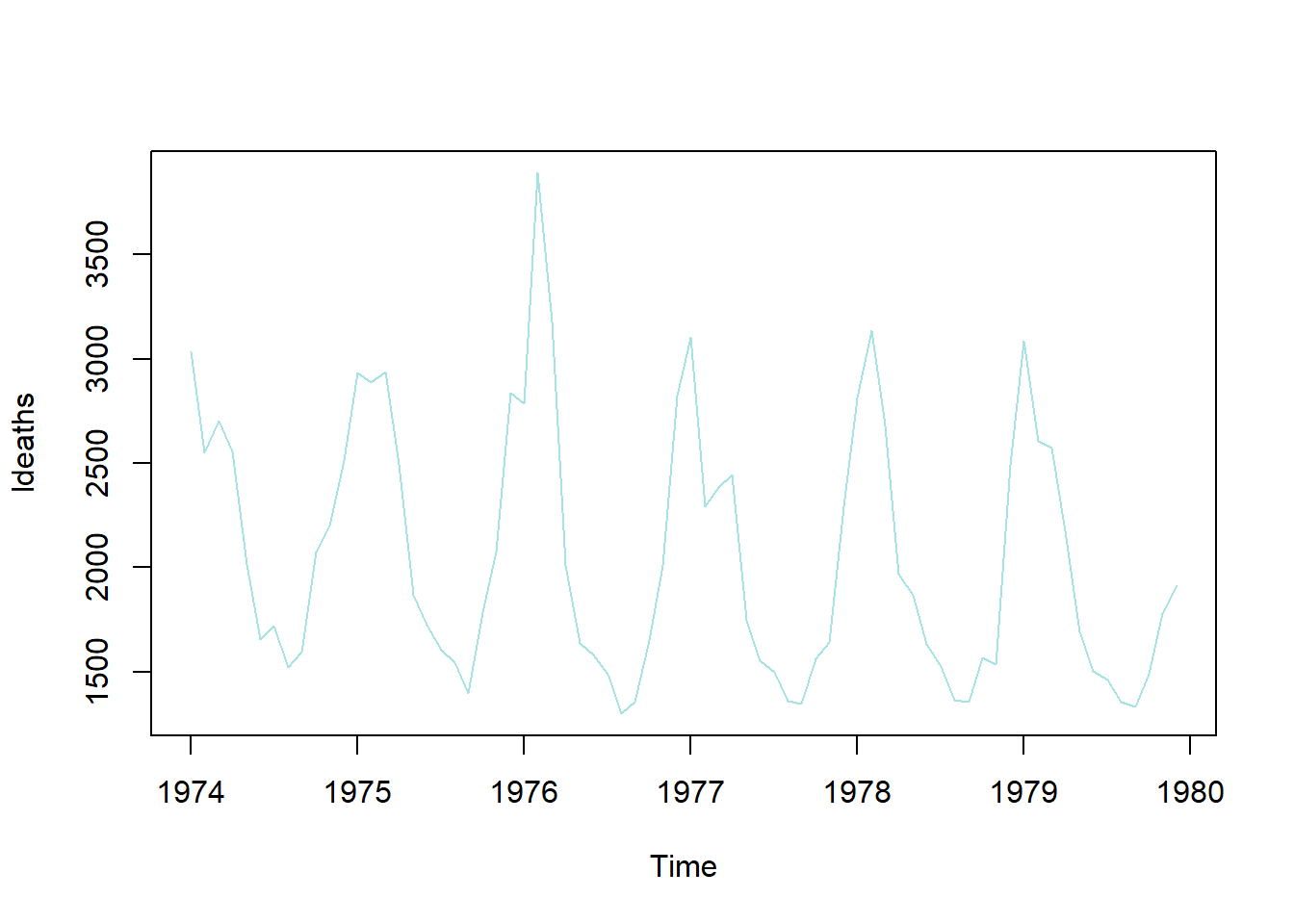

Figure 10.6: Colour selection with rgb().

The output of the rgb() function is in the hexidemical colour number format, e.g. “#A7E3E3”. The function col2rgb() accepts a colour name, hexadecimal colour number format or colour number and provides the red, green and blue values in the 0 to 255 range.

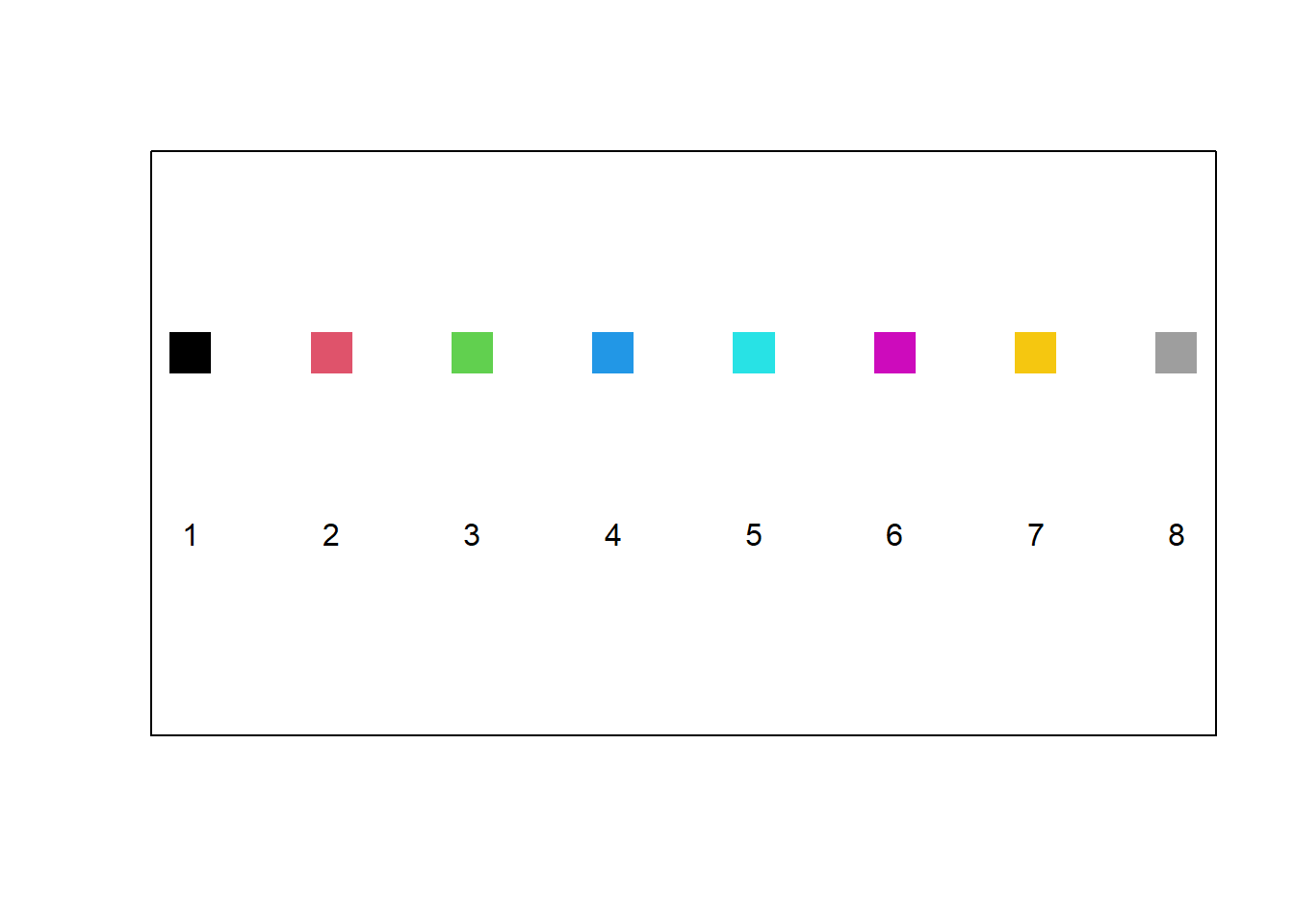

Figure 10.7: The default colour palette available in R.

A sequence of \(n\) colours can be generated with the function colorRampPalette(). As an example, the colour vector used for plotting in Figure 10.8 were generated with the call colorRampPalette (c ("red", "green", "white", "gold"))(20). Study how the following instructions generate colour sequences: rainbow(), heat.colors(), terrain.colors(), topo.colors(), cm.colors().

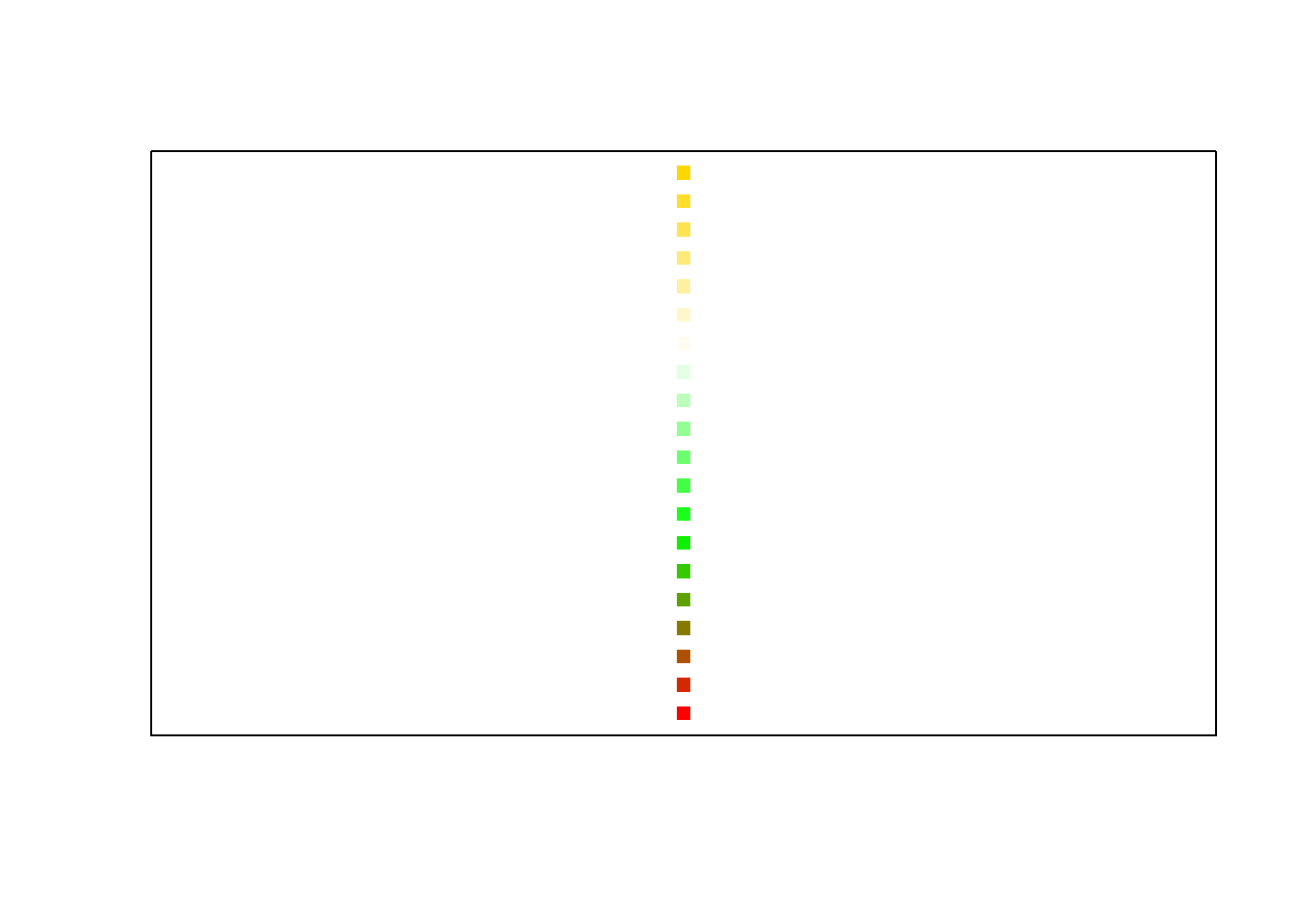

Figure 10.8: User specified colour sequence with colorRampPalette().

10.4.8 Logarithmic axes

The log() function and the log argument of the plot() function are useful in this regard. The log argument of the plot() function can be specified as log="x"; or log="y"; or log="xy" depending on whether the x-axis, the y-axis, or both axes should be plotted logarithmically.

10.4.9 Graphs with character strings as the ‘scale’ on the axis

Figure 10.9 illustrates how user defined character strings can appear as calibrations on an axis. Furthermore, this figure illustrates several techniques to fine-tune plots. Study the code resulting in Figure 10.9 in detail.

my.func <- function()
{ old.state <- par(no.readonly = TRUE)
  on.exit (par (old.state))
  area <- state.x77[, "Area"]
  income <- state.x77[, "Income"]
  area.grp <- cut(area, c(0, quantile (area, c(1/3, 2/3, 1))),
                  labels = c("Small", "Medium", "Large"))
  income.grp <- cut(income, c(0, quantile (income, c(1/2, 1))),
                    labels = c("Below Median", "Above Median"))
  mns <- tapply(state.x77[, "Illiteracy"], list(area.grp, income.grp), mean)
  par(mfrow = c(1, 2))
  plot(c(0.8, 3.2), range(mns), type = "n", xaxt = "n", xlab = "Area Group",
       ylab ="Mean Illiteracy", sub = "Function plot() used")
  axis(side = 1, at = 1:3, labels = levels(area.grp))
  lines(1:3, mns[, 1])
  lines(1:3, mns[, 2], lty = 2)
  par(usr = c(0, 1, 0, 1))
  legend(0.56, 0.96, lty = c(1,2), legend = levels(income.grp), cex= 0.5)
  text(0.63, 0.98, adj = 0, "Income Group", cex = 0.5)
    interaction.plot(area.grp, income.grp, state.x77[,"Illiteracy"],
                     xlab = "Area Group", ylab = "Mean Illiteracy",
                     sub = "Interaction.plot used", lty = 1:2, xtick = TRUE,
                     legend = FALSE)
  par(mfrow = c(1,1))
  par(new = T)
  plot(1:10, 1:10, type="n", xlab="", ylab="",axes = FALSE)
  title(main = "Illiteracy vs Size for States grouped by Income")
}
my.func ()

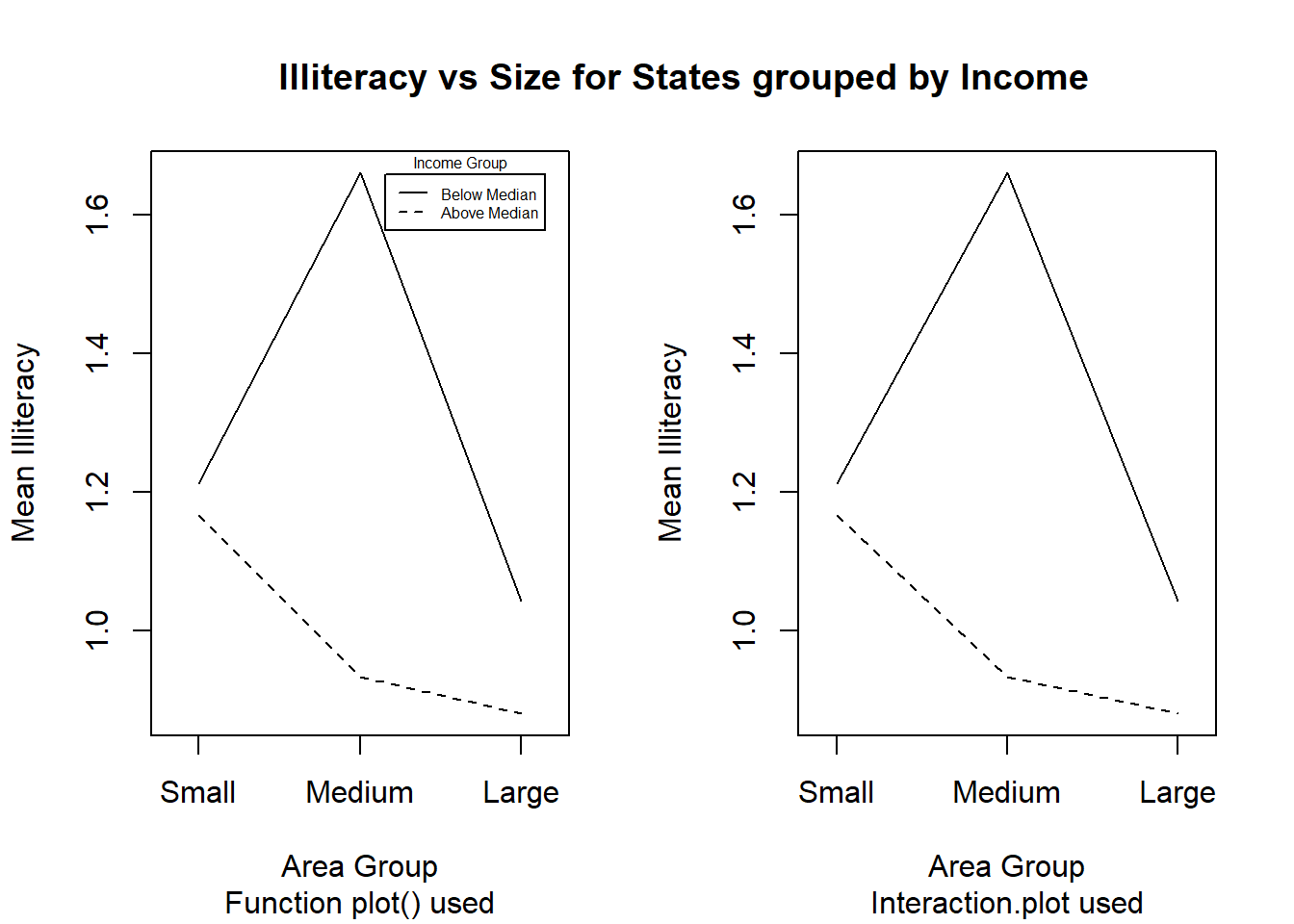

Figure 10.9: Figures with character strings as axis calibrations and other enhancements to plots.

10.4.10 Customizing bar charts and histograms

1. How can every bar in a bar chart be represented in a different colour and be given separate headings?

2. How can only a line graph without any colours be obtained?

3. How can a probability density function be superimposed on a histogram?

4. How can bar charts be provided with user-defined axes?

Use the Cars93 data set to answer the above four questions by constructing a figure similar to the one shown in Figure 10.10. Note: In the Mean MPG plot not all car types are used. If a factor variable is subsetted the original levels will be kept although some of them might not occurr. Hence it might be necessary to create a new factor variable with only the levels that are needed by using factor().

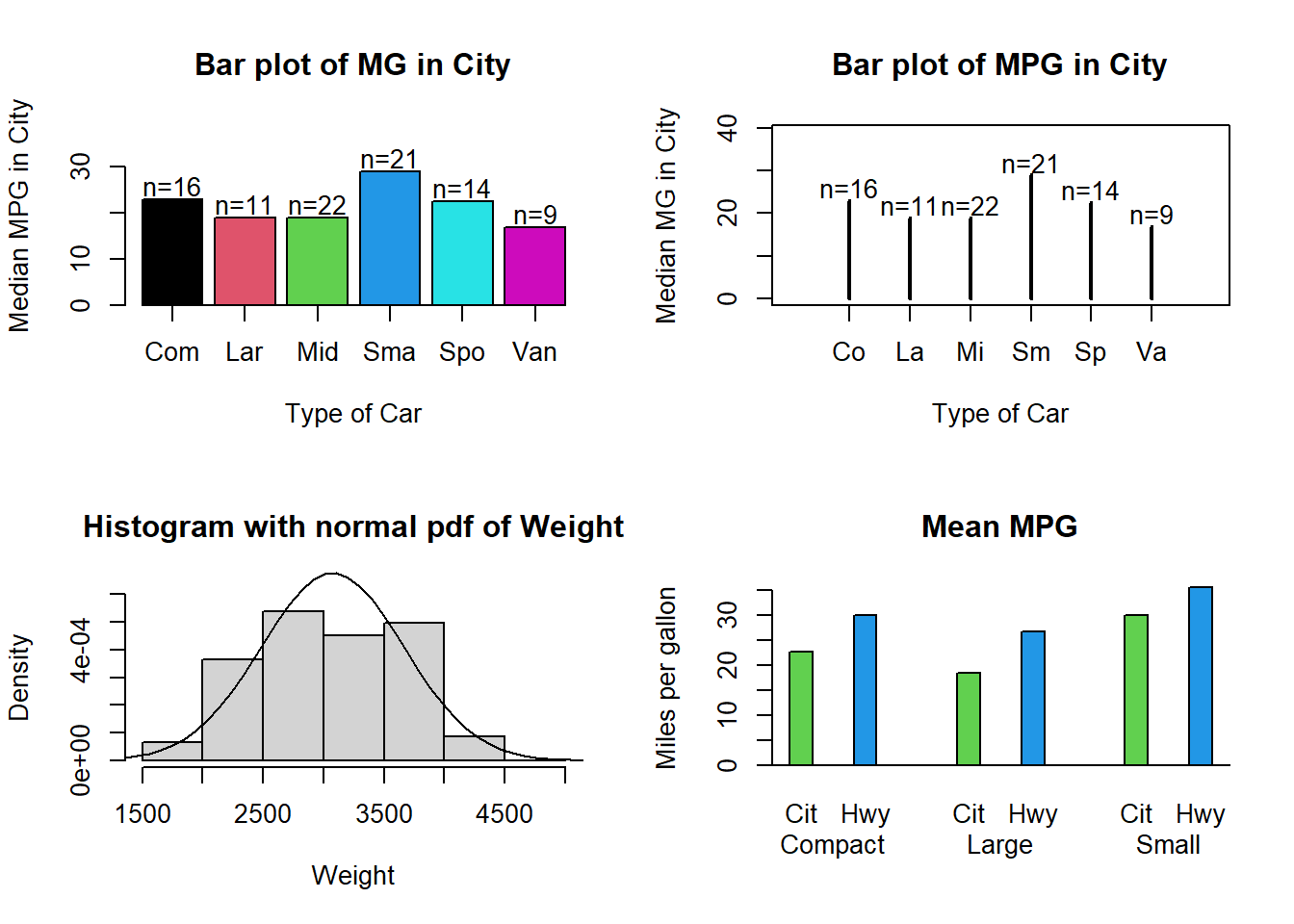

Figure 10.10: Enhanced bar charts and histograms.

10.4.11 Three-dimensional graphical displays

1. Study how the function persp() works.

2. Work through the example code that creates Figure 10.11. Apart from the arrow that points to the maximum, different colours must be used to highlight the different aspects of the graph.

3. Provide horizontally and vertically rotated views of the 3D plot.

my.func <- function ()
{ x <- seq(-10, 10, length= 30)
  y <- x
  ff <- function(x,y) { r <- sqrt(x^2+y^2); 10 * sin(r)/r }
  z <- outer(x, y, ff)
  z[is.na(z)] <- 1
  op <- par(bg = "white")
#  persp(x, y, z, theta = 30, phi = 30, expand = 0.5, col = "lightblue")
  res <- persp(x, y, z, theta = 30, phi = 30, expand = 0.5, col = "lightblue",
               ltheta = 120, shade = 0.75, ticktype = "detailed", xlab = "X",
               ylab = "Y", zlab = "Z" )
  print (round(res, 3))

  #--- Add to existing persp plot : ---
  #--- Function trans3d() -------------
    trans3d <- function(x,y,z, pmat)
    {
      tr <- cbind(x,y,z,1) %*% pmat
    list(x = tr[,1]/tr[,4], y = tr[,2]/tr[,4])
  }
  # ----------------------------------
  z1 <- ff(1e-10, 1e-10)
  transfrm <- trans3d (c(0,-2.5), c(0,5), c(z1,z1), res)
  arrows(transfrm$x[1], transfrm$y[1], transfrm$x[2], transfrm$y[2],
         length = 0.1, code = 1)
  text(transfrm$x[2], transfrm$y[2]+0.02, "Maximum occurs here")
  return(z1)
}
my.func()

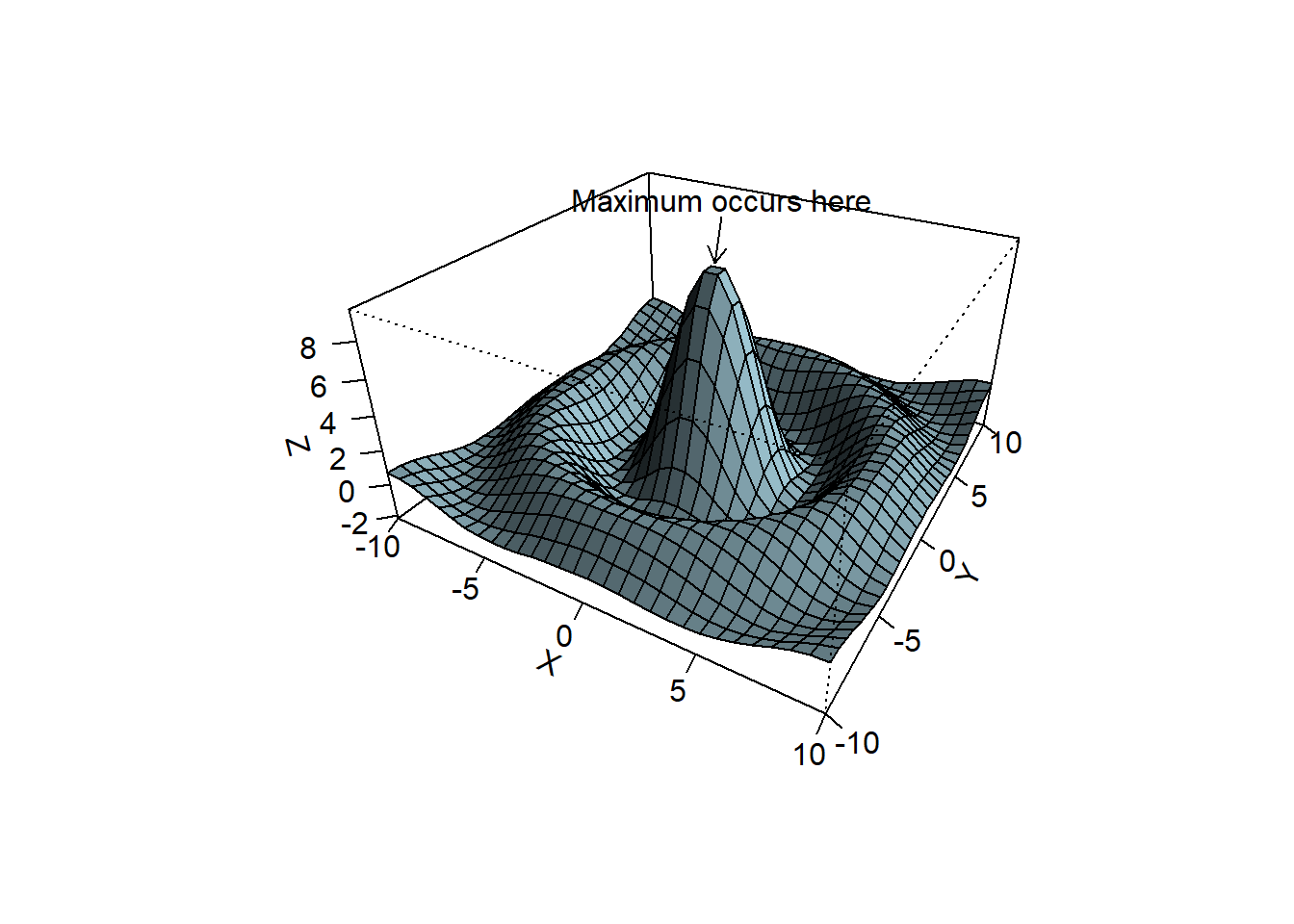

Figure 10.11: Annotated 3D perspective plot.

#>       [,1]   [,2]   [,3]   [,4]
#> [1,] 0.087 -0.025  0.043 -0.043
#> [2,] 0.050  0.043 -0.075  0.075
#> [3,] 0.000  0.074  0.042 -0.042
#> [4,] 0.000 -0.273 -2.890  3.890
#> [1] 10

10.4.12 Diagrams

Use R to draw a simple flow diagram. The diagram must contain at least one rectangle, one square, one circle and one triangle. Furthermore, there must be straight and curved lines as well as text describing the different elements. Hint: Study how the functions arrows(), lines(), text() and symbols() work as discussed in their respective help facilities.

10.4.13 Annotating graphics with special symbols

Construct a graph of a \(normal(0, 1)\) density function. Give as a title to the plot the expression “Density of a normal random variable with \(\mu = 0\) and \(\sigma^2 = 1\).” Hint: Consult the help file of plotmath(). Within the plot draw an arrow to the density and label it \(\frac{1}{\sqrt{2 \pi}} e^{-\frac{1}{2}x^2}\).

10.5 Quantile plots

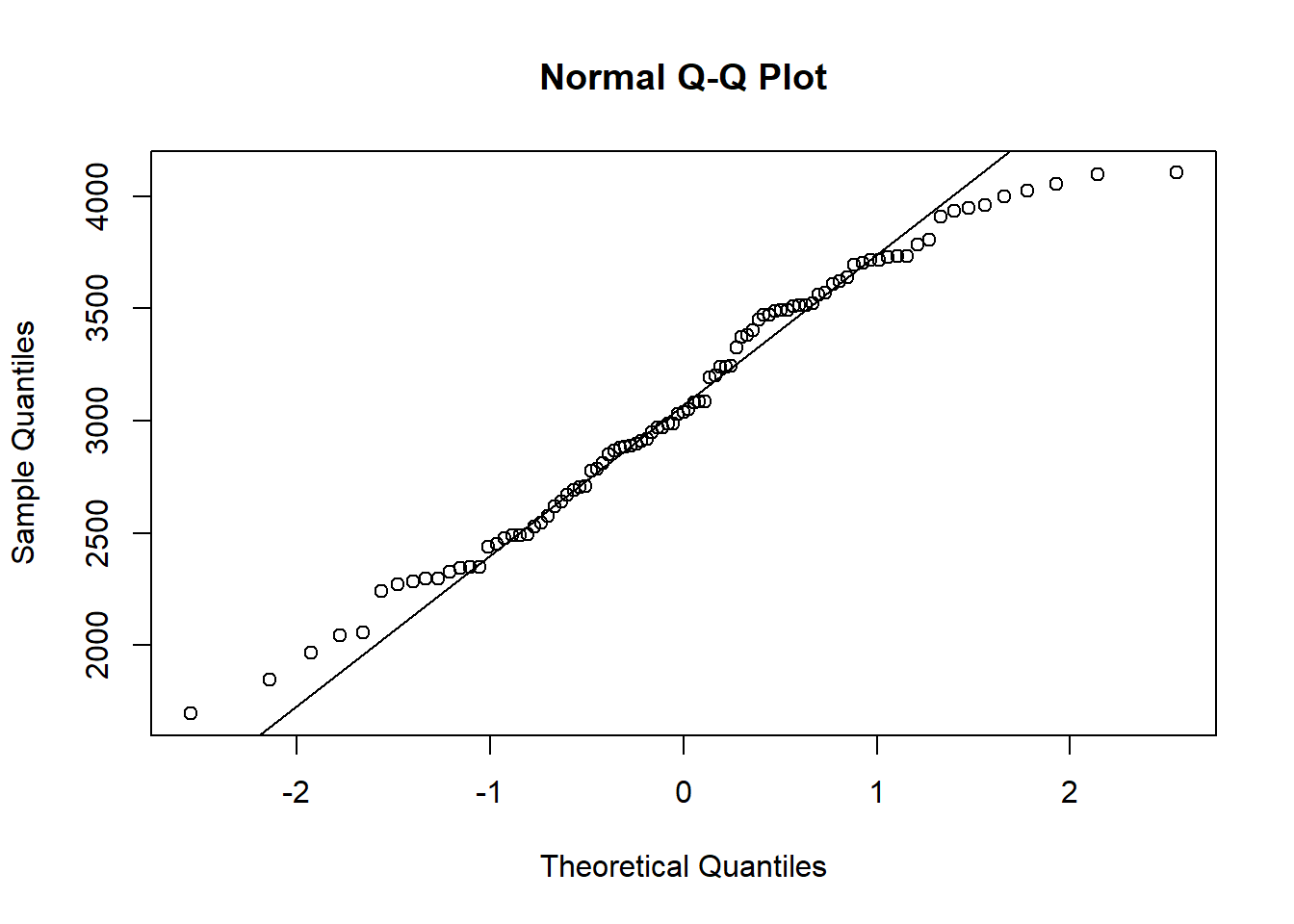

Consider the histogram of weight in Figure 10.10. Does this variable follow a normal distribution? A normal quantile plot, shows the observations vs the corresponding quantiles of a standard normal distribution. If the observations correspond to a normal distribution, this will approximately form a straight line. Use the qqline() function to add a straing line to the plot.

qqnorm (Cars93$Weight)
qqline (Cars93$Weight)

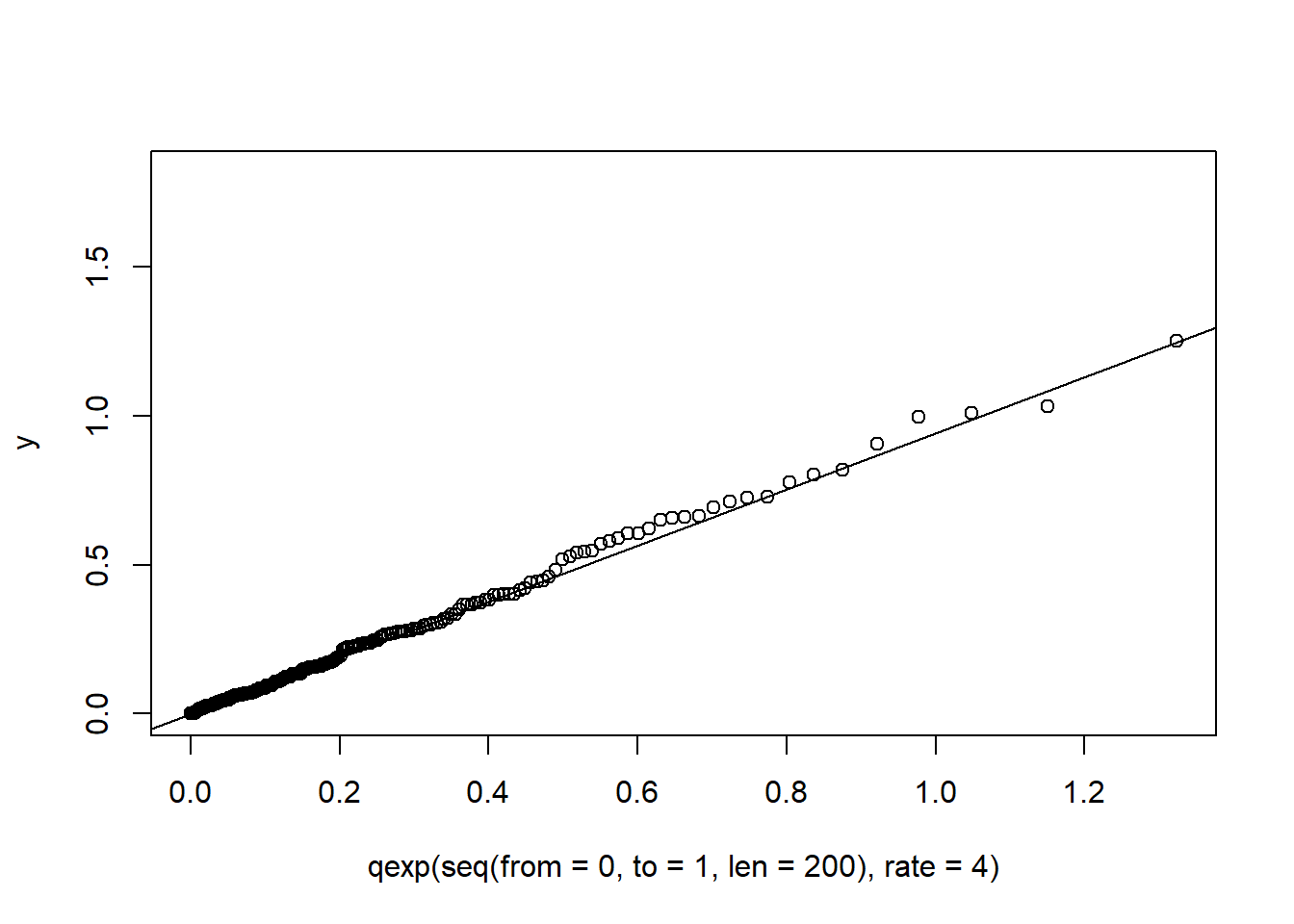

In a similar manner, quantile-quantile plots for other probability distributions can be constructed with the function qqplot().

y <- rexp(200, rate=4)
qqplot (qexp (seq (from = 0, to = 1, len = 200), rate=4), y)
qqline(y, distribution = function(p) qexp(p, rate=4))

10.6 Estimating a density

The histograms in Figure 10.12 show 200 observations generated, 100 from a \(normal (9,2^2)\) and 100 from a \(normal (13,1)\) distribution. Histograms are very sensitive to the choice of the number of bins and the starting values of the bins. The wider bins do not show any evidence of a bimodal distribution. Using the smaller bins, the location of the bins can suggest either a bimodal or trimodal distribution.

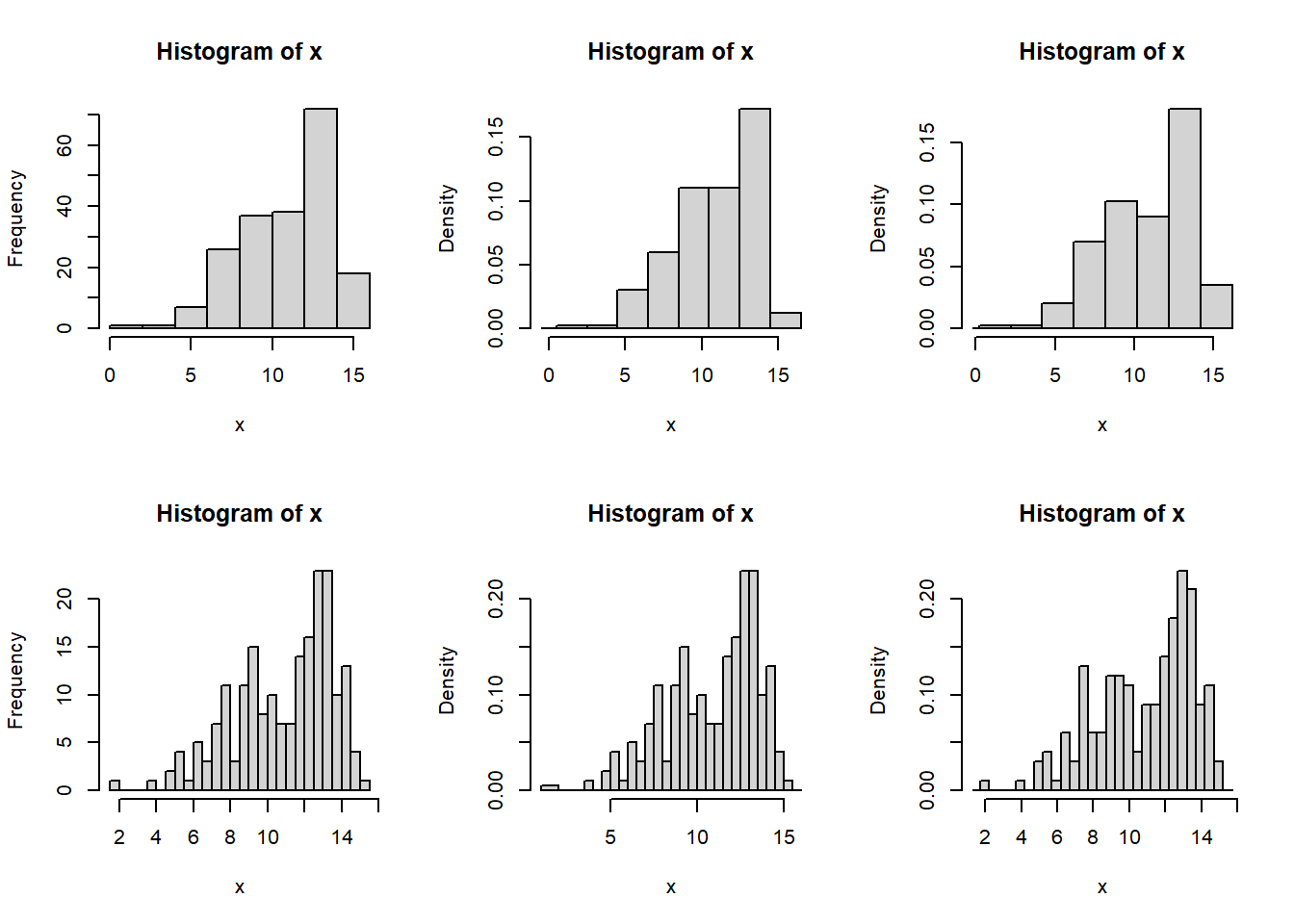

Figure 10.12: Histograms with different bin sizes and bin locations of the same normal mixture data set.

One possible solution to the bin selection problem for histograms is the Average Shifted Histogram (ASH). First we define a density histogram. Since we aim to estimate the density (which integrates to one) a density histogram is normalised such that the area in the histogram is equal to one.

Consider a set of bins \(B_k=[b_k, b_{(k+1)})\) with fixed bin width \(λ=b_{(k+1)}-b_k\) \(∀ k\), then the density histogram is defined as \(\hat{f} = \frac{1}{N\lambda} \sum_{i=1}^{N}{I_{[b_k,b_{k+1})}(x_i)}\) for \(x∈B_k\). Consider a collection of \(m\) histograms \(\hat{f}_1, \hat{f}_2, \dots, \hat{f}_m\) each with bin width \(h\), but with respective bin origins \(b_{01}=0, b_{02}=\frac{h}{m}, b_{03}=\frac{2h}{m}, \dots, b_{0m}=\frac{(m-1)h}{m}\). The average shifted histogram is defined as \(\hat{f}_{ASH} = \frac{1}{m} \sum_{i=1}^{m}{\hat{f}_i}\).

ASH <- function (x, b0 = 1, bk = 15, h = 0.5, m = 5) # h=lambda
{
  Bvec <- as.vector ((bk - b0)/h+2, "list")
  fhat <- matrix (nrow = m, ncol = (bk-b0)/h+1)
  for (i in 1:m)
    { Bvec[[i]] <- seq (from = b0+(i-1)*h/m, to = bk+h+(i-1)*h/m, by = h)
      fhat[i,] <- hist (x, breaks = Bvec[[i]], right = T, plot = F)$density
    }
  fhat.ASH <- apply(fhat, 2, mean)
  x.vec <- seq (from = b0, to = bk+h,length = length(fhat.ASH))
  plot (x.vec, fhat.ASH, type="l")
}
ASH(x, m=20, h=1, b0=-2, bk=18)

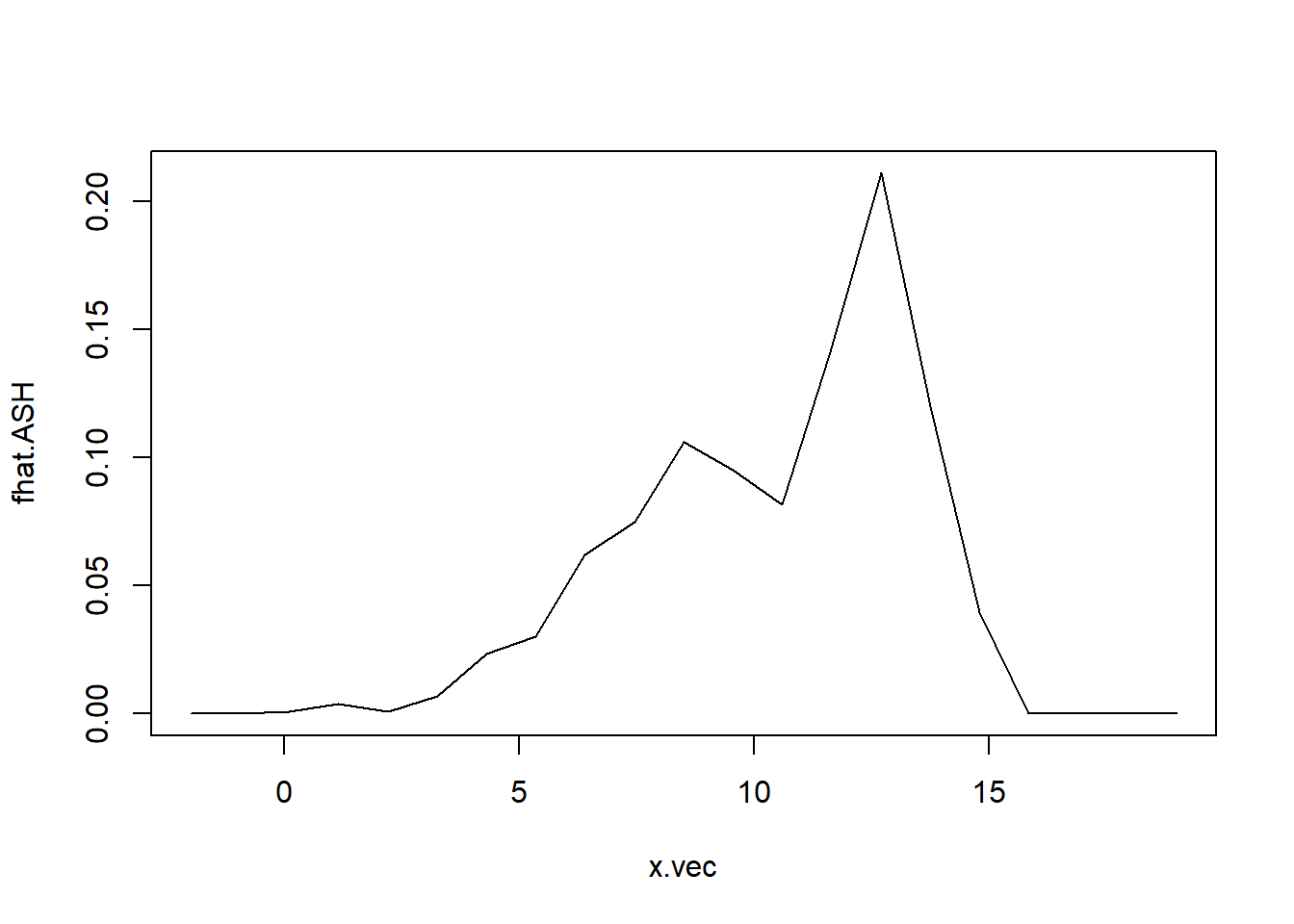

Figure 10.13: Average shifted histogram of normal mixture data.

The ASH is given in Figure 10.13 A more sophisticated method for estimating a density is with a kernel density estimate. The density histograms is replaced by a smooth kernel function, leading to a smoother estimate. The R function density() provides a variety of kernels. Using the default kernel, a Gaussian distribution, the kernel density estimate is given in Figure 10.14.

plot(density(x), type="l")

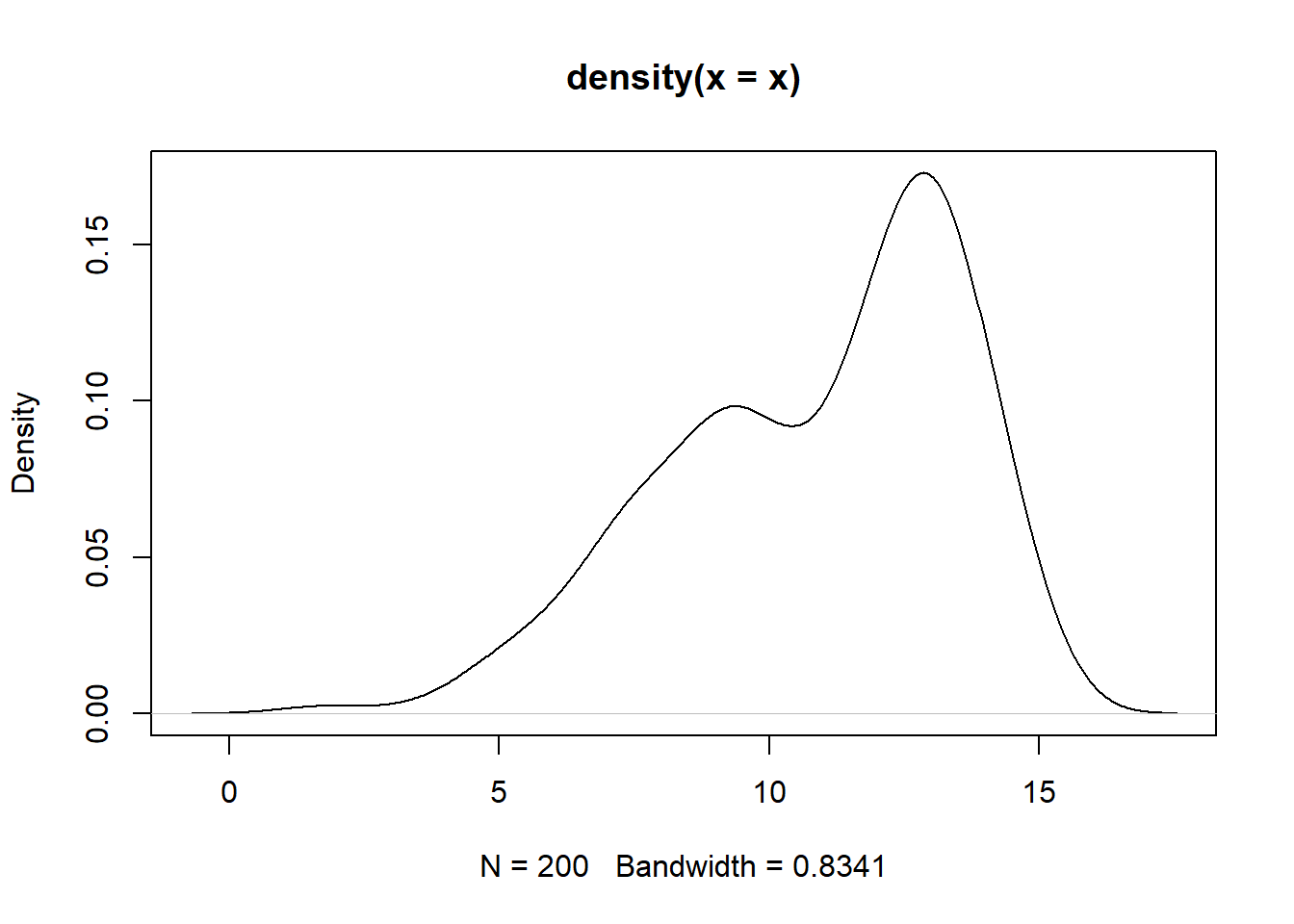

Figure 10.14: Guassian kernel density estimate of the normal mixture data.

Experiment with different kernel function and different choices of bandwidth (argument bw) for controlling the amount of smoothing.

10.7 A coplot with two conditioning variables

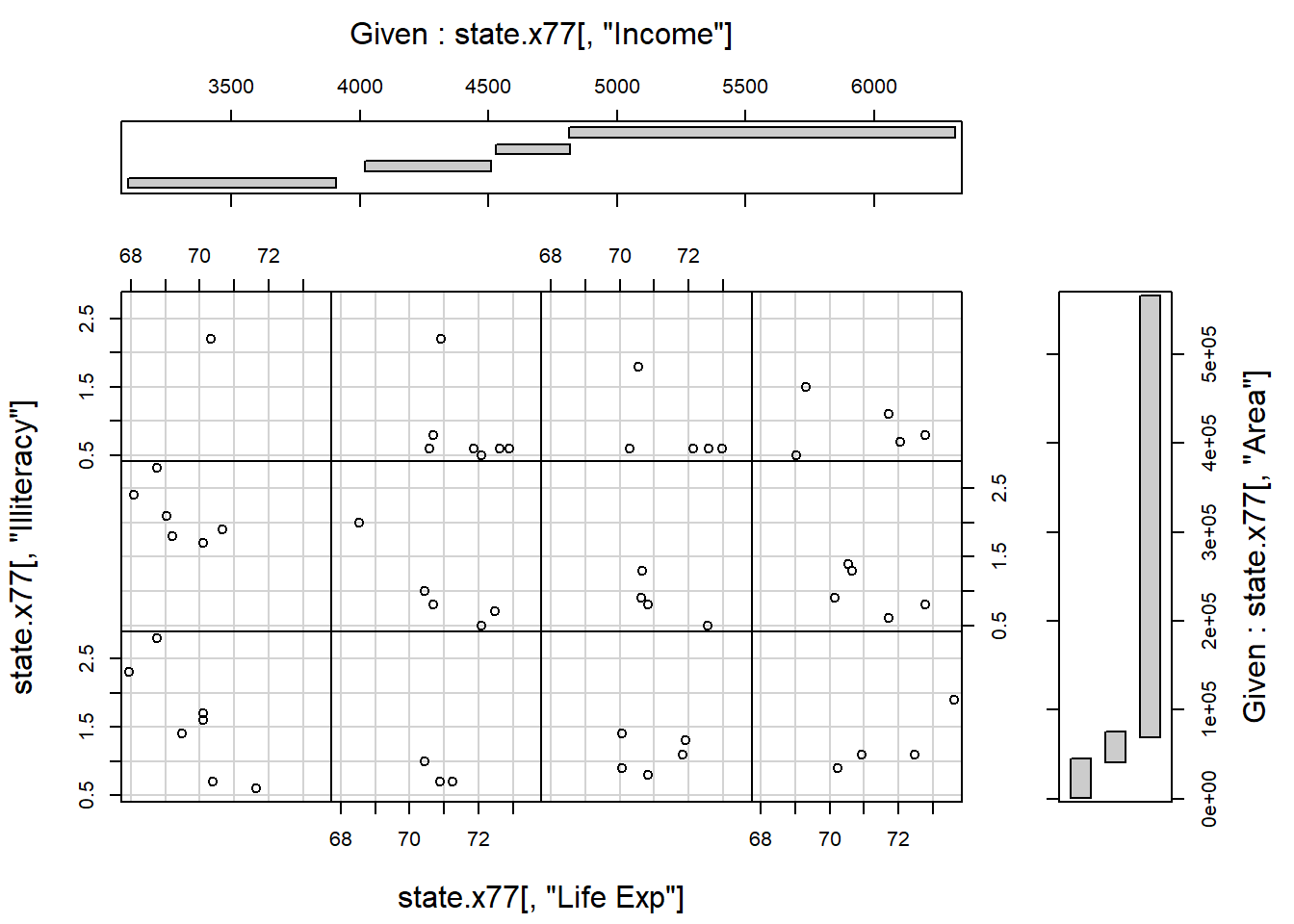

Consider the state.x77 data set. In section 4.2 the coplot() function was used to construct a plot of Illiteracy and Area conditional on Income. This can be expanded to two conditions, for example plotting Illiteracy and Life expectancy conditional on Income and Area. Interpret. The number of panels and overlap of given intervals can be controlled with the arguments number and overlap.

coplot (state.x77 [,"Illiteracy"] ~ state.x77 [,"Life Exp"] |
                                   state.x77 [,"Income"] + state.x77 [,"Area"],
                                number = c(4,3), overlap=c(0,0.2))

10.8 Exact distances in graphics

1. Obtain a random sample of size 50 from a bivariate normal distribution with \(n(50,20)\) marginals and a correlation coefficient of 0.90.

• Present the data in the form of a scatterplot.

• Next, write an R function to perform the following task on the scatterplot:

  • Choose an arbitrary point and label it “A”.

  • Draw a line connecting A to a circle with centre exactly 25mm away from A. The diameter of the circle must be exactly 40mm.

  • Label the centre point of the circle with a “B”.

  • Use a ruler to check the length of the connecting line and diameter of the circle.

• Obtain a print copy of the graph and check the lengths again.Hint: Study the help file of function par().

2. Use R to make a ruler calibrated in centimetres from zero to 15 cms.

10.9 Multiple graphics windows in R

1. Study how the following instructions work to control multiple graphics windows in R:

dev.new()
dev.list()
dev.set()
dev.next()
dev.cur()
dev.copy()
dev.prev()
dev.off()
dev.ask()
graphics.off()

2. Study the information that R gives via the execution of help.search ("graph").

10.10 More complex layouts

Study the graphical requirements needed for constructing Figure 10.15 and how to code these requirements.

my.func <- function ()
{ old.state <- par (no.readonly = TRUE)
 on.exit (par (old.state))

 par (omd = c(0, 0.66, 0, 1), mfcol = c(2, 1))
 ts.plot (mdeaths, xlab = "Year", ylab = "Male deaths")
 ts.plot (fdeaths, xlab = "Year", ylab = "Female deaths")

 par (omd = c(0.66, 1, 0, 1), mfcol = c(2, 1), mfg = c(1, 1), new=TRUE)
 hist (mdeaths, xlab = "Male deaths", ylab = "Frequency", main = "")
 hist (fdeaths, xlab = "Female deaths", ylab = "Frequency", main= "")

 par (omd = c(0, 1, 0, 1), mfcol = c(1, 1))
 title ("Line plot and Histogram for male deaths")

 par(omd = c(0, 1, 0, 0.5), mfcol = c(1, 1))
 title ("Line plot and Histogram for female deaths")
}
my.func ()

Figure 10.15: A complex graphics layout.

10.11 Dynamic 3D graphics in R

• Study the R package rgl.

• Attach library rgl to the search path and then issue the R command example (plot3d). Use the mouse buttons to rotate and zoom the rgl graph.

• Next, issue the R command example (surface3d) and interactively explore the 3D figure.

10.12 Animation

Study the following two functions in detail:

anim1 <- function (sleep = 0.05)
 { # Press ESC to end animation
   n <- 40
   t <- seq (0, 2*pi, length = n)
   x <- cos(t)
   y <- sin(t)
   for (i in 1:n)
   {  plot.new ()
      plot.window (c(-1, 1), c(-1, 1), asp = 1)
      points (x[i], y[i], pch = 16, cex = 2)
      Sys.sleep(sleep)
      #Sys.sleep() suspends execution for a given number of seconds
    }
   Recall(sleep)
 }

anim2 <- function (sleep = 0.01)
{ for (i in seq (from = 1, to = 3, by = 0.01))
  {  plot.new ()
     plot.window (c (1, 16), c(1, 16), asp = 1)
     arrows(2*i, 2*i, 4*i, 4*i)
     Sys.sleep(sleep)
  }
  Recall(sleep)
}

Write an R function to show a wheel with two spokes moving forward with adjustable speed.

10.13 Exercise

1. In many real life situations it is necessary to identify an object when only limited information is available. The following problem how such a problem can be empirically investigated.

The function persp() used for constructing Figure 10.11 requires a regular pattern of \(x\) and \(y\) coordinates. If such a pattern is not available it is necessary to interpolate e.g. with interp() (available in package akima) using the available values.

Use the function expand.grid() to create a grid of regularly spaced \(x\) and \(y\) values and evaluate the “sombrero” function of Figure 10.11 at each of these points.

Now use sample() to randomly sample points from that grid and then the interp() function to interpolate the values of z throughout the grid.

Finally, use persp() to construct a plot of the interpolated values.

What fraction of data is needed in the sample to get a good representation of the true shape of the data. Hint: since persp() does not accept NAs replace NAs with the minimum of the non-missing z values.

2. Use locator() and write a function to allow placing a legend with a pointing device anywhere on an existing plot.

3. Use the state.x77 data set to construct a scatterplot of Illiteracy as a function of Income. Now construct a second scatterplot of the same data but with the origin on the right-hand side of the x-axis. In order to complete this task it is necessary that the values on the x-axis increase from the left-hand side to the right-hand side.

4. Consider the following data

	Test 1	Test 2	Test 3	Test 4
Group A:	10	15	30	12
Group B:	125	130	148	115

Plot the data of the two groups in the form of two profiles on the same set of axes.
Plot the data against Test 1, Test 2, Test 3 and Test 4 on the x-axis. The scale of the data of Group A must appear on the y-axis on the left-hand side and that of Group B on the y-axis on the right-hand side. A detailed legend must be provided.

10.14 The package ggplot2

The package ggplot2 is based on the ideas of Wickham (2010) as described in the paper “A layered grammar of graphics” and makes use of the The Grammar of Graphics by Wilkenson (2005).

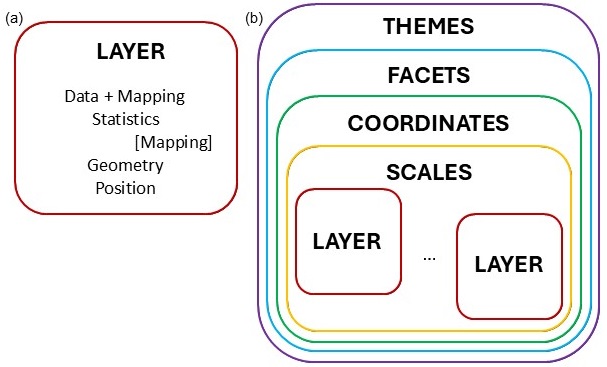

Figure 10.16: Layer structure of ggplot2 package.

In Figure 10.16(a) the components of a layer is depicted. The first essential component is the data to be represented in the graphic. Together with the data, there needs to be an aesthetic mapping, describing which variable is mapped to the x-direction, y-direction, the size, shape, colour, etc. The statistics component optionally transforms the data to quantities that needs to be plotted. Typically, the transformation is used to summarise the data. It is possible to map aesthetics to these new variables. The geometry defines how each aesthetic is displayed, as points, lines, boxplots, densities, histograms, etc. Each geometry can only display specific aesthetics, for example a point has position, colour, shape and size. Position adjustment is needed in cases where geometric elements overlap, for example using jitter in scatterplots or placing multiple bars stacked or side-by-side in a barplot.

A graphic can consist of several layers, as shown in Figure 10.16(b). According to the grammar of graphics, a scales component needs to be specified. The scales are common across layers and describe the mapping of the data to aesthetic attributes such as which colour is associated with which level of a categorical variable. One scale is needed for each aesthetic property used in the layers. In order to place the geometric objects on the plotting plane, a scale is needed. The most commonly used scale is the Cartesian axes, while others such as polar coordinates is also available.

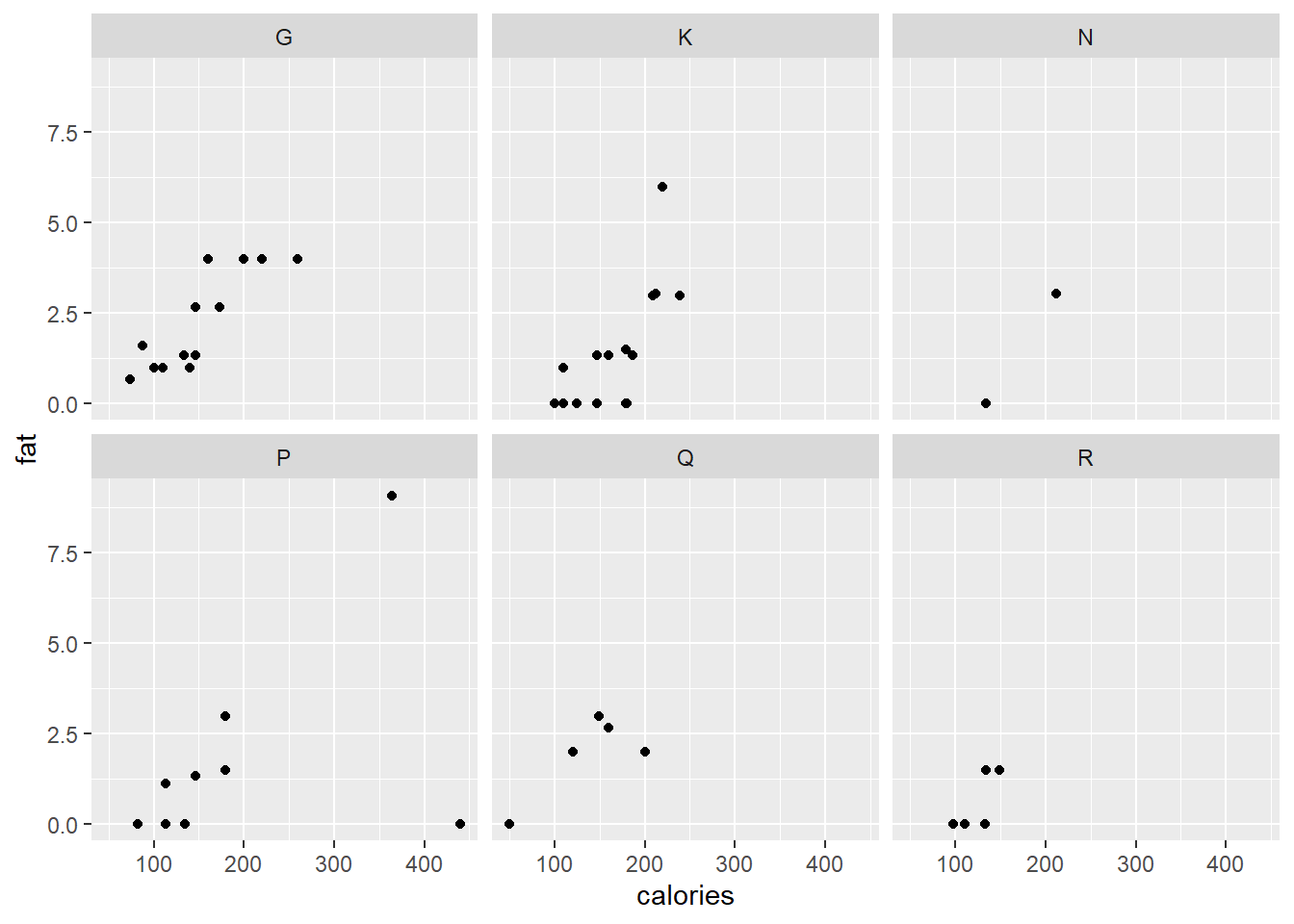

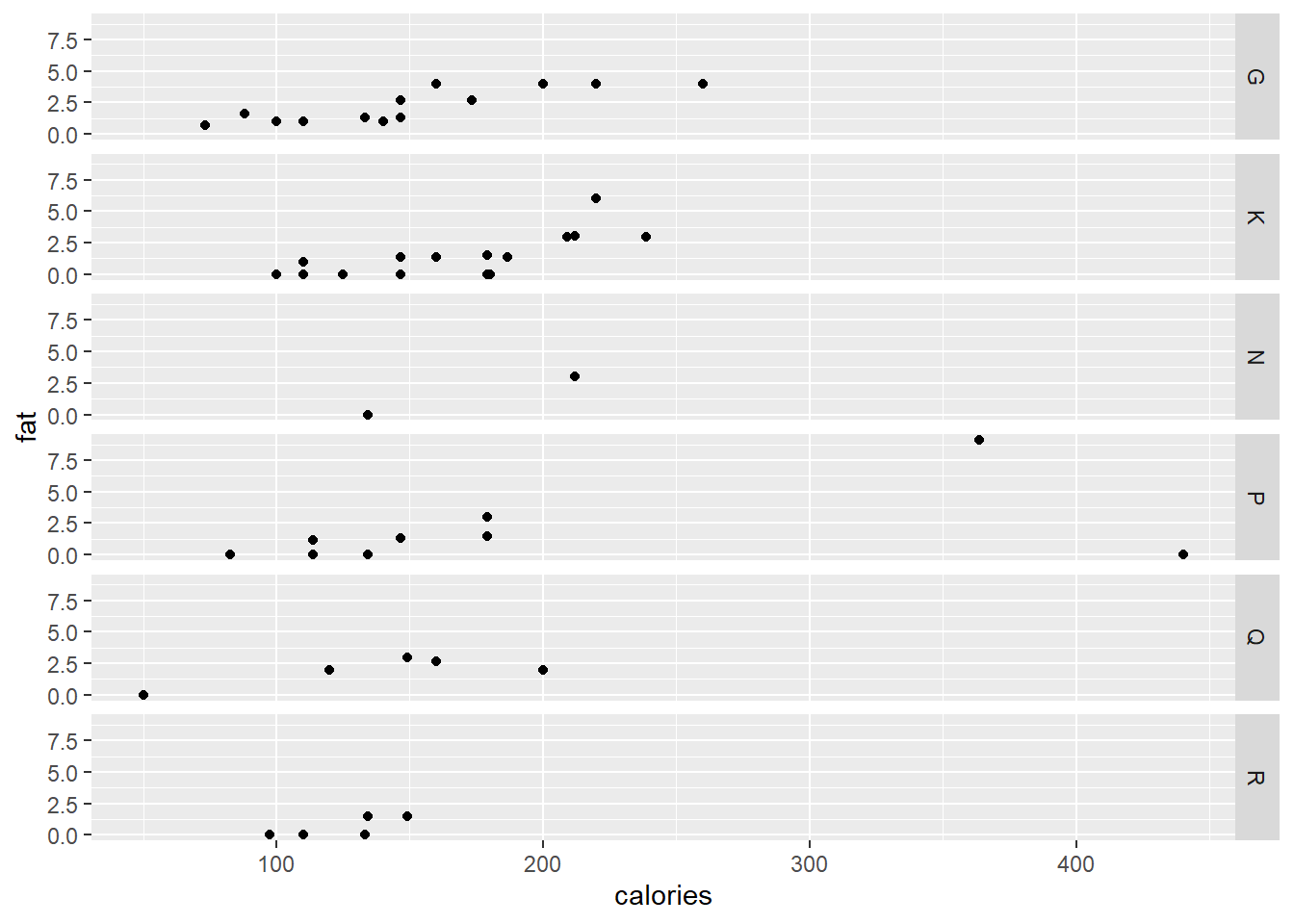

Faceting splits the data into small multiples of different subsets of the data set. With this component we identify the variable(s) for splitting and how the splitting should be arranged. Themes are not linked to the data but provide instructions on aspects such as titles, labels, fonts, background, gridlines, and legends.

The full specification of all the components in a ggplot, can be very cumbersome. Defaults are specified, for instance for each geometry there is a default statistic and for each statistic a default geometry. We can therefore build our plot stepwise, fine-tuning detailed aspects until the required graphic is obtained.

We will start with some simple plots and then build more complicated graphics. We will use the cereal tibble created from the UScereal data in package MASS (see section 9.12.4) for illustration.

library (MASS)
library (tidyverse)
#> ── Attaching core tidyverse packages ──── tidyverse 2.0.0 ──
#> ✔ dplyr     1.1.4     ✔ readr     2.1.5
#> ✔ forcats   1.0.0     ✔ stringr   1.5.1
#> ✔ ggplot2   3.5.2     ✔ tibble    3.3.0
#> ✔ lubridate 1.9.4     ✔ tidyr     1.3.1
#> ✔ purrr     1.1.0
#> ── Conflicts ────────────────────── tidyverse_conflicts() ──
#> ✖ dplyr::filter() masks stats::filter()
#> ✖ dplyr::lag()    masks stats::lag()
#> ✖ dplyr::select() masks MASS::select()
#> ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
cereal <- tibble (UScereal)

10.14.1 Barplot

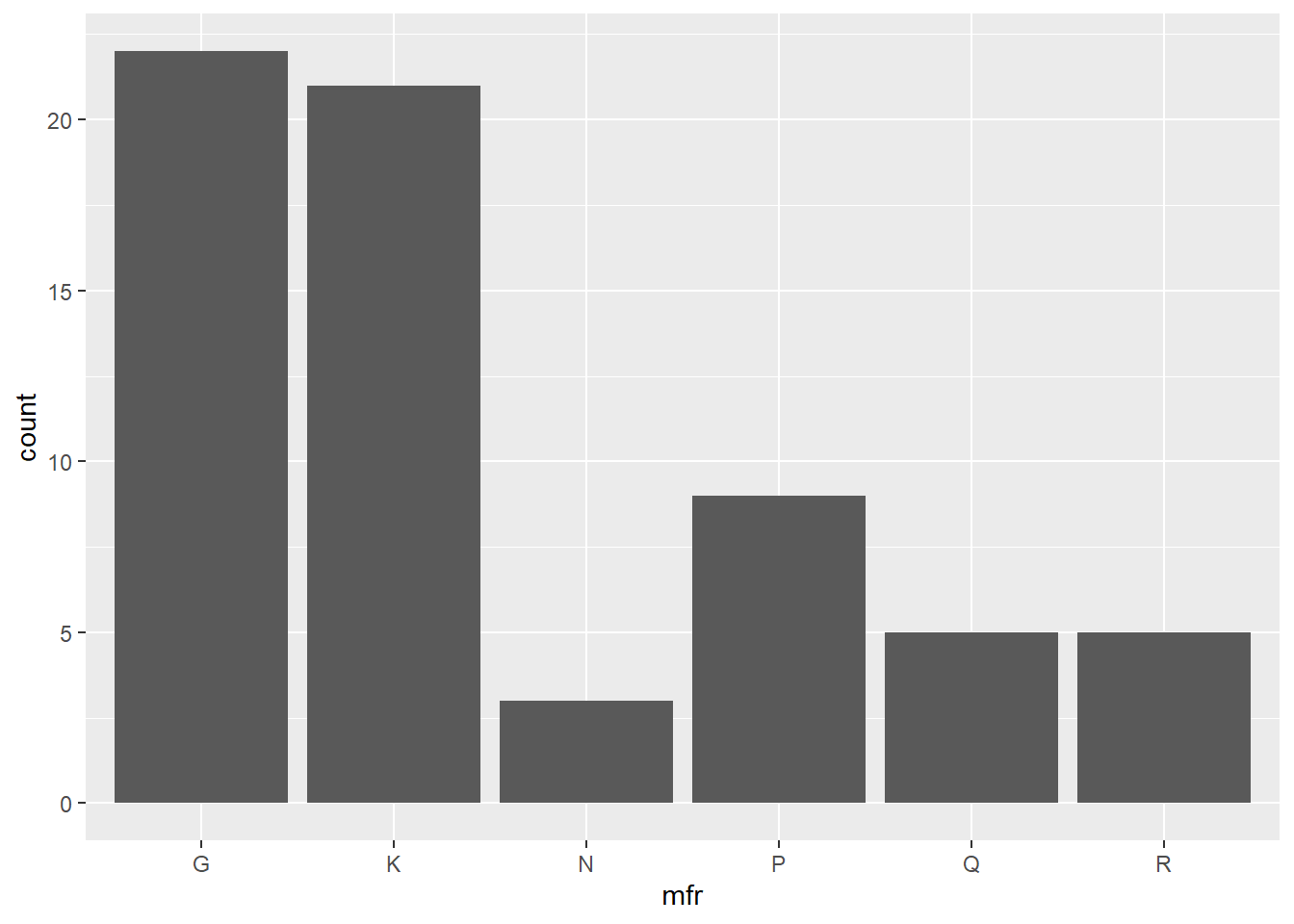

The command

ggplot(data = cereal,
       mapping = aes(x = mfr)) +
       geom_bar()

produces a simple barplot of the cereal data with mfr on the x-axis and counts of each level in the bars. No position adjustments are made, while the default colour for the bars is used to plot the complete data set on Cartesian axes with the default theme.

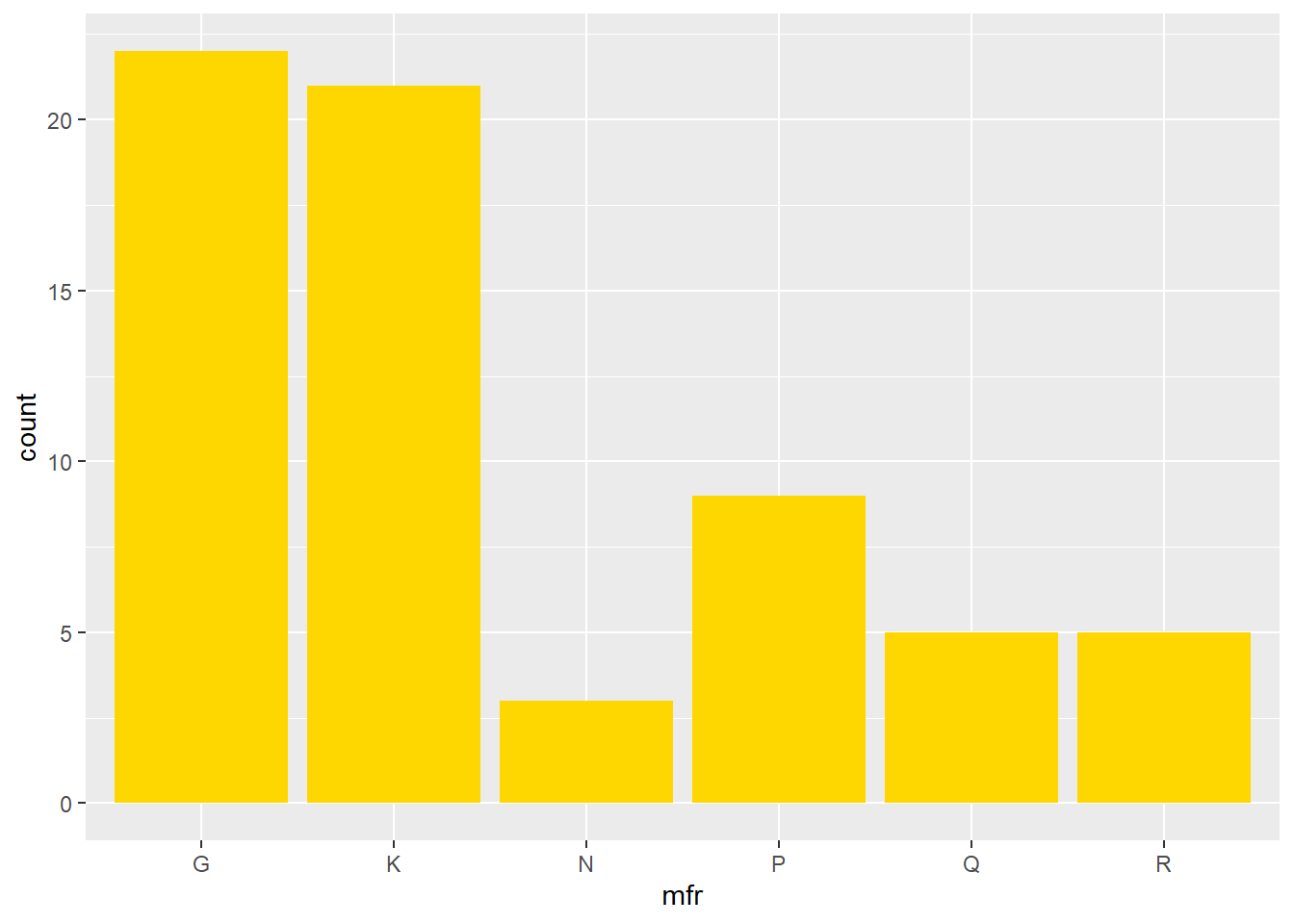

We can change the colour of the bars with the command

ggplot(data = cereal,
       mapping = aes(x = mfr)) +
       geom_bar(fill = "gold")

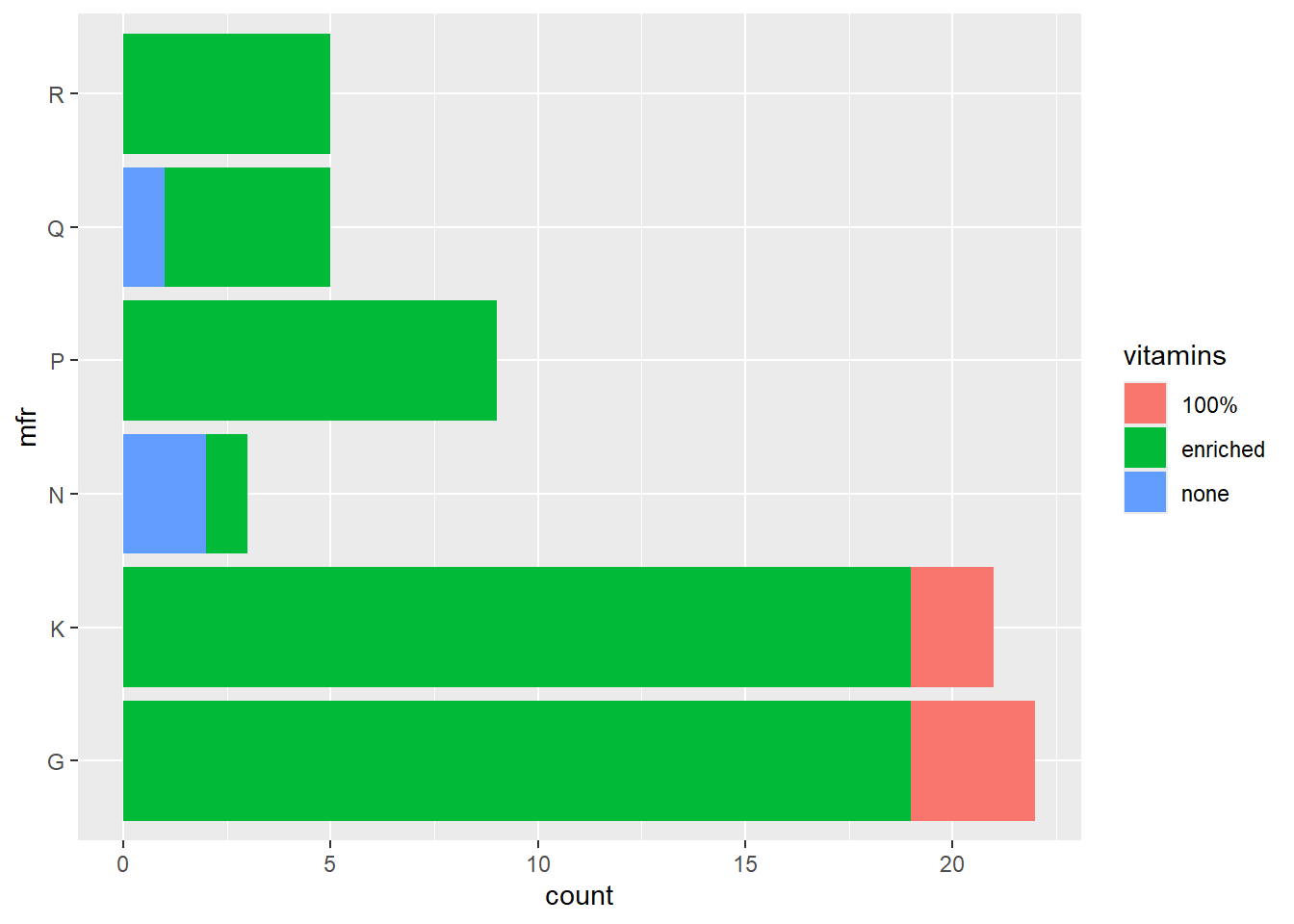

Now we add an aesthetic for the bars to be coloured according to the vitamin enrichment, while at the same time, changing the orientation. Note that in the previous example, the fill colour was specified outside of the function aes(), while here, it is specified as an aesthetic.

ggplot(data = cereal,
       mapping = aes(y = mfr, fill = vitamins)) +
       geom_bar()

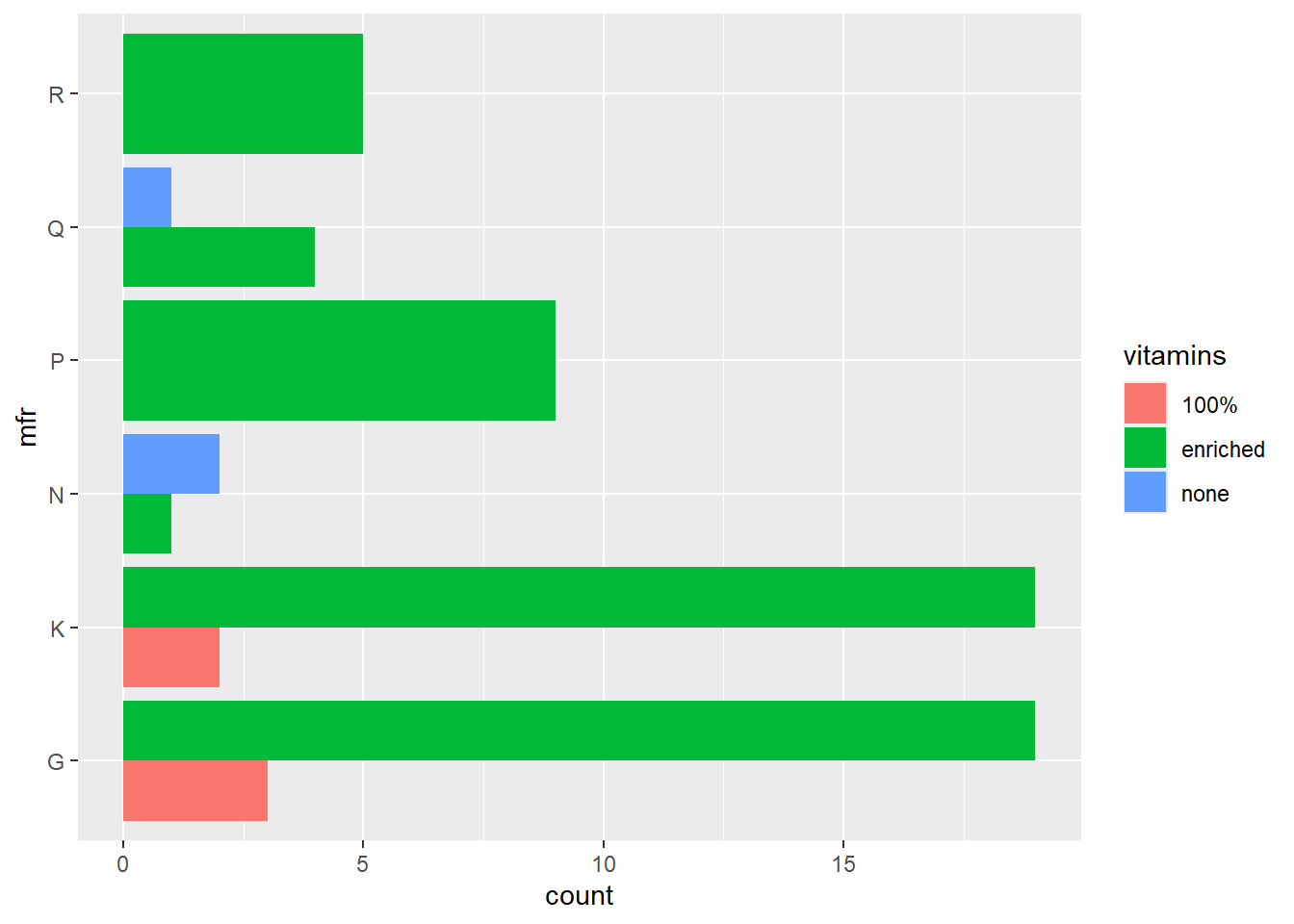

The default is to stack the bars. In order to position the bars side-by-side we use the function position_dodge().

ggplot(data = cereal,
       mapping = aes(y = mfr, fill = vitamins)) +
       geom_bar(position = position_dodge())

10.14.2 Scatterplot

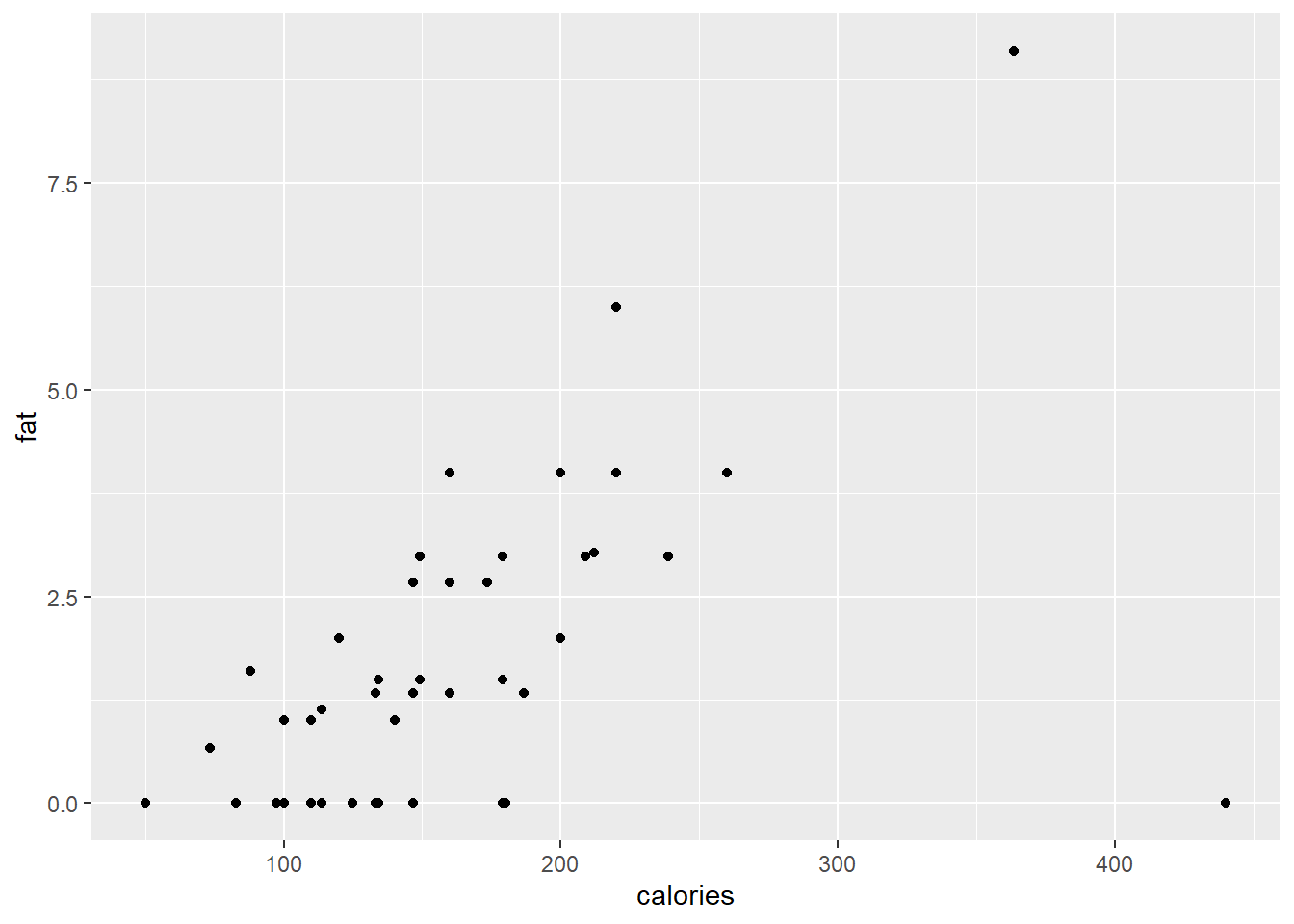

The simplest call to produce a scatterplot uses the identity statistical transformation with no position adjustment on the complete data set with default size, shape and colour of the plotting characters.

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point()

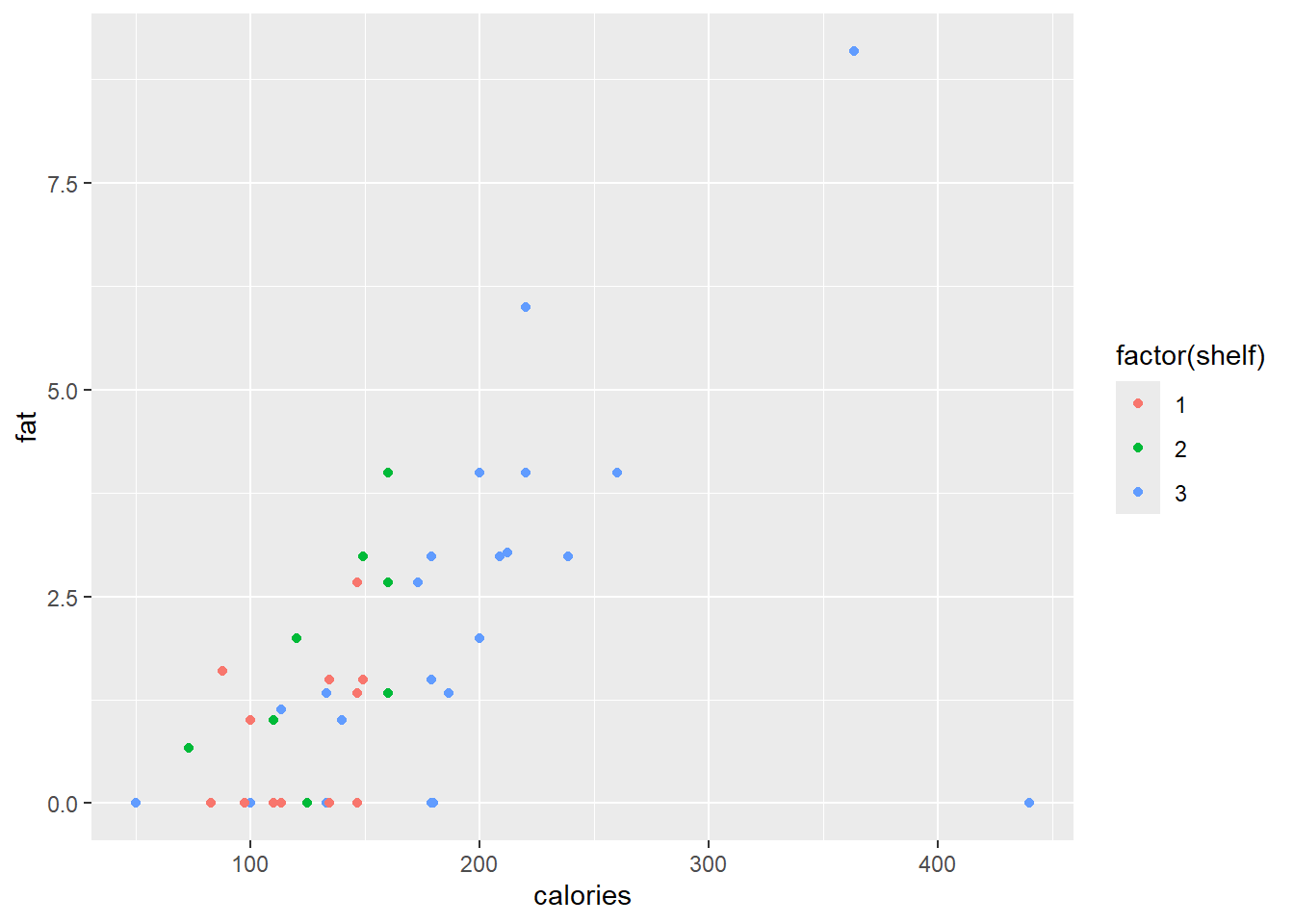

The point colours can be specified either according to a categorical variable, or a spectra based on a continuous variable.

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point(mapping = aes(colour = factor(shelf)))

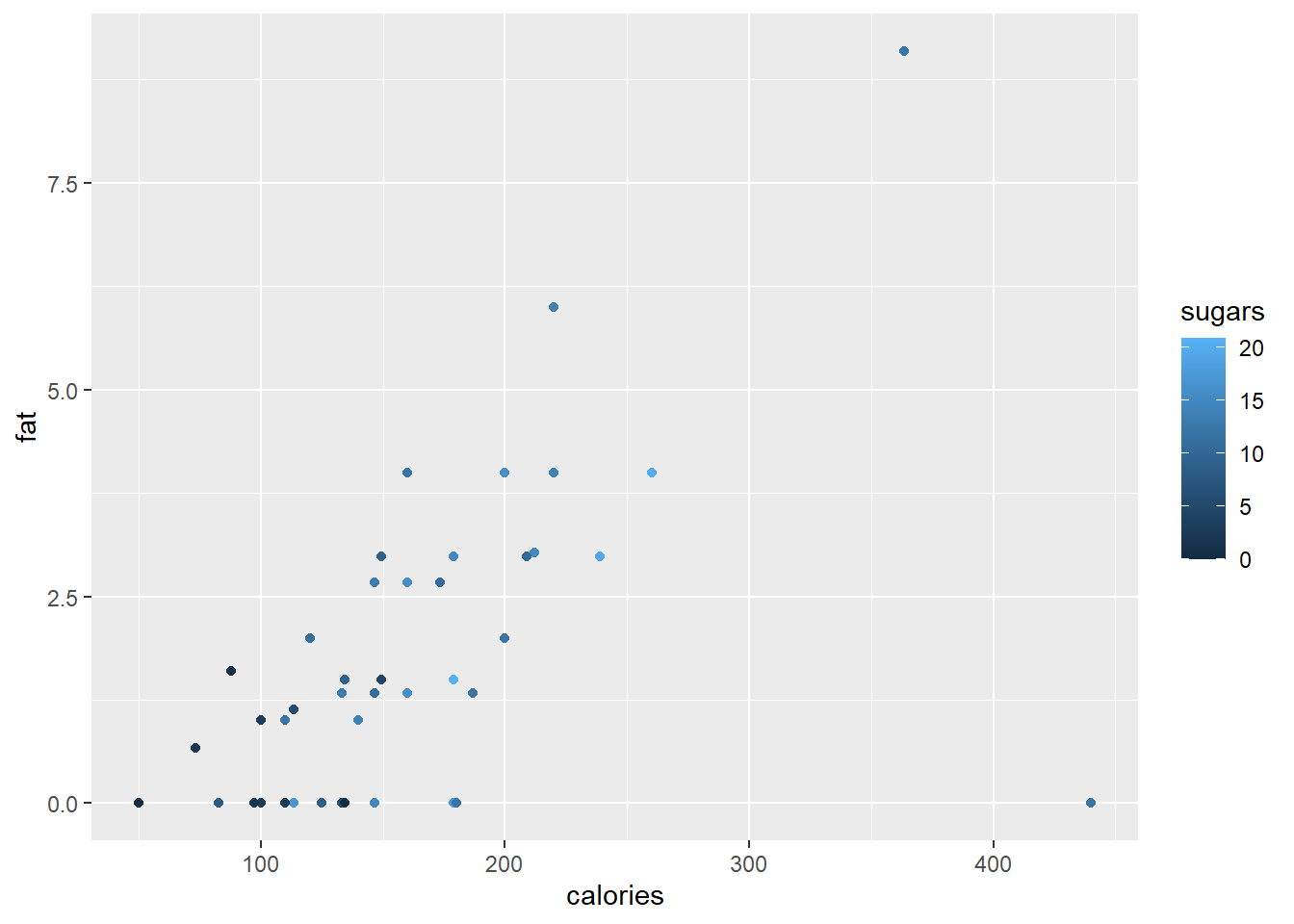

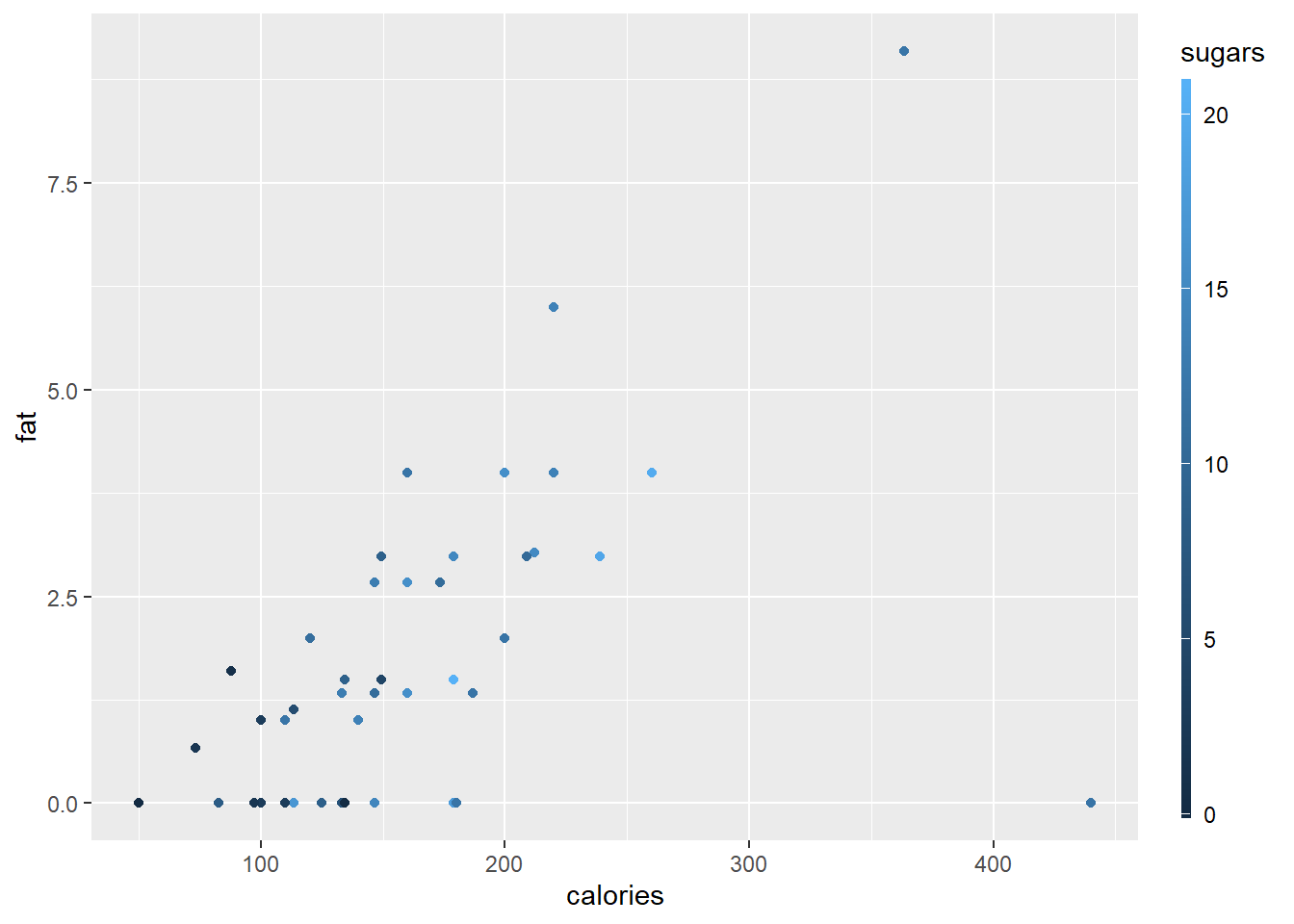

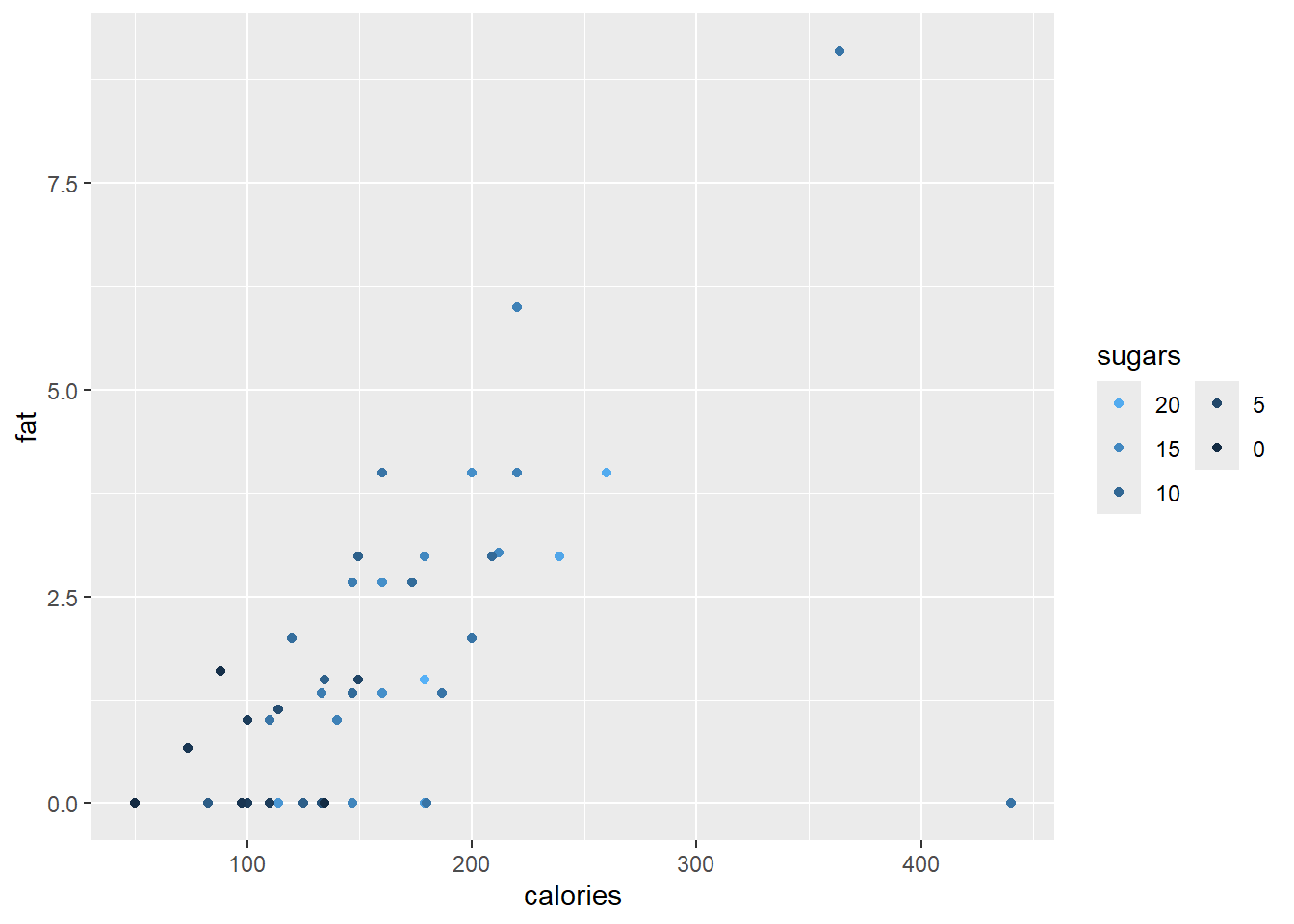

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point(mapping = aes(colour = sugars))

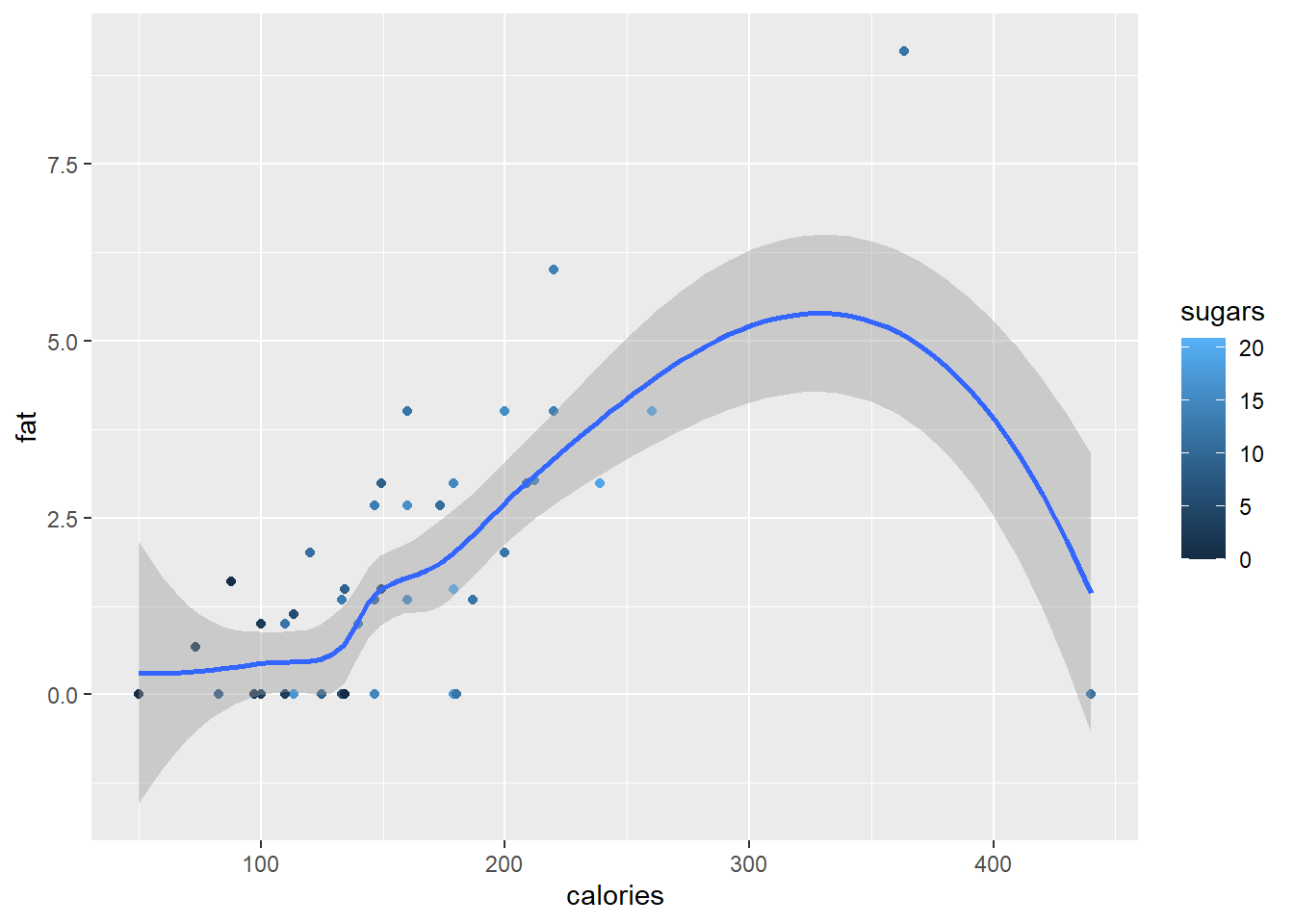

A scatterplot smoother can be added to our plot with the function geom_smooth().

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point(mapping = aes(colour = sugars)) +
       geom_smooth()
#> `geom_smooth()` using method = 'loess' and formula = 'y ~
#> x'

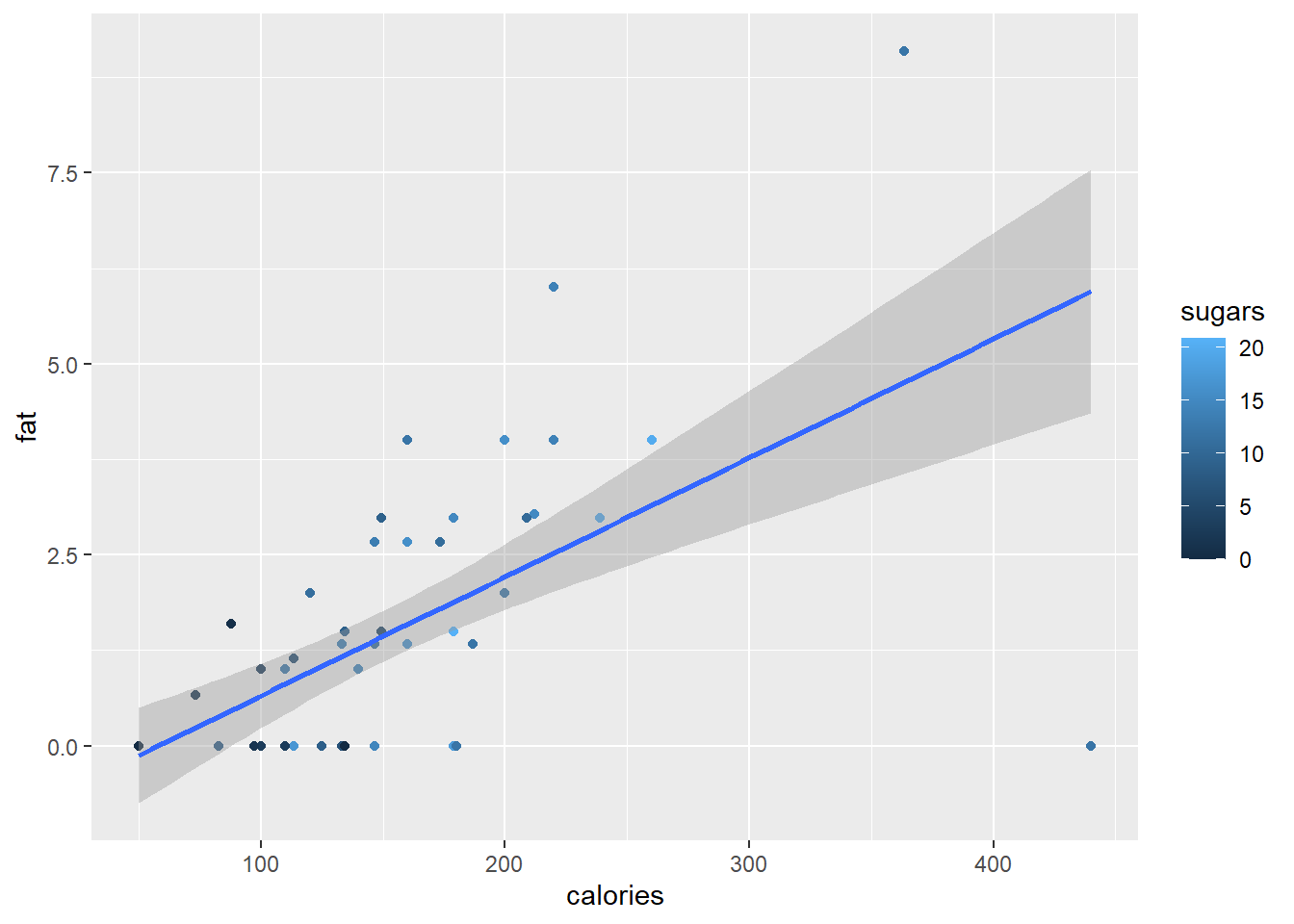

The smooth function can also be a linear regression line.

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point(mapping = aes(colour = sugars)) +
       geom_smooth(method = "lm")
#> `geom_smooth()` using formula = 'y ~ x'

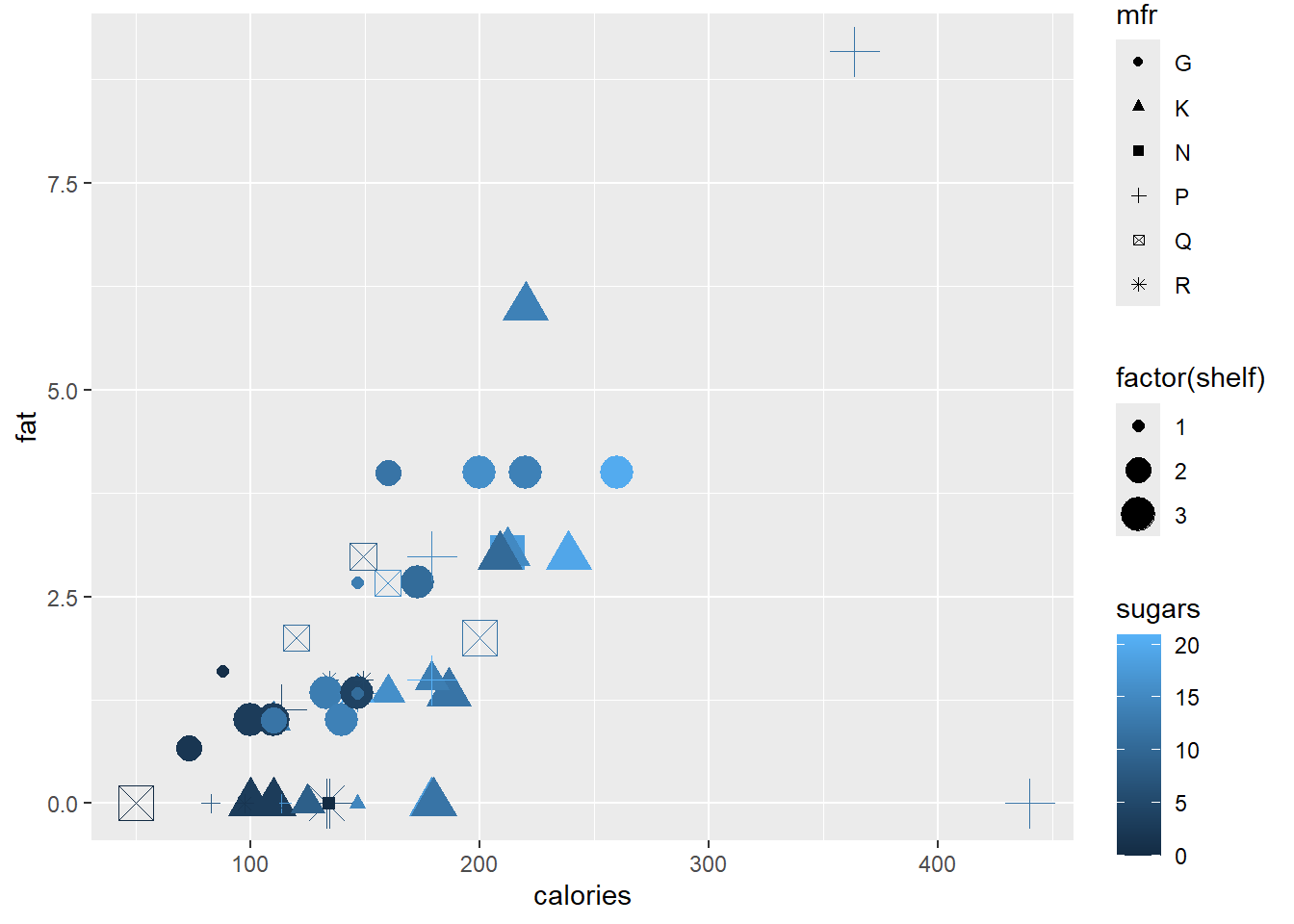

To add different sizes and shapes according to shelf and mfr, respectively, we need the command

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point(mapping = aes(colour = sugars,
                                shape = mfr,
                                size = factor(shelf)))
#> Warning: Using size for a discrete variable is not advised.

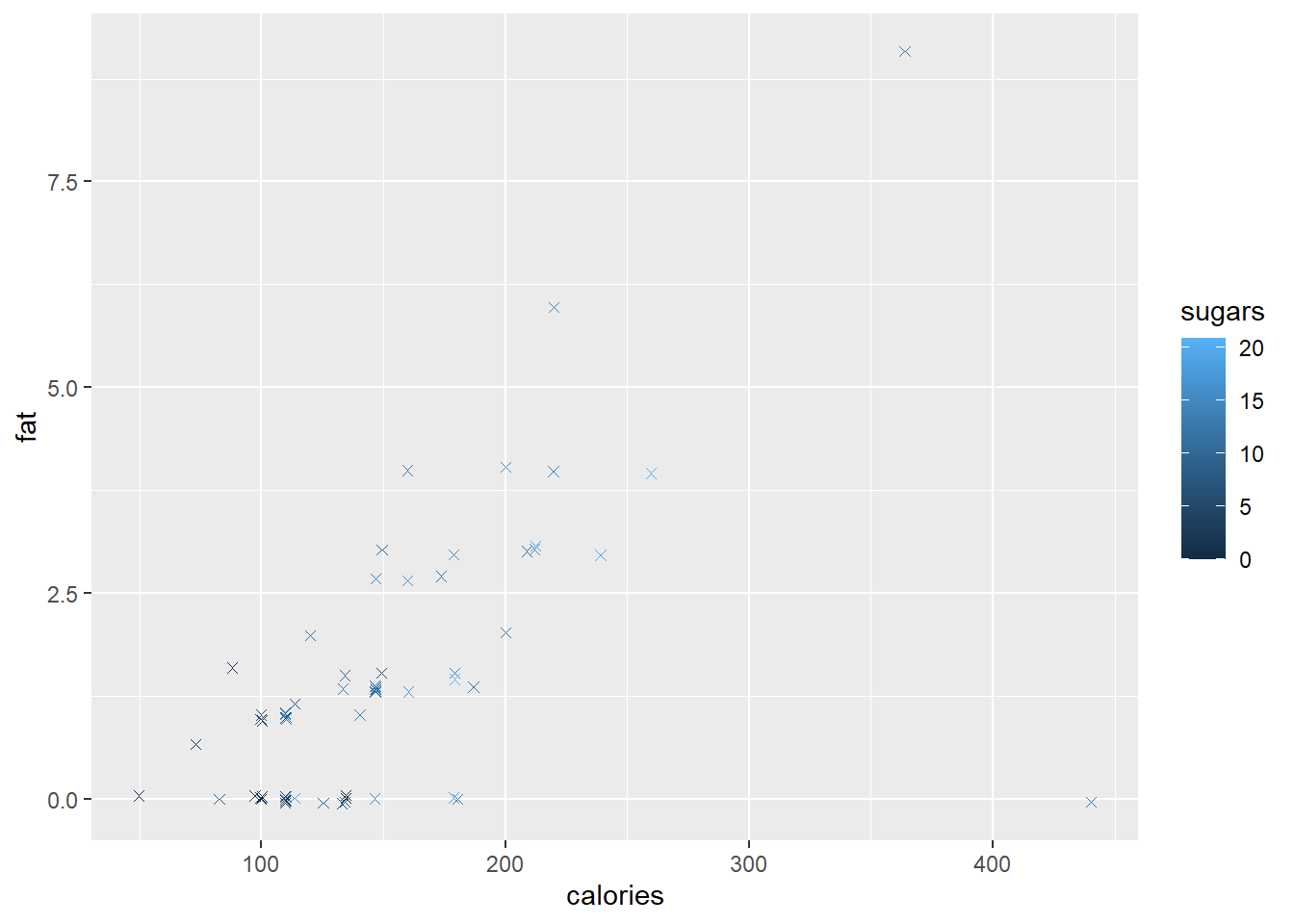

Finally, since there are multiple observations with zero fat, we want to jitter the observations in the vertical direction with a random amount in the interval \(±0.05\).

ggplot(data=cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point(mapping=aes(colour = sugars),
                              shape = "cross",
                              position = position_jitter(height=0.05))

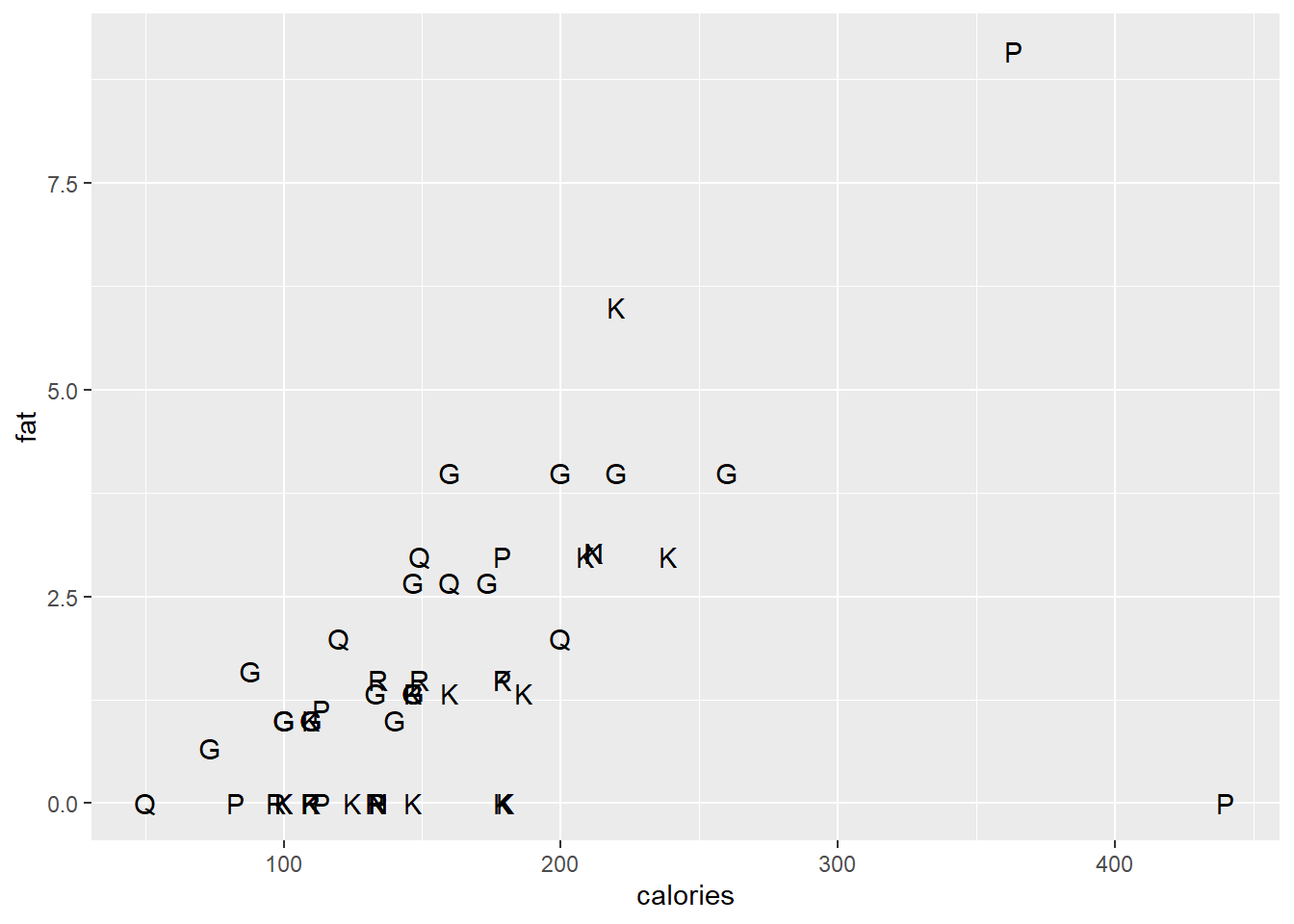

The geom_text() and geom_label() functions are useful to replace plotting characters with sample names or a specified label.

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_text(mapping = aes(label=mfr))

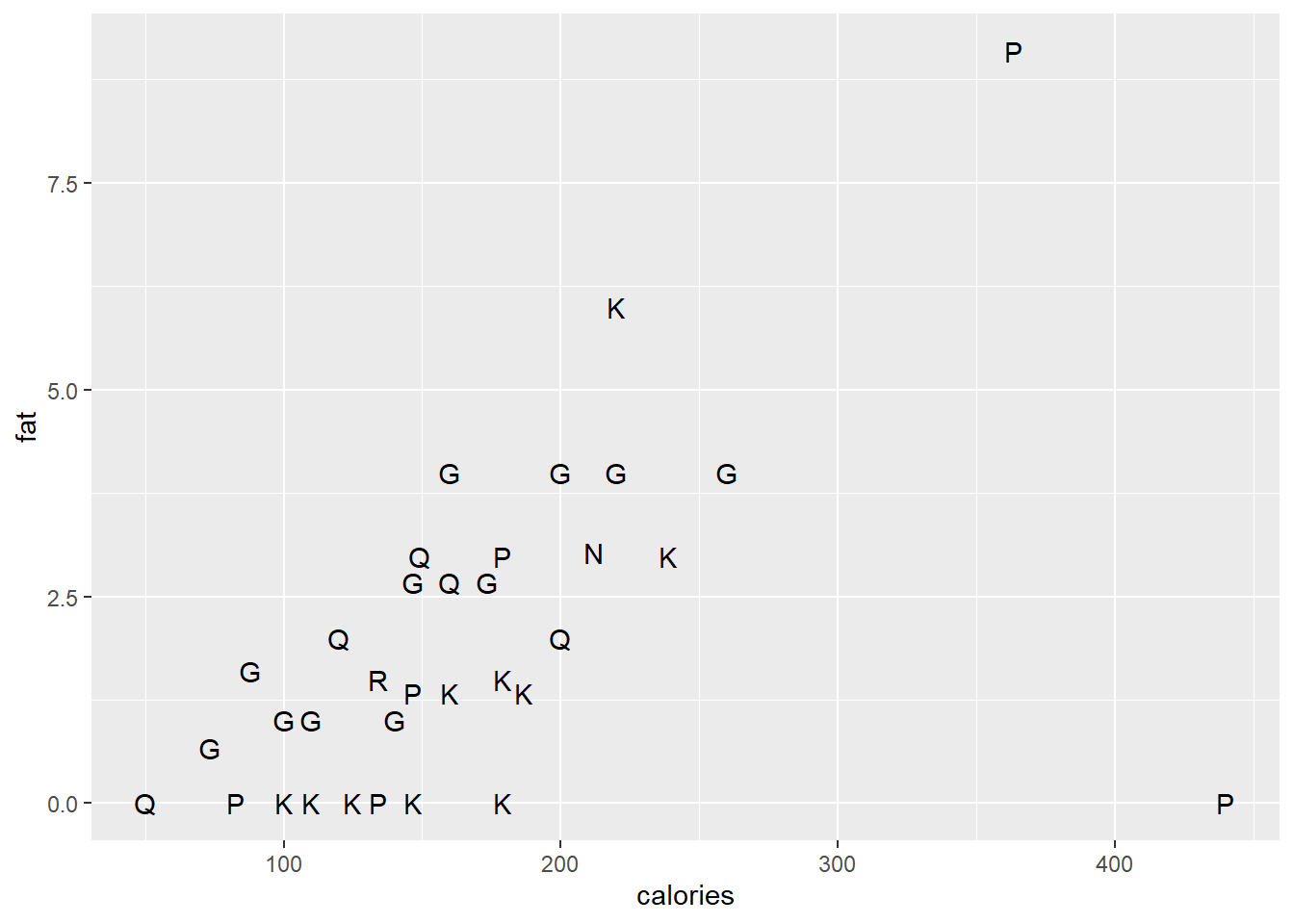

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_text(mapping=aes(label=mfr), check_overlap=T)

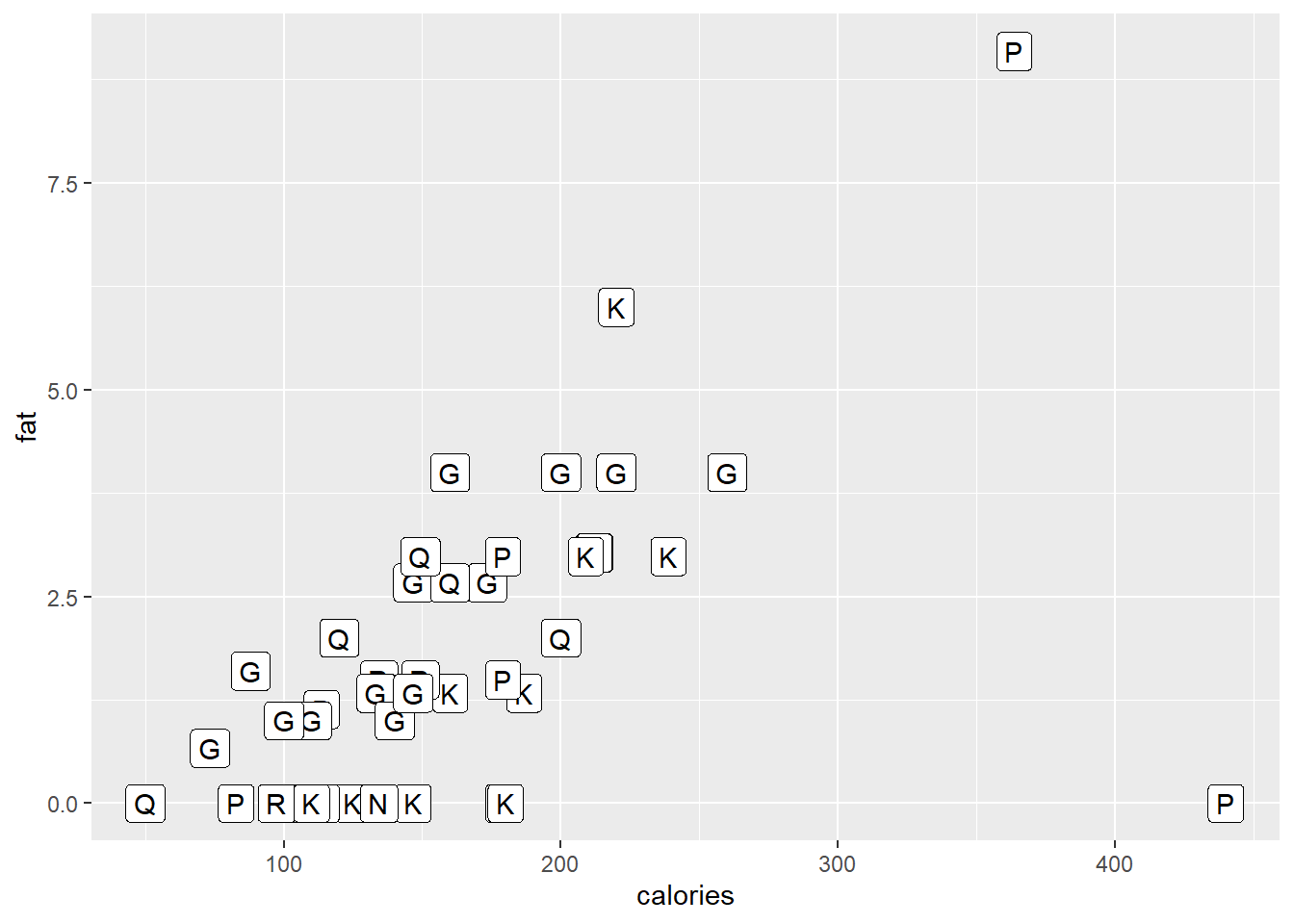

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_label(mapping = aes(label=mfr))

10.14.3 Dotplot

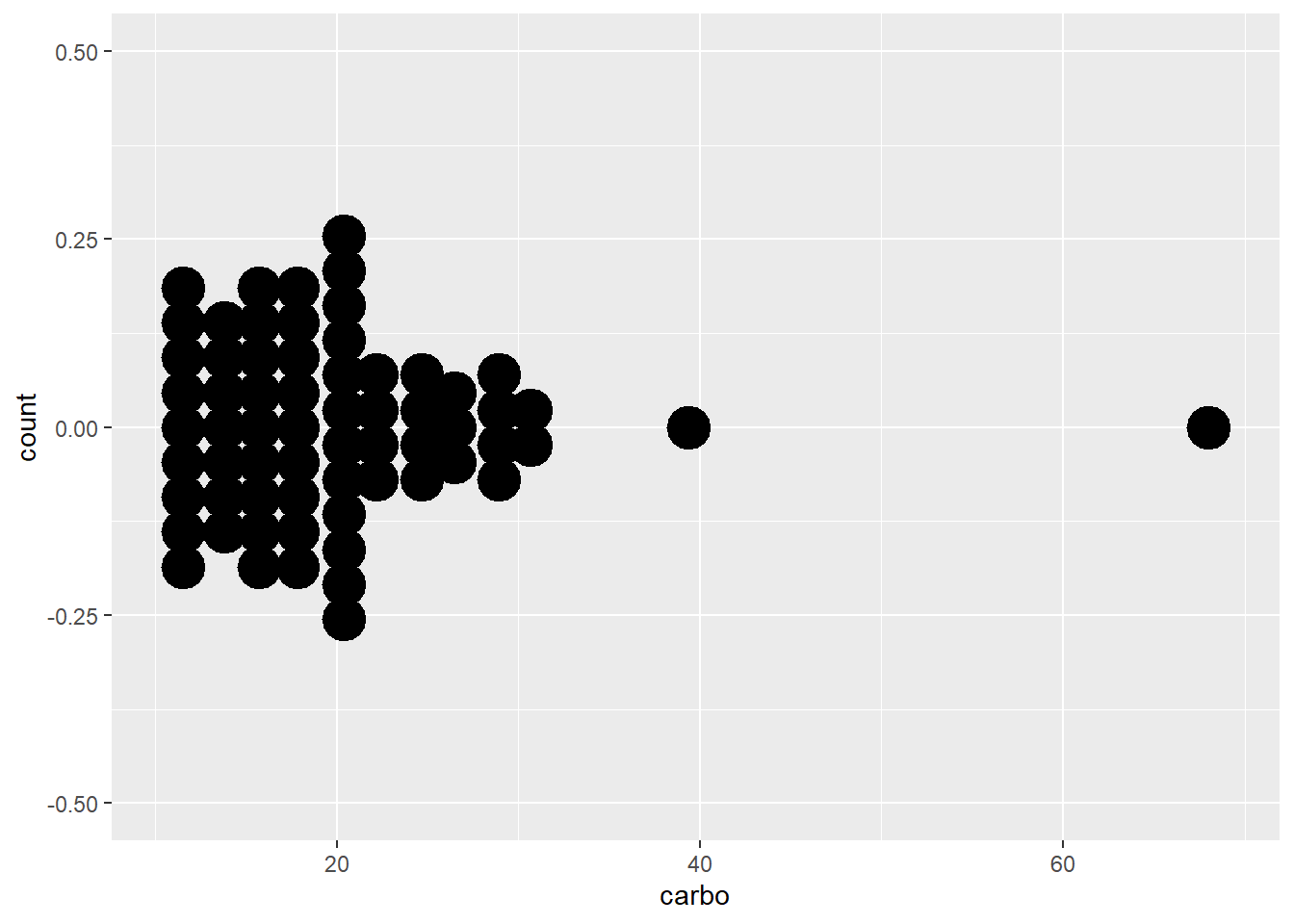

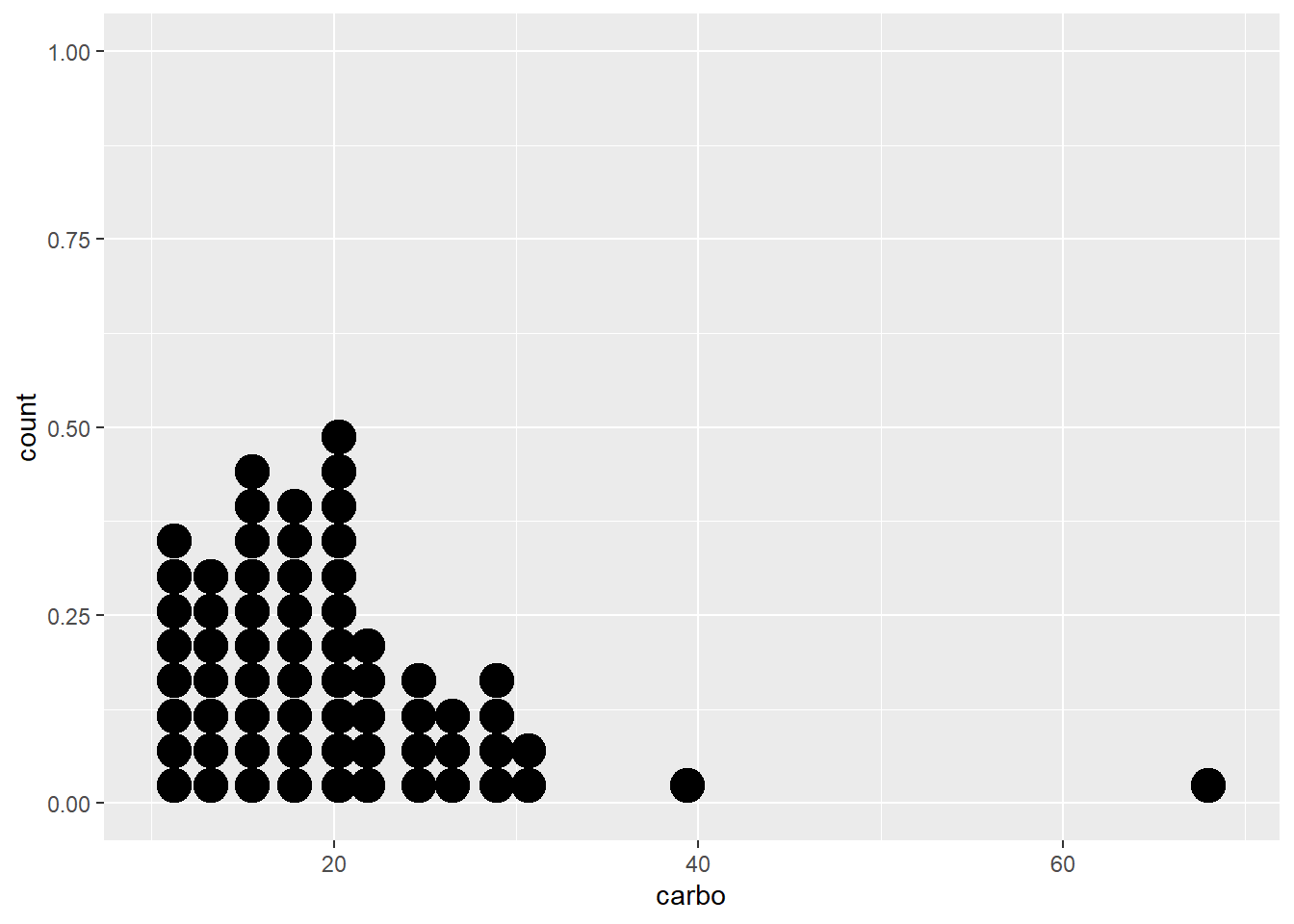

Below a simple dotplot of the carbo variable followed by another dotplot with several tweaks in presentation.

ggplot (data = cereal, mapping = aes(x = carbo)) +
        geom_dotplot()
#> Bin width defaults to 1/30 of the range of the data. Pick
#> better value with `binwidth`.

ggplot (data = cereal, mapping = aes(x = carbo)) +
        geom_dotplot(binwidth = 2, stackdir = "center",
                     stackratio = 0.8, dotsize = 1.2)

10.14.4 Boxplot

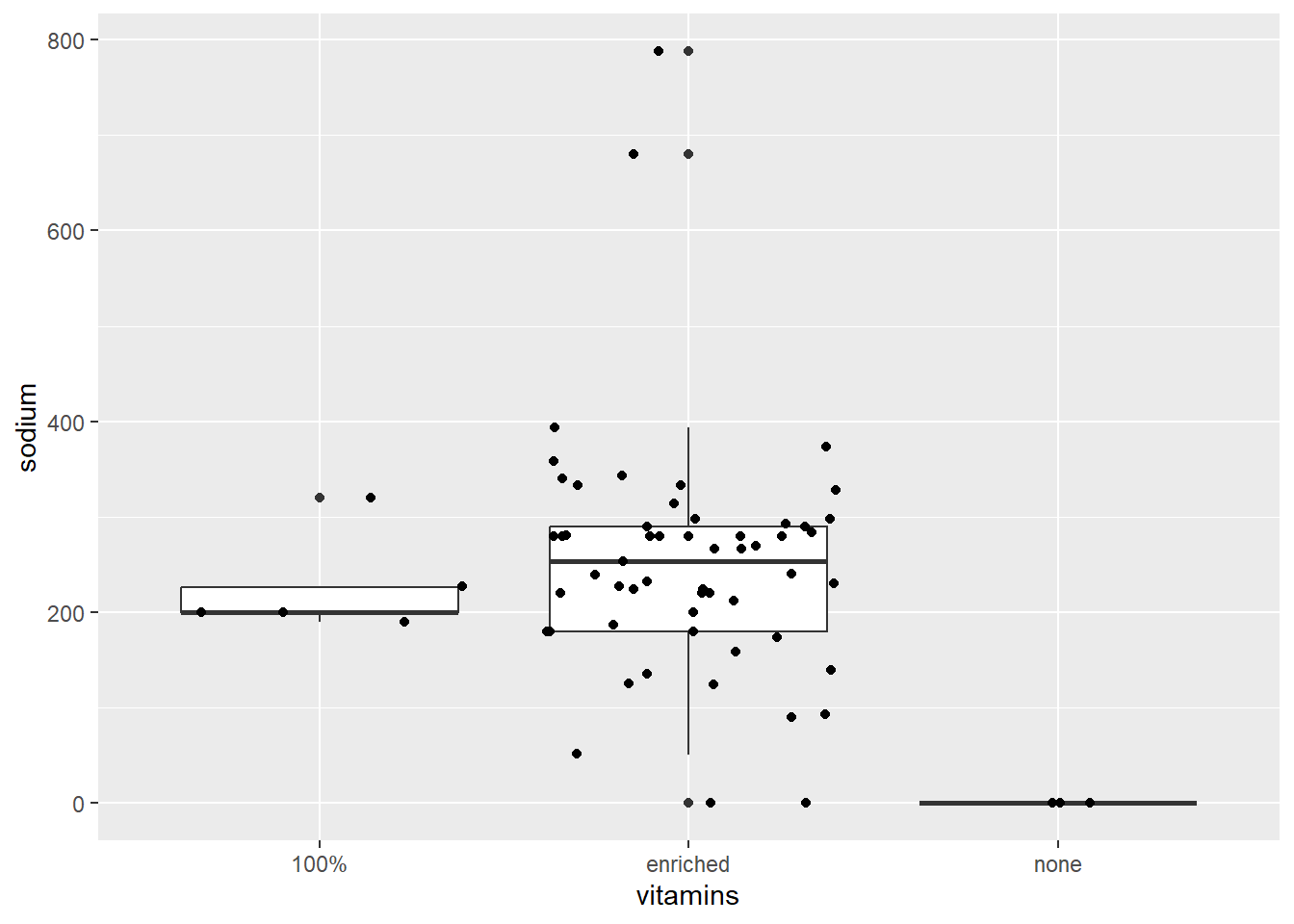

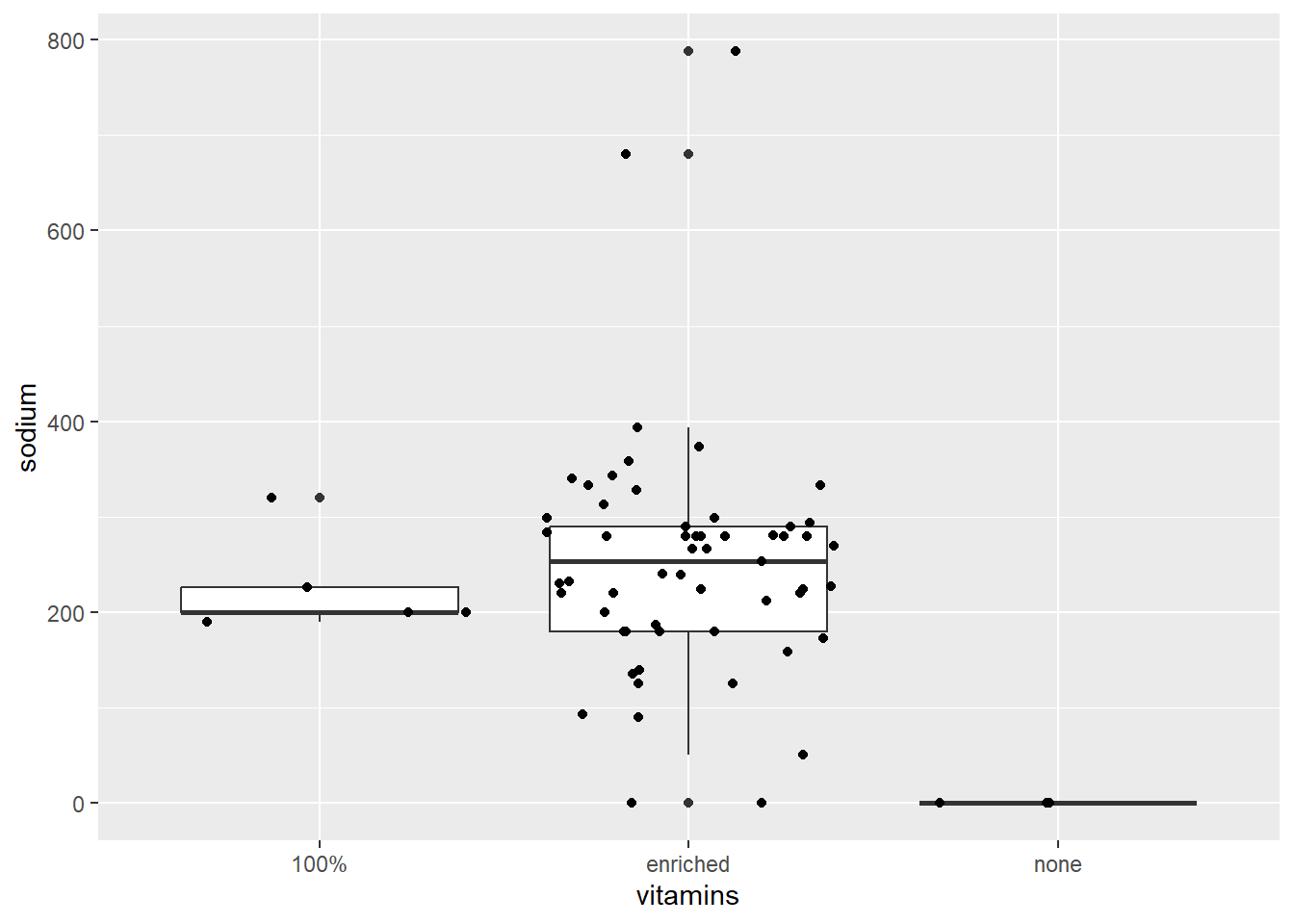

The geom_boxplot() function allows us to make a simple boxplot. However, below we make several boxplots according to vitamin enrichment and overlay the observed data.

ggplot (data = cereal,
        mapping = aes(x = vitamins, y = sodium)) +
        geom_boxplot() + geom_jitter()

ggplot (data = cereal,
        mapping = aes(x = vitamins, y = sodium)) +
        geom_boxplot() + geom_jitter()

10.14.5 Line plot

To illustrate plotting lines with ggplot2 we will create a small data set \(y_a=log(x)\)⁡ and \(y_b=2log(x)\) with \(0 < x< 1\).

x <- seq(from = 0.01, to = 0.99, len = 100)
y <- c(log(x), 2 * log(x))
z <- rep(c("a", "b"), each = 100)

dat <- tibble(x=rep(x,2), y, z)
dat
#> # A tibble: 200 × 3
#>         x     y z
#>     <dbl> <dbl> <chr>
#>  1 0.01   -4.61 a
#>  2 0.0199 -3.92 a
#>  3 0.0298 -3.51 a
#>  4 0.0397 -3.23 a
#>  5 0.0496 -3.00 a
#>  6 0.0595 -2.82 a
#>  7 0.0694 -2.67 a
#>  8 0.0793 -2.53 a
#>  9 0.0892 -2.42 a
#> 10 0.0991 -2.31 a
#> # ℹ 190 more rows

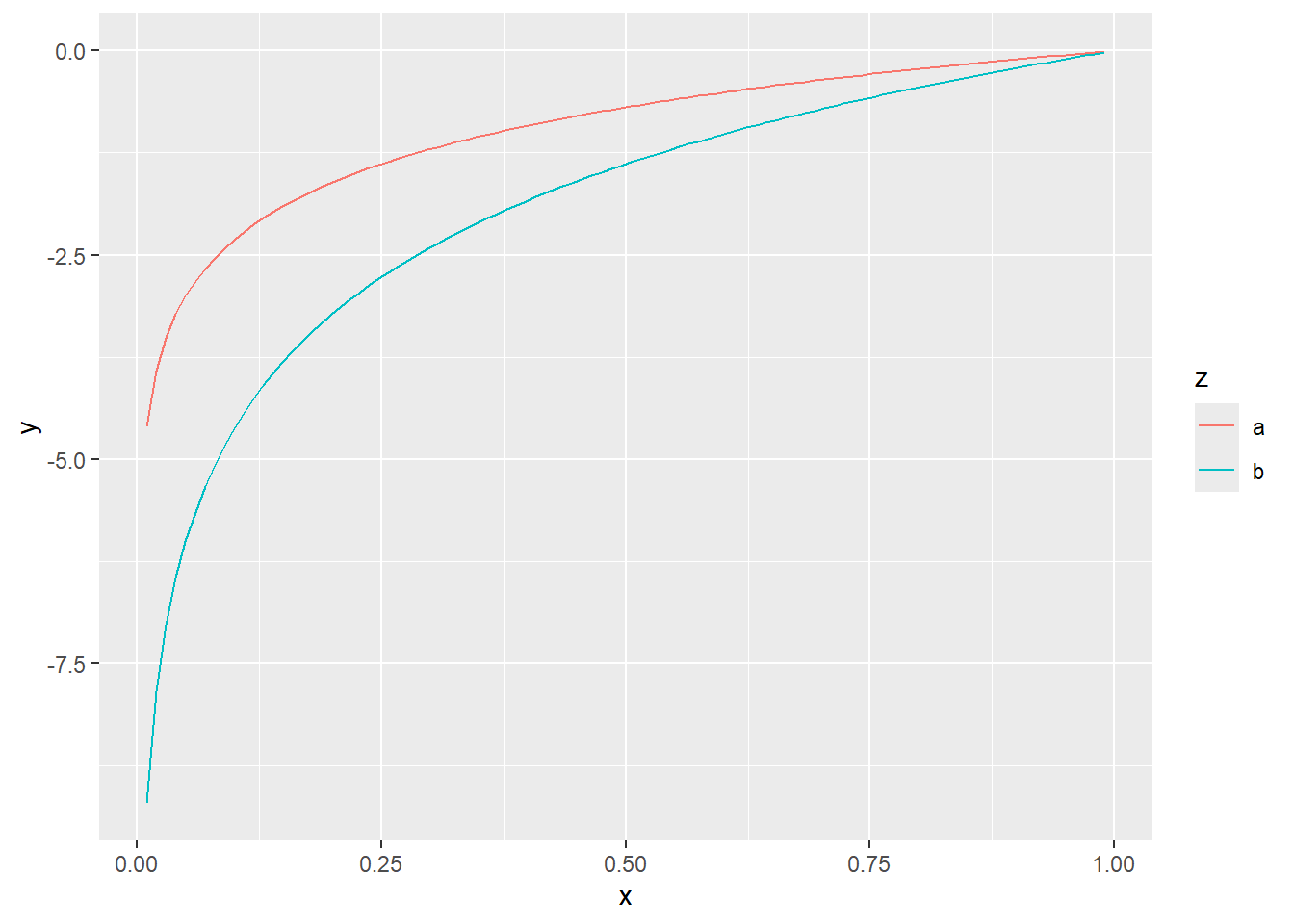

ggplot(dat, aes(x = x, y = y)) +
       geom_line(aes(colour = z))

10.14.6 Density estimates

Non-parametric density estimates are useful to summarise the distribution of data. For a single variable, the geom_density() function produces a density estimate (see section 10.6). Here we illustrate the use of the two-dimensional density estimate with the function geom_density_2d() and the Old Faithful data from package datasets. Note that the call to ggplot() is written to the object p1. The content of p1 is the plot. Assigning the name p1 to the plot prevents having to retype the full call for every subsequent execution.

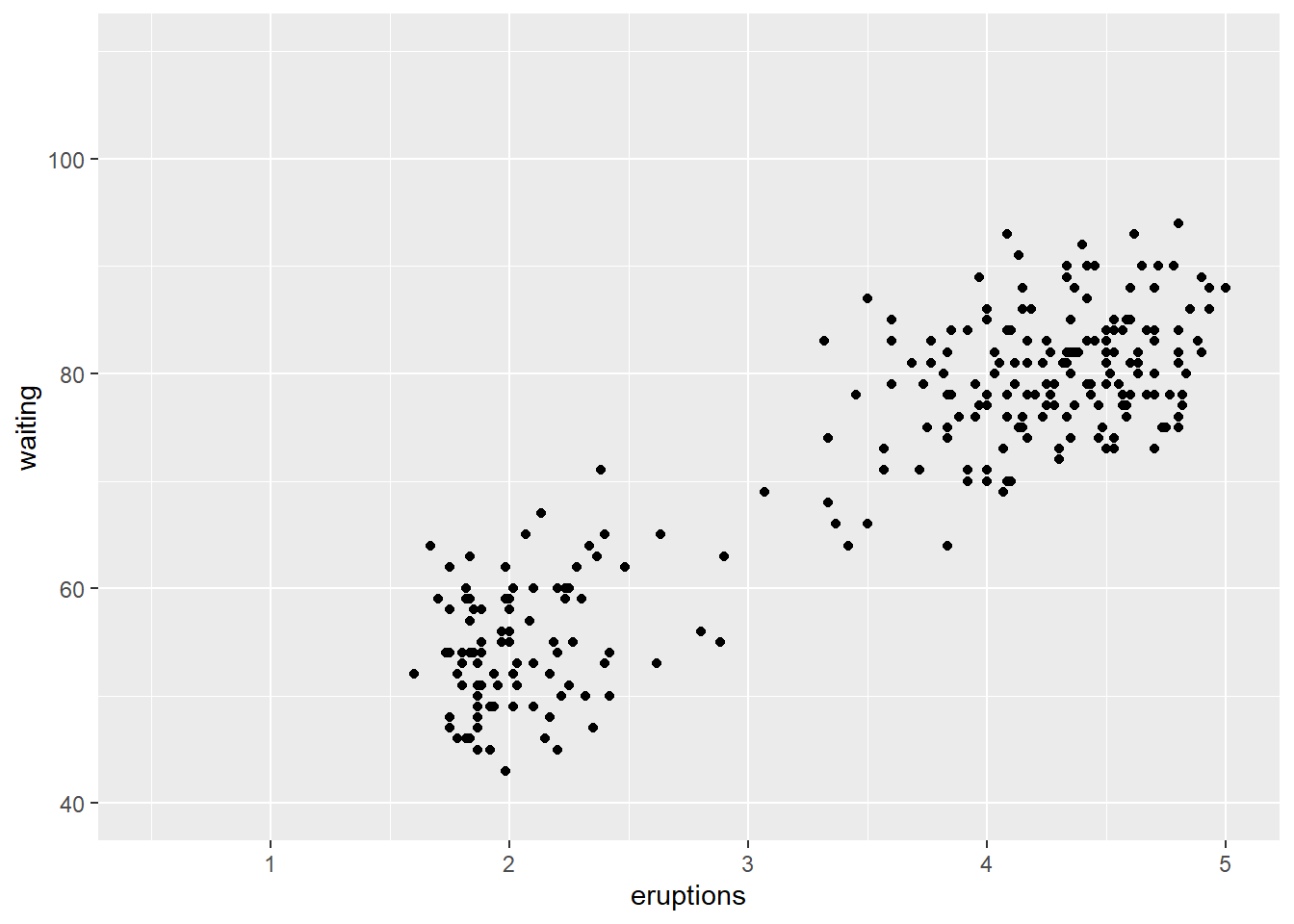

p1 <- ggplot (faithful,
              aes(x = eruptions, y = waiting)) +
              geom_point() + xlim(0.5,5) + ylim(40,110)

p1
#> Warning: Removed 3 rows containing missing values or values outside
#> the scale range (`geom_point()`).

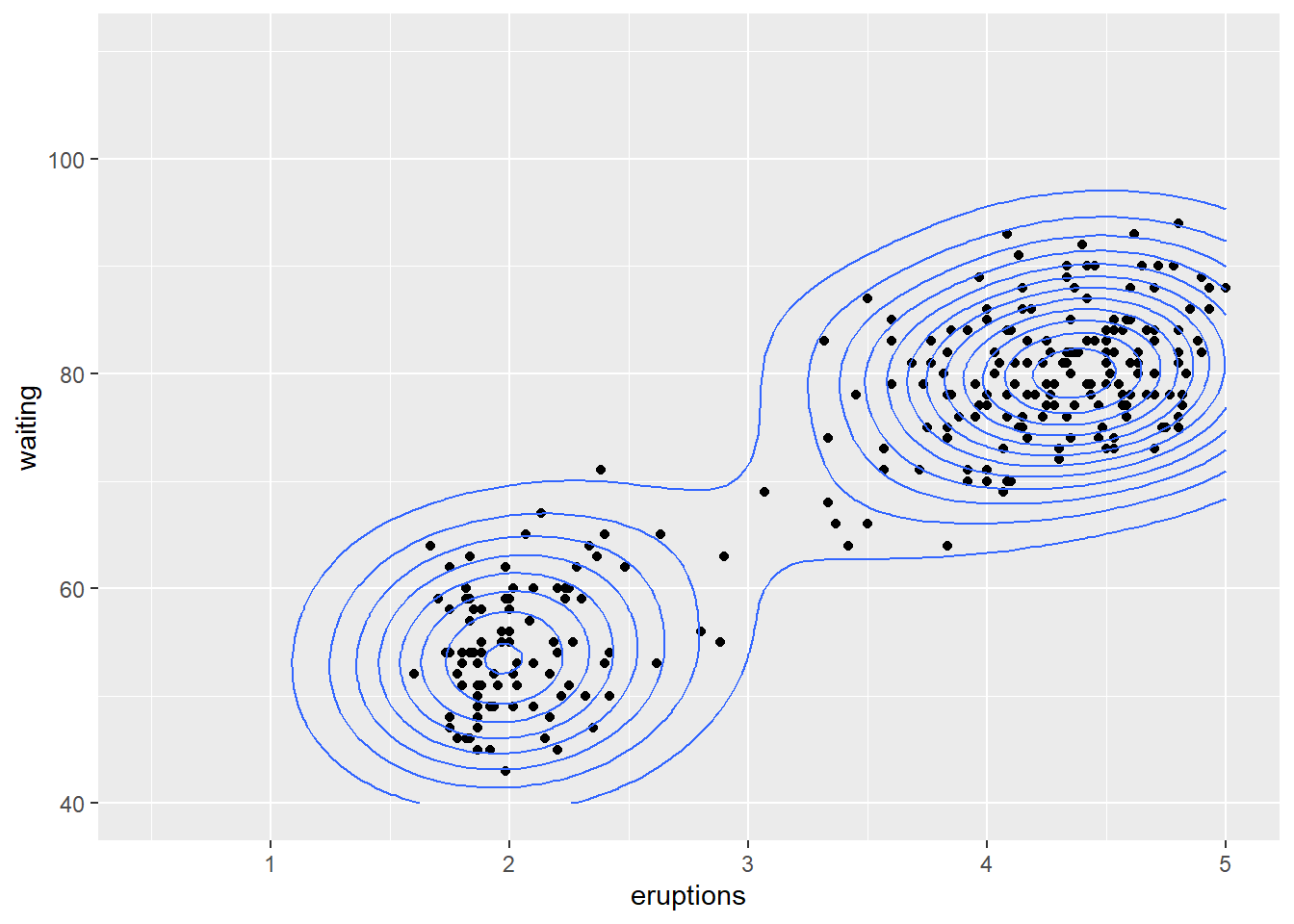

p1 + geom_density_2d()
#> Warning: Removed 3 rows containing non-finite outside the scale
#> range (`stat_density2d()`).
#> Removed 3 rows containing missing values or values outside
#> the scale range (`geom_point()`).

In the above examples, the geometry is specified, without any specification of statistical transformations. Although not specified explicitly, statistical transformations are performed. For instance in the barplot above, the stat_count() is the default for geom_bar() to determine the frequencies plotted on the vertical axis. In most instances, the default stat_xxx() function is appropriate for the particular geom_yyy() function and specifying other statistical transformations could lead to non-sensicle calls. In most calls to ggplot(), the default stat_xxx() is appropriate and not explicitly specified. Below, we look at a few exceptions.

10.14.7 Empirical cumulative distribution function

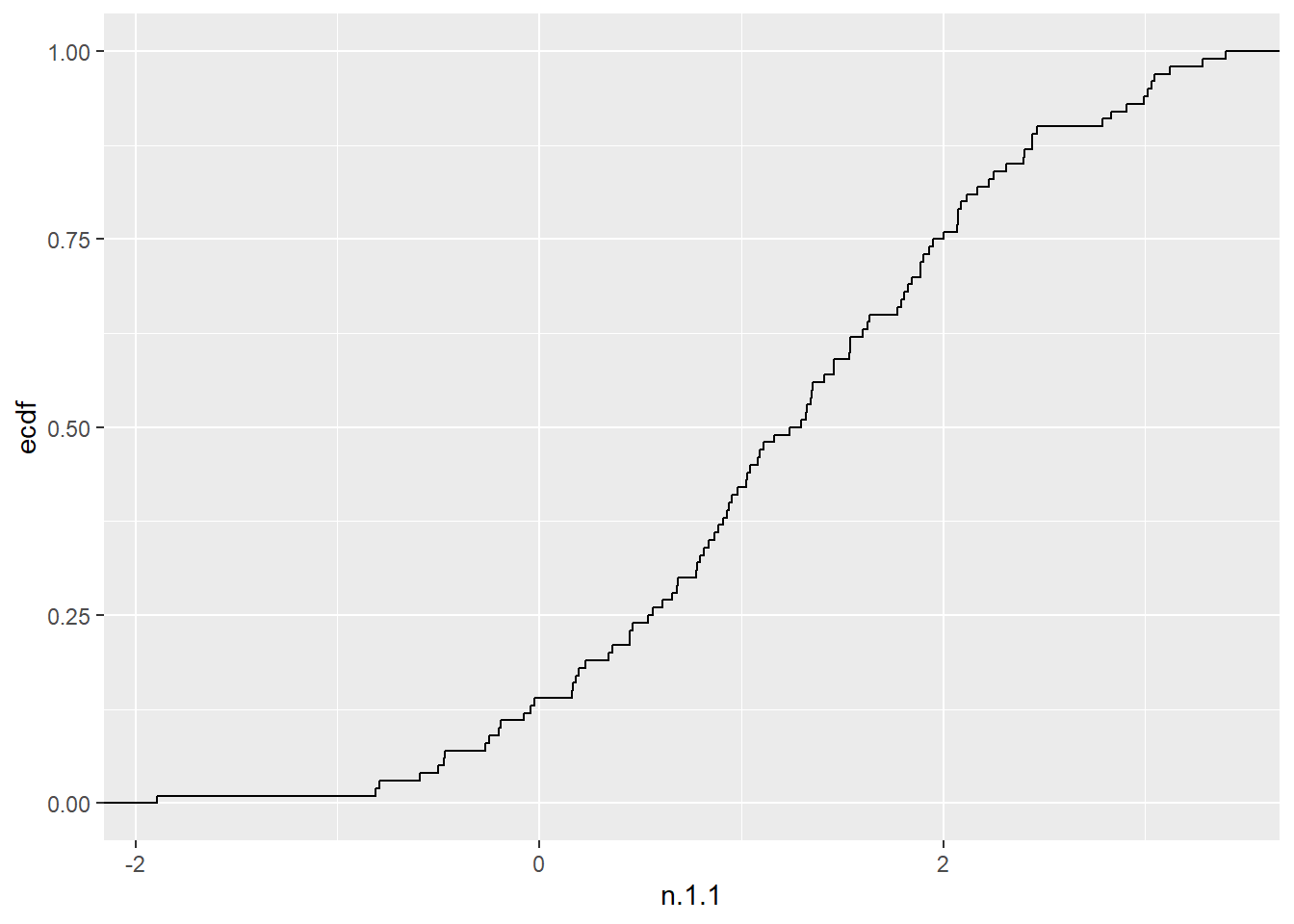

The empirical cumulative distribution function also provide details on the shape of the distribution underlying the observations and can be plotted with stat_ecdf().

n.1.1 <- rnorm(100, 1, 1)
F.4.9 <- rf(100, 4,9)
dat <- tibble(n.1.1,F.4.9)
dat2 <- pivot_longer(dat, cols = everything())
ggplot (dat, aes(x=n.1.1)) + stat_ecdf()

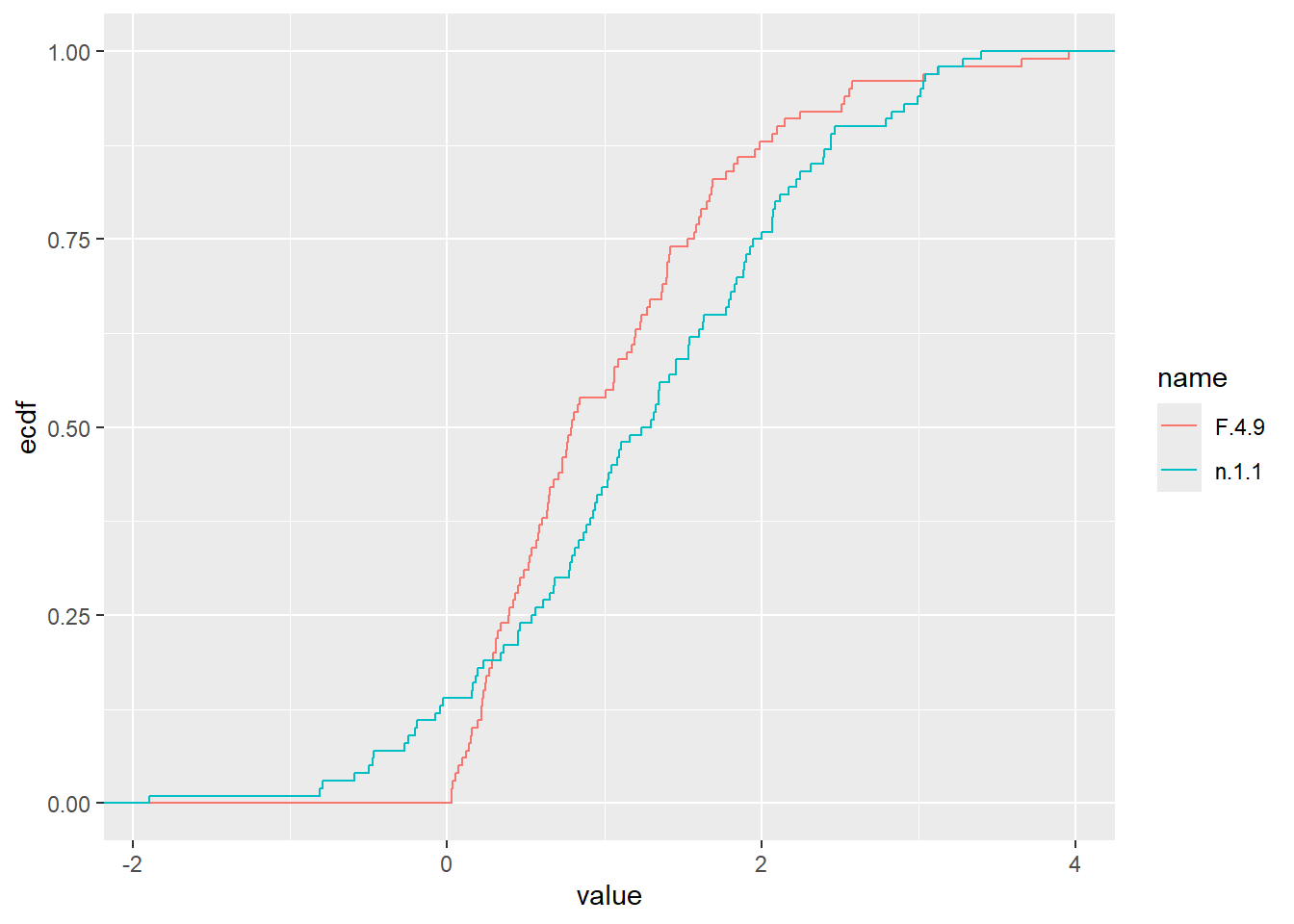

ggplot (dat2, aes(x=value, colour = name)) + stat_ecdf()

10.14.8 Mathematical functions

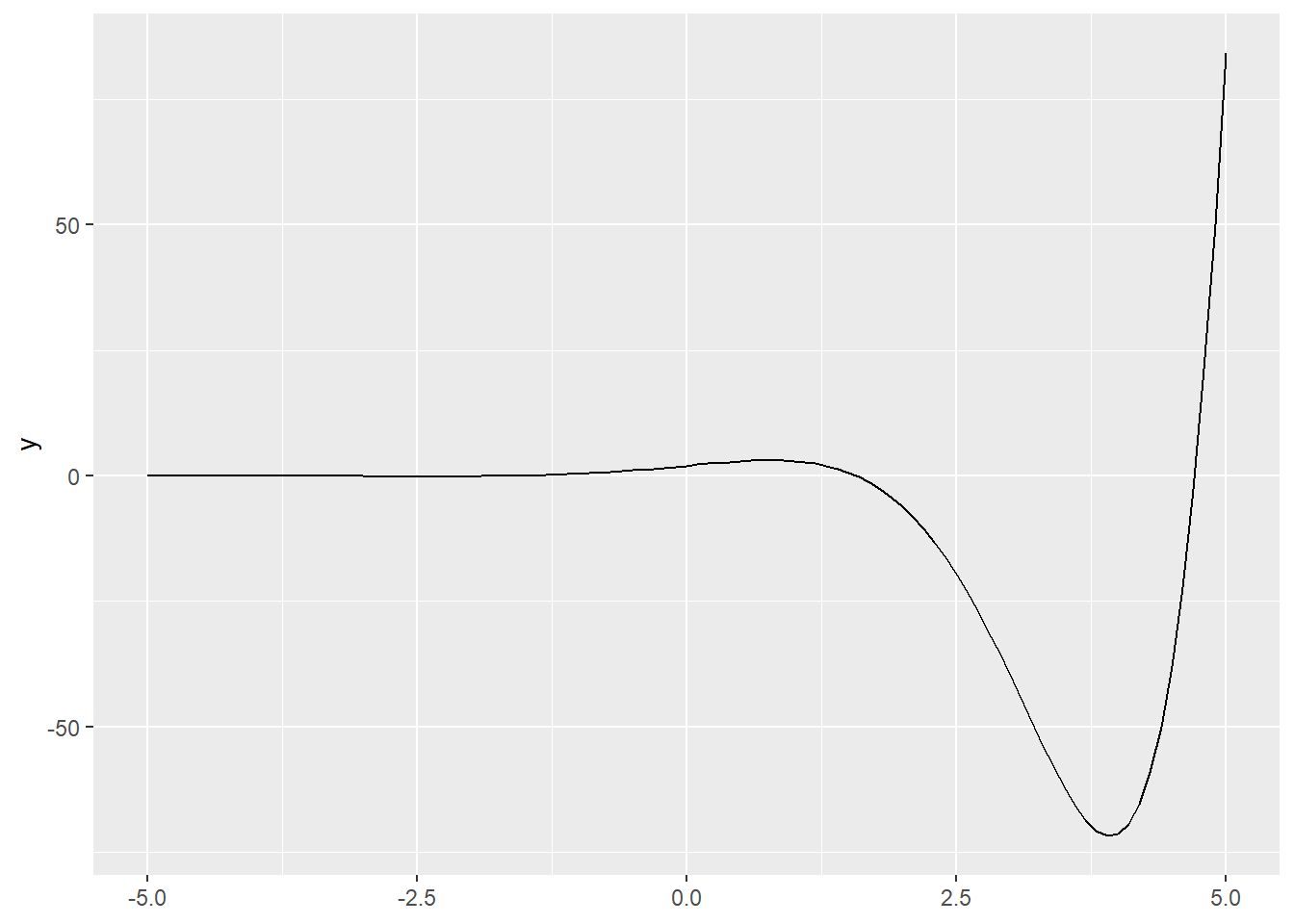

Any function \(f(x)\) can be plotted, or added to a plot with stat_function(). First we will plot the function \(f(x)=2e^xcos⁡(x)\).

p2 <- ggplot() + xlim(-5,5)
p2 + geom_function(fun = function(x) 2*exp(x)*cos(x))

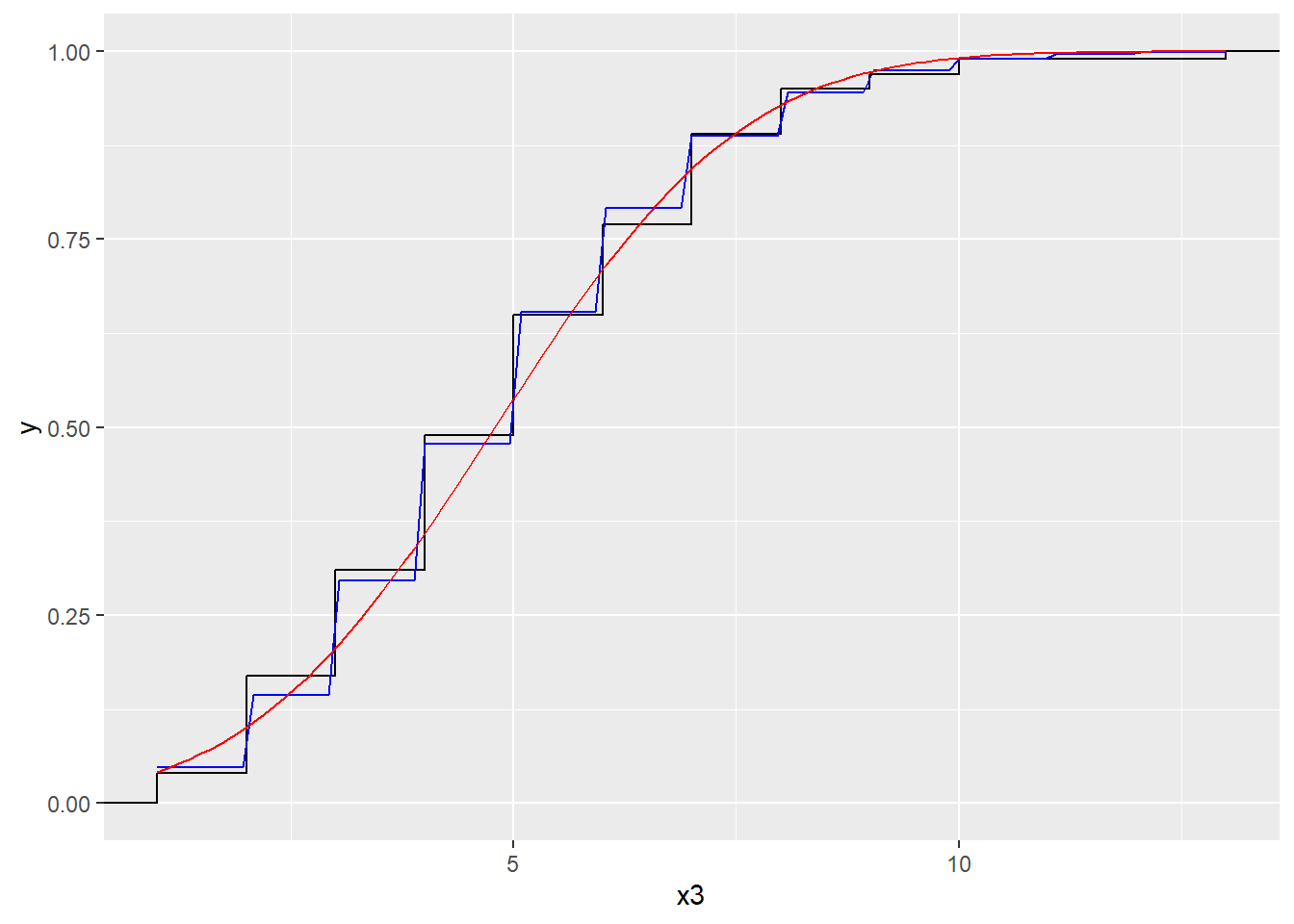

Next we will compare our empirical cumulative distribution function, to the cumulative distribution functions of a Poisson and normal distribution. (Remember, the normal distribution provides an approximation to the Poisson).

x3 <- rpois(100, 5)
dat3 <- tibble(x3)
ggplot (dat3, aes(x = x3)) + stat_ecdf() +
        geom_function(fun = ppois,
                args=list(lambda=mean(x3)), col="blue") +
        geom_function(fun = pnorm,
               args=list(mean=mean(x3), sd=sqrt(mean(x3))),
               col="red")

10.14.9 after_stat() function

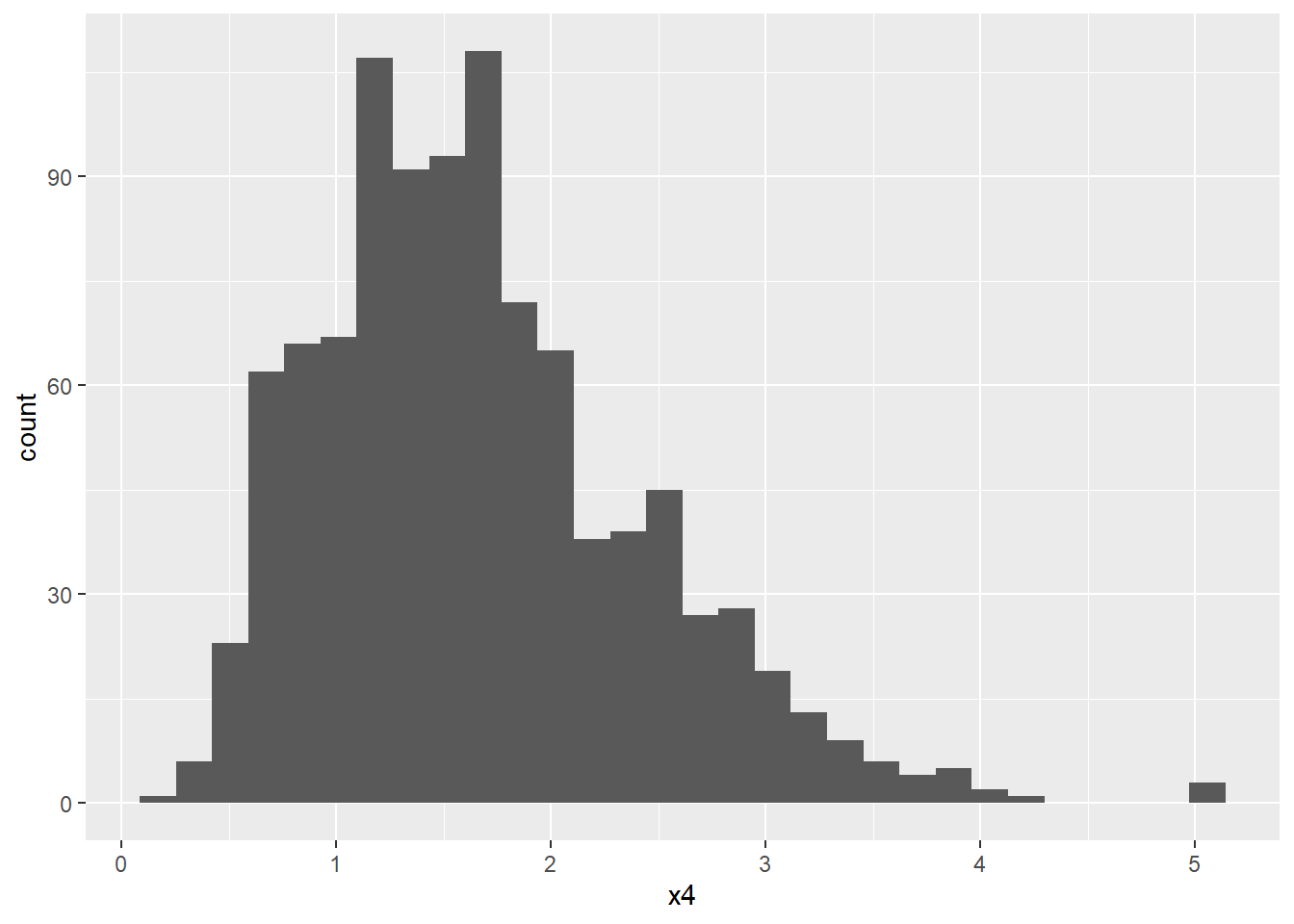

When constructing a histogram, the frequencies appear on the vertical axis. These frequencies are the output of the function stat_bin() which means they are not available up front in the data set itself. The after_stat() function allows us to use the computed variables, for instance to scale the histogram to area \(=1\) in order to compare the observed distribution to a theoretical probability density function.

x4 <- rgamma(1000, 5, 3)
dat4 <- tibble(x4)
ggplot (dat4, aes(x4)) + geom_histogram()
#> `stat_bin()` using `bins = 30`. Pick better value with
#> `binwidth`.


ggplot(dat4, aes(x4)) +
       geom_histogram(aes(y=after_stat(density)),
                      fill="pink") +
       geom_function (fun = dgamma,
                      args=list(shape = 5, rate = 3))
#> `stat_bin()` using `bins = 30`. Pick better value with
#> `binwidth`.

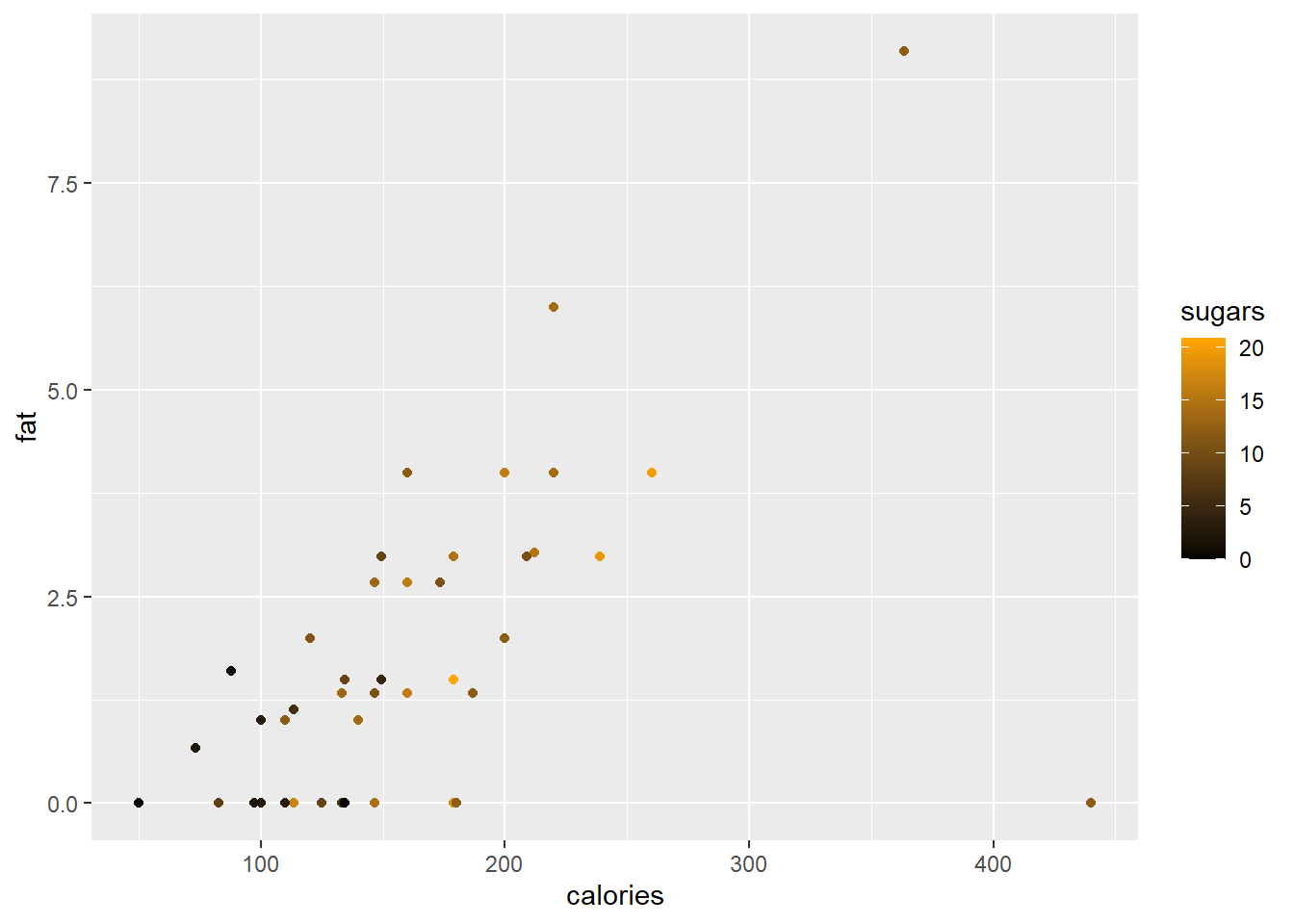

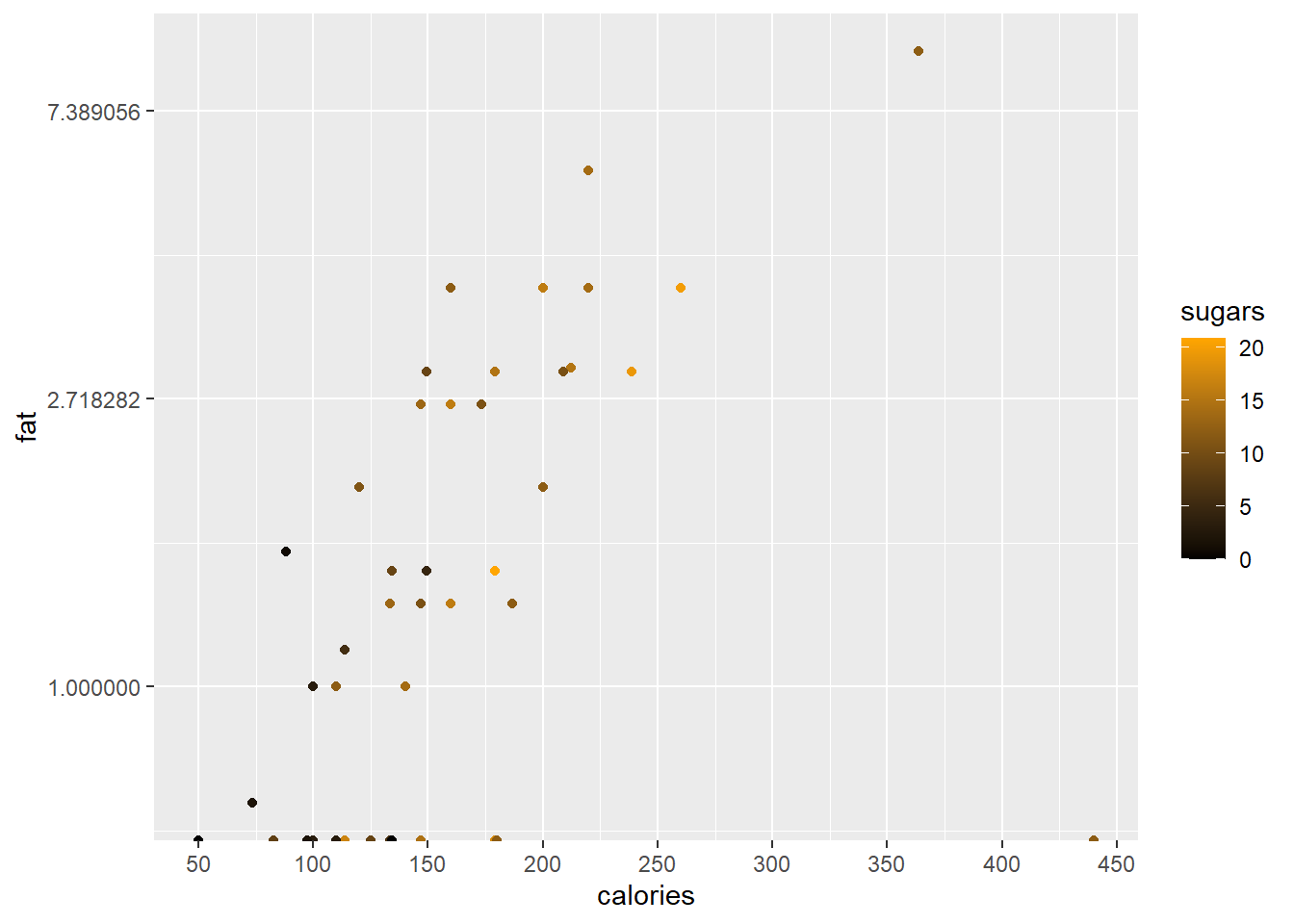

10.14.10 Scales

The scales link the aesthetic attributes such as colours, plotting characters, line types, axis scales etc. to the data. Implicitly, in all the calls above, default scales are specified. Should we wish to change the defaults, the scales need to be specified explicitly.

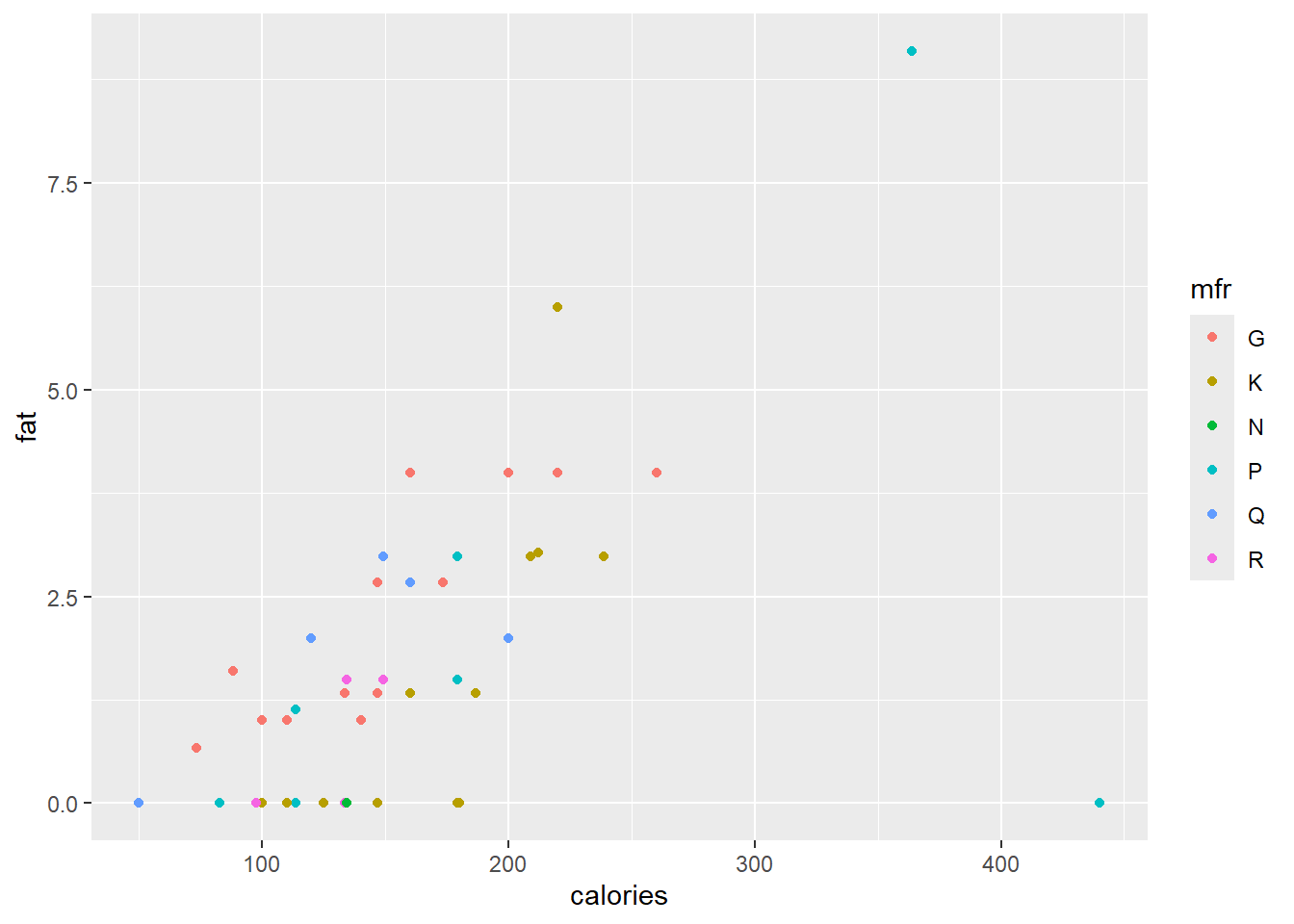

In the call

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point(mapping = aes(colour = mfr))

different colours are assigned to the points, based on the content of mfr. Since mfr is a categorical variable with six levels, the first six default colours are used. The user can specify their own colour selection with the function scale_colour_manual(). However, the Brewer palettes are convenient colour schemes designed by Cynthia Brewer as described at http://colorbrewer2.org. Below a qualitative scale is used according to the levels of mfr.

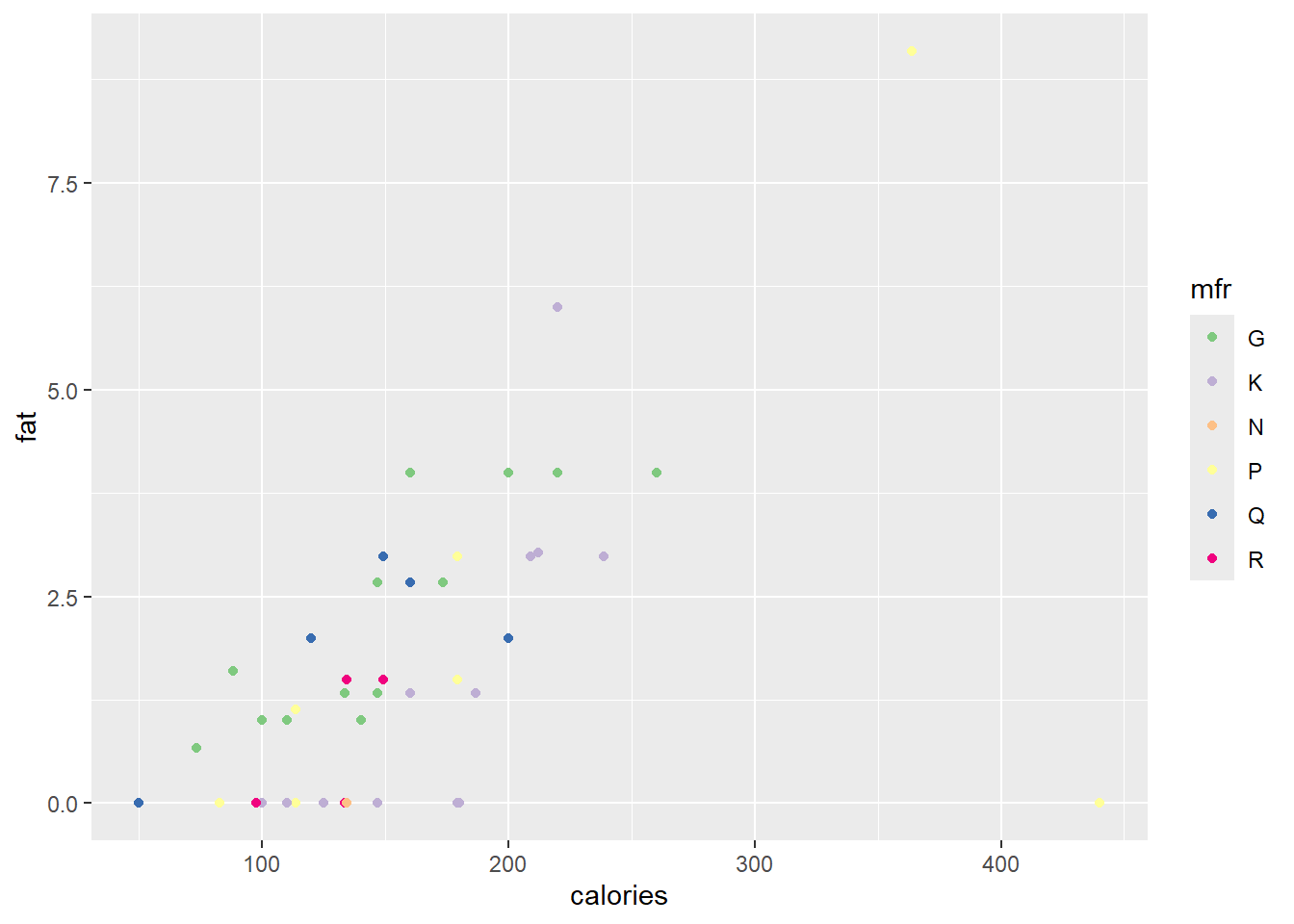

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point(mapping = aes(colour = mfr)) +
       scale_colour_brewer(type = "qual")

Next, we will define our own gradient fill scaling for use with the continuous variable sugars. The default scale ranges from light blue to dark blue.

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point(mapping = aes(colour = sugars))

The built in colour palettes hcl.colors, hcl.pals, rainbow, heat.colors, terrain.colors, topo.colors and cm.colors can be selected with the function scale_colour_gradientn() or scale_fill_gradientn().

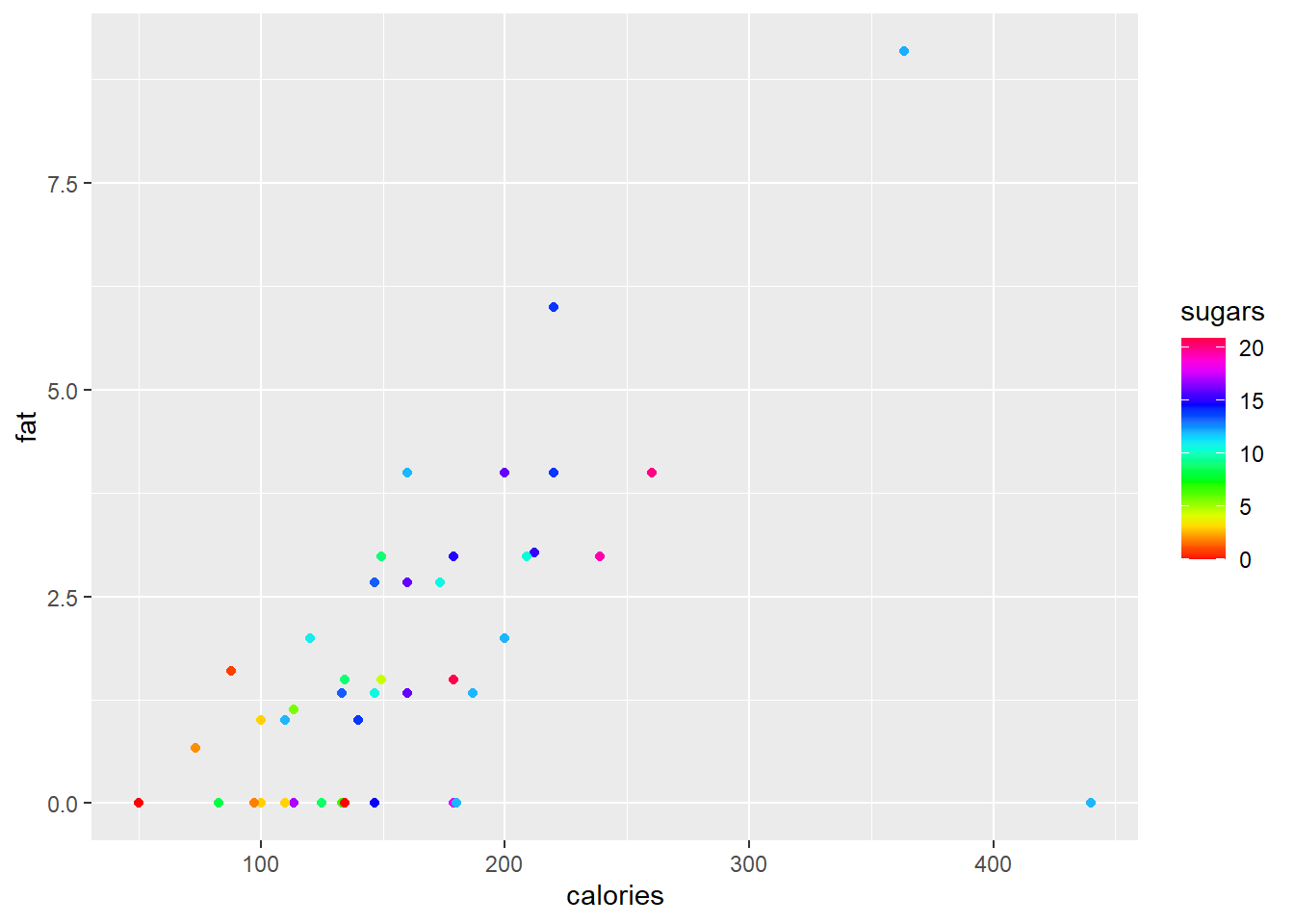

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point(mapping = aes(colour = sugars))+
       scale_colour_gradientn(colours = rainbow(21))

The functions scale_colour_gradient() and scale_fill_gradient() allows the user to specify a two-colour gradient scale while scale_colour_gradient2() and scale_fill_gradient2() allows for specification of a three-colour gradient scale.

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point(mapping = aes(colour = sugars))+
       scale_colour_gradient(low = "black",
                             high = "orange")

In a final example of scales we will change the vertical axis to a log scale while changing the axis markers on the horizontal scale.

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point(mapping = aes(colour = sugars))+
       scale_colour_gradient(low = "black",
                             high = "orange") +
       scale_x_continuous(breaks = seq(from = 50, to = 450, by = 50)) +
       scale_y_continuous(trans = "log")
#> Warning in scale_y_continuous(trans = "log"): log-2.718282
#> transformation introduced infinite values.

10.14.11 Coordinates

By default, all the plots we have made are on the Cartesian axes. One alternative would be to use a polar coordinate system.

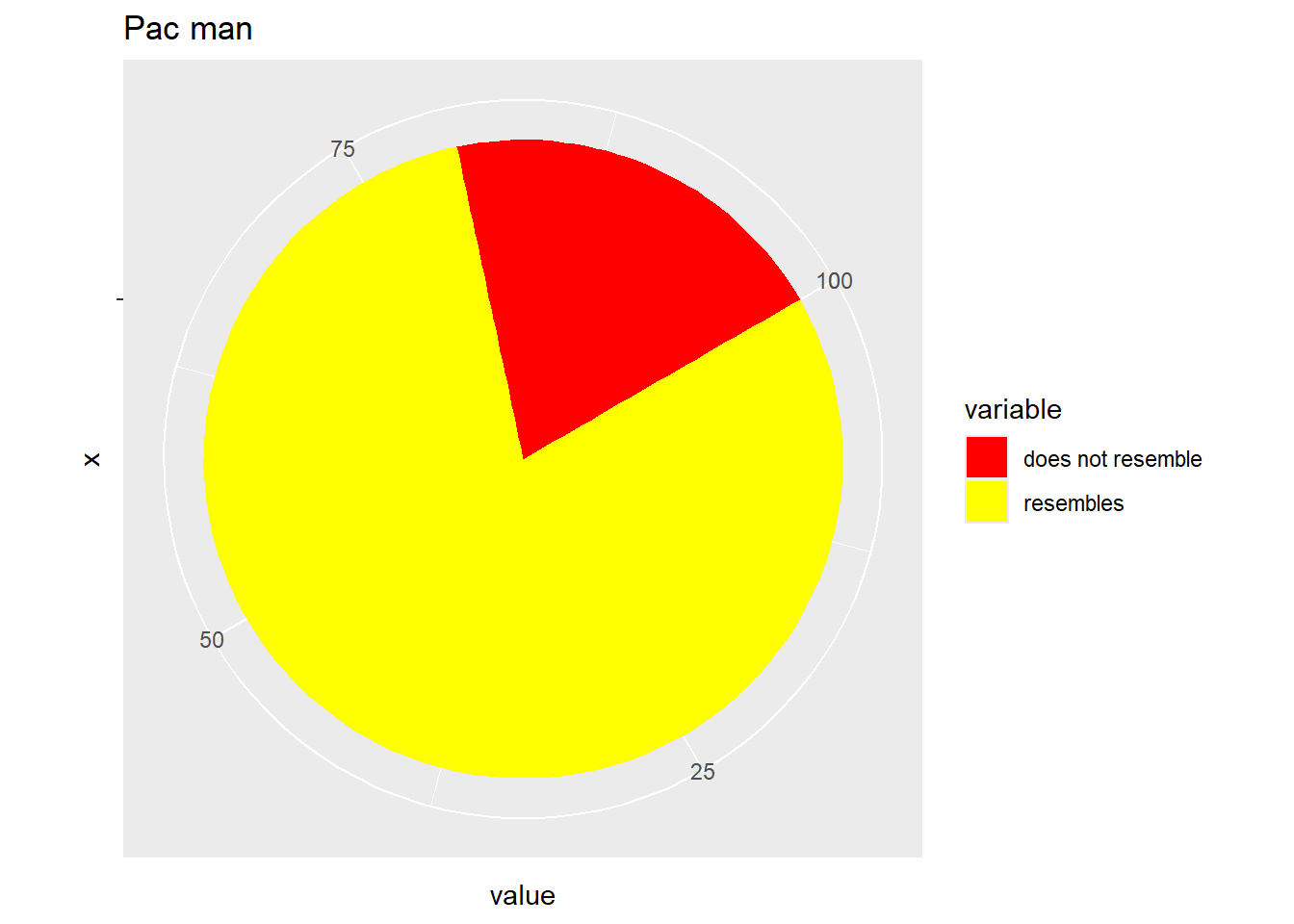

# Hadley's favourite pie chart
df <- data.frame(
  variable = c("does not resemble", "resembles"),
  value = c(20, 80)
)

ggplot(df, aes(x = "", y = value, fill = variable)) +
       geom_col(width = 1) +
       scale_fill_manual(values = c("red", "yellow")) +
       coord_polar("y", start = pi / 3) +
       labs(title = "Pac man")

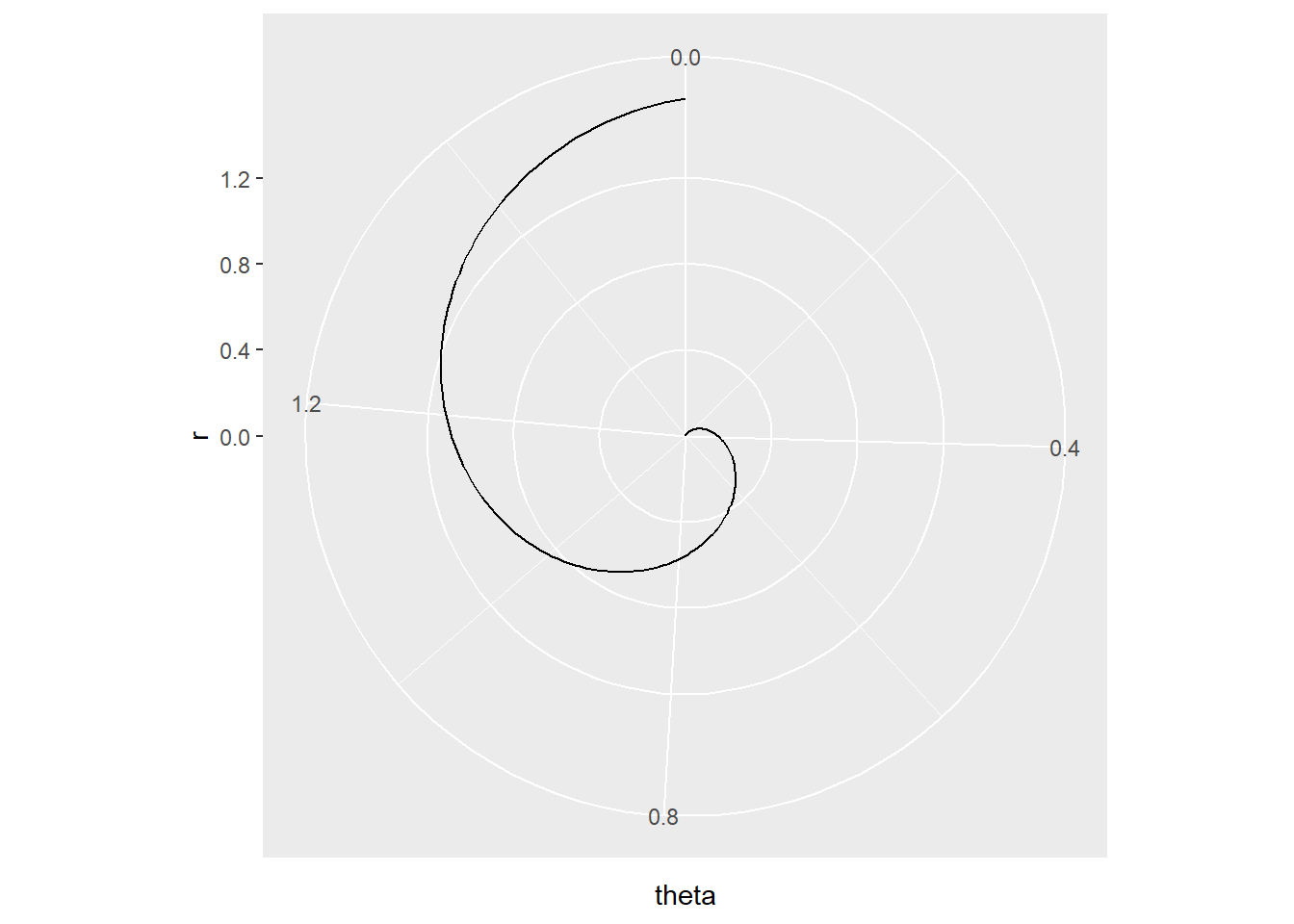

To plot the function \(f(\theta)=\theta sin(\theta)\), \(0 \le \theta \le \frac{\pi}{2}\) we need to following code:

theta.vec <- seq(from = 0, to = pi/2, len = 200)
my.dat <- tibble (theta = theta.vec,
                  r = theta.vec*sin(theta.vec))
ggplot (my.dat) + geom_line(aes(x = theta, y=r)) +
                  coord_polar(theta = "x")

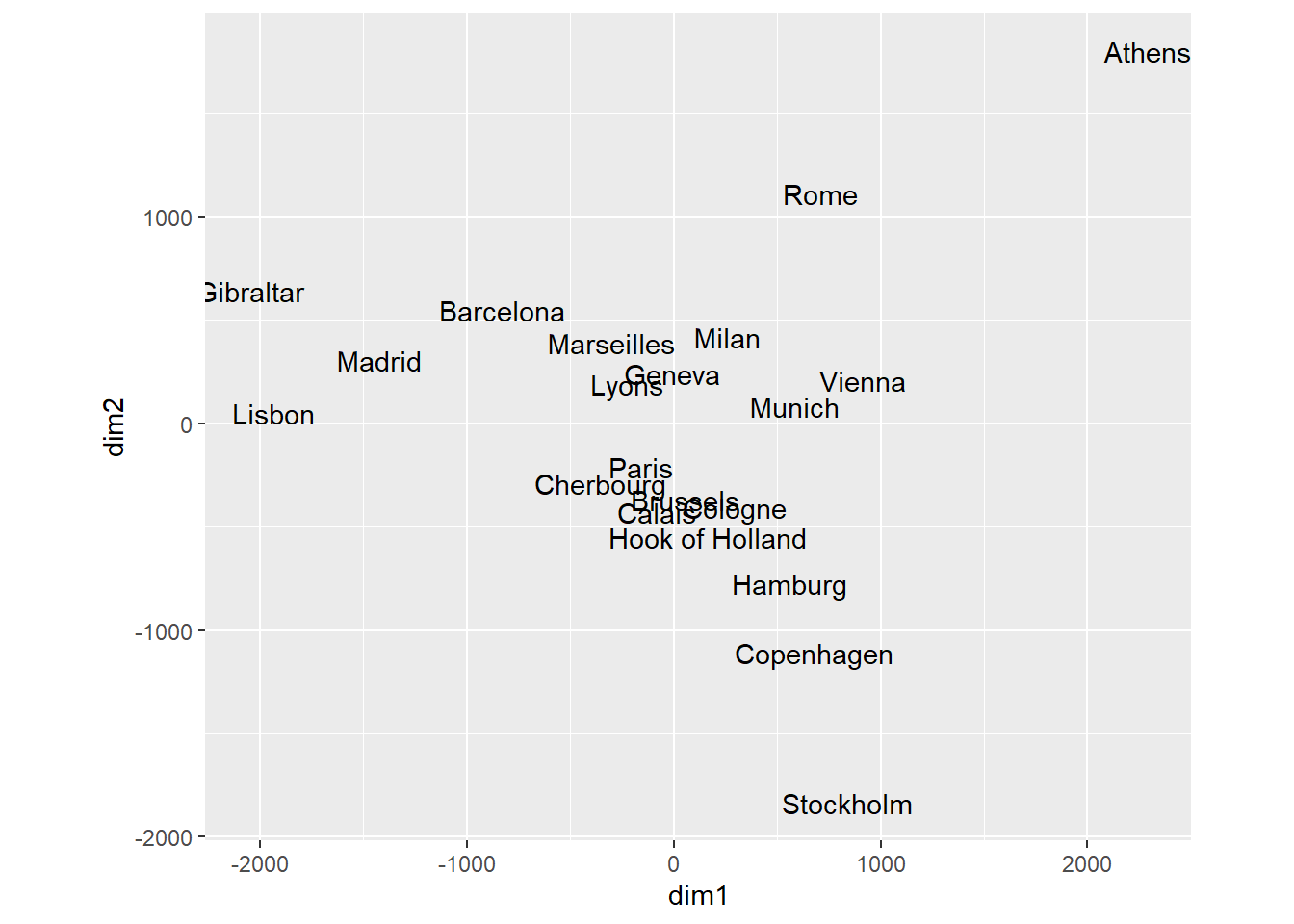

As illustrated in Exercise 6.2 number 10 it is sometimes essential to keep the aspect ratio in the graphic fixed, usually at \(1:1\). Classical scaling is a method to produce a map from a given matrix of pairwise distances. In the code below, a map (subject to rotation and reflection) of cities in Europe is produce with the function cmdscale(). In order to visually assess intercity distances, it is important to have one unit in the horizontal direction equal to one unit in the vertical direction. This is achieved with coord_fixed (ratio = 1).

city.coords <- data.frame(city=attr(eurodist,"Labels"),
                          cmdscale(eurodist))
colnames(city.coords)[2:3] <- paste("dim",1:2,sep="")
city.coords <- tibble(city.coords)
ggplot (city.coords, mapping = aes(x = dim1, y = dim2)) +
        geom_text(mapping = aes(label=city)) +
        coord_fixed(ratio = 1)

10.14.12 Facets

Facets allows for the grouping of the data set into smaller similar data sets. We can plot the fat vs calories for every manufacturer separately.

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point() +
       facet_grid (vars(mfr))

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point() +
       facet_wrap (vars(mfr))

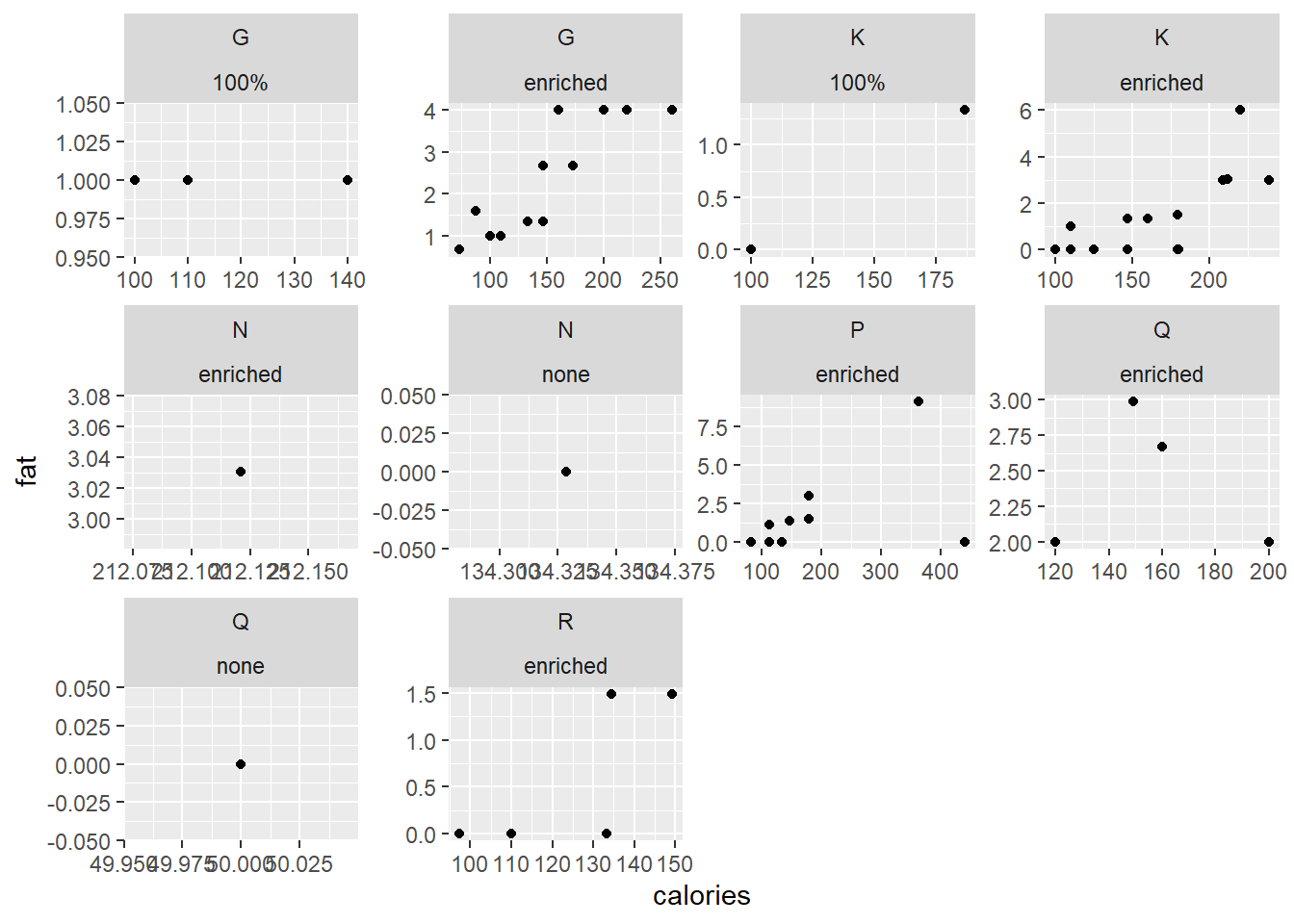

Although it does not allow for comparison across plots, each plot can have its own axis range while splitting the data according to two variables.

ggplot(data = cereal,
       mapping = aes(x = calories, y = fat)) +
       geom_point() +
       facet_wrap (vars(mfr, vitamins), scales = "free")

10.14.13 Themes

As mentioned before, themes is disconnected with the data. Themes allow for the formatting of the background, gridlines, titles, etc.

p3 <- ggplot(data = cereal,
      mapping = aes(y = mfr, fill = vitamins)) +
      geom_bar() +
      facet_wrap(vars(mfr))

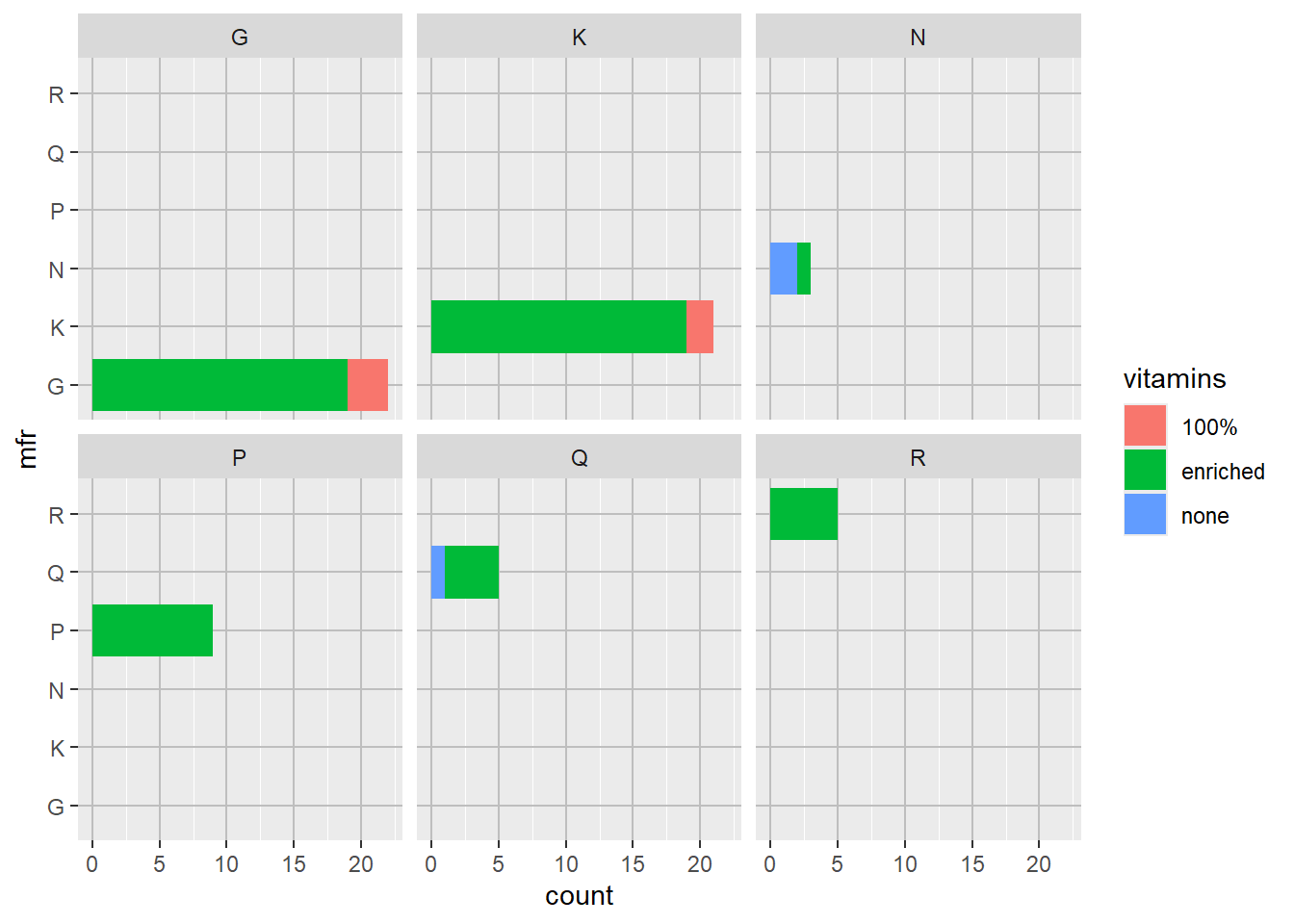

p3

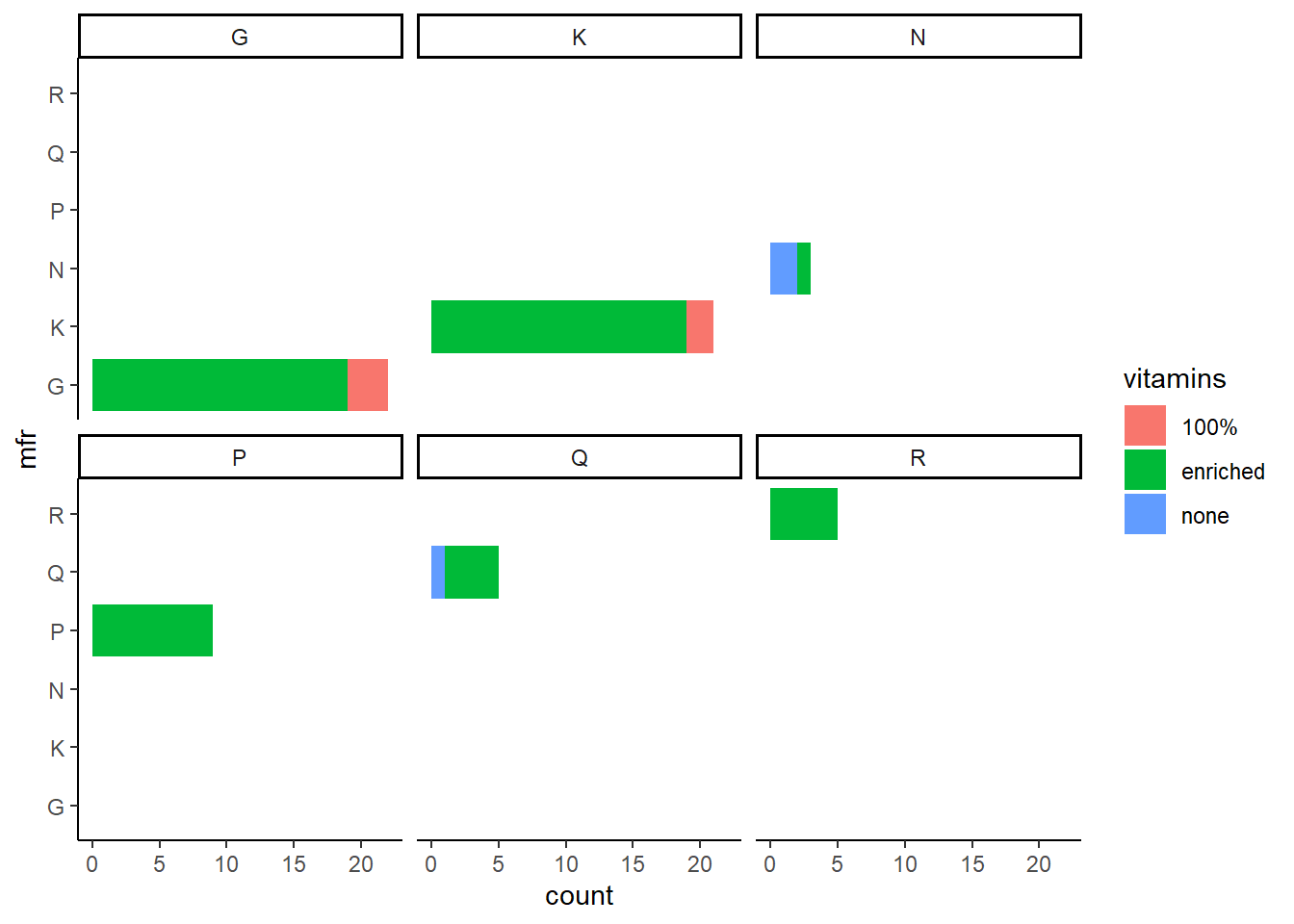

p3 + theme_classic()

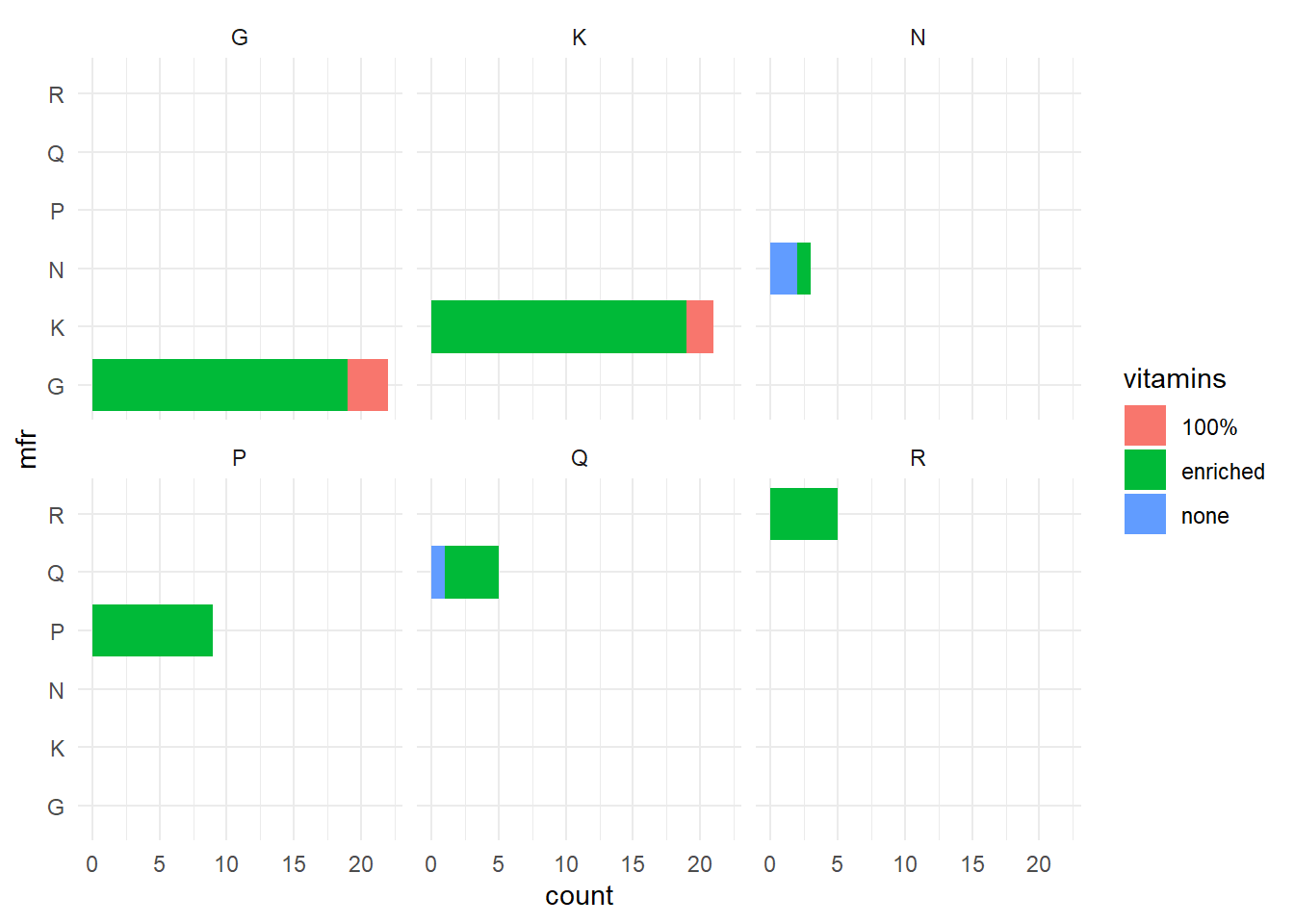

p3 + theme_minimal()

p3 + theme(panel.grid.major = element_line("gray", size = 0.5))
#> Warning: The `size` argument of `element_line()` is deprecated as of
#> ggplot2 3.4.0.
#> ℹ Please use the `linewidth` argument instead.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where
#> this warning was generated.

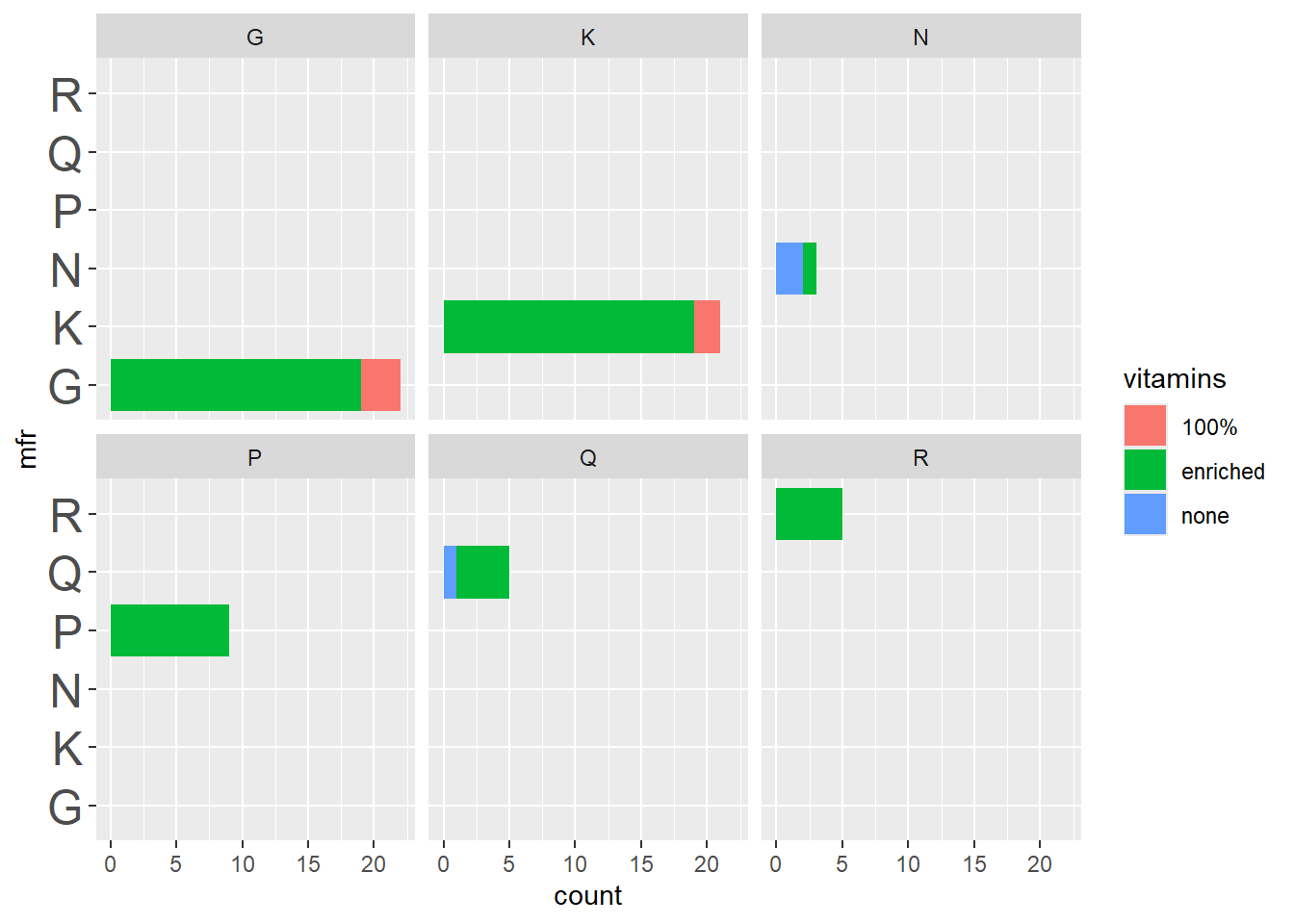

p3 + theme(axis.text.y = element_text(size = 18))

p3 + ggtitle("Heading") + theme(plot.title = element_text(family = "serif"))

p4 <- ggplot(data = cereal,
             mapping = aes(x = calories, y = fat)) +
             geom_point(mapping = aes(colour = sugars))
p4 + guides(colour = guide_colourbar(barwidth = 0.25, barheight = 20,
                                        nbin=100))

p4 + guides (col = guide_legend(ncol=2, reverse=TRUE))

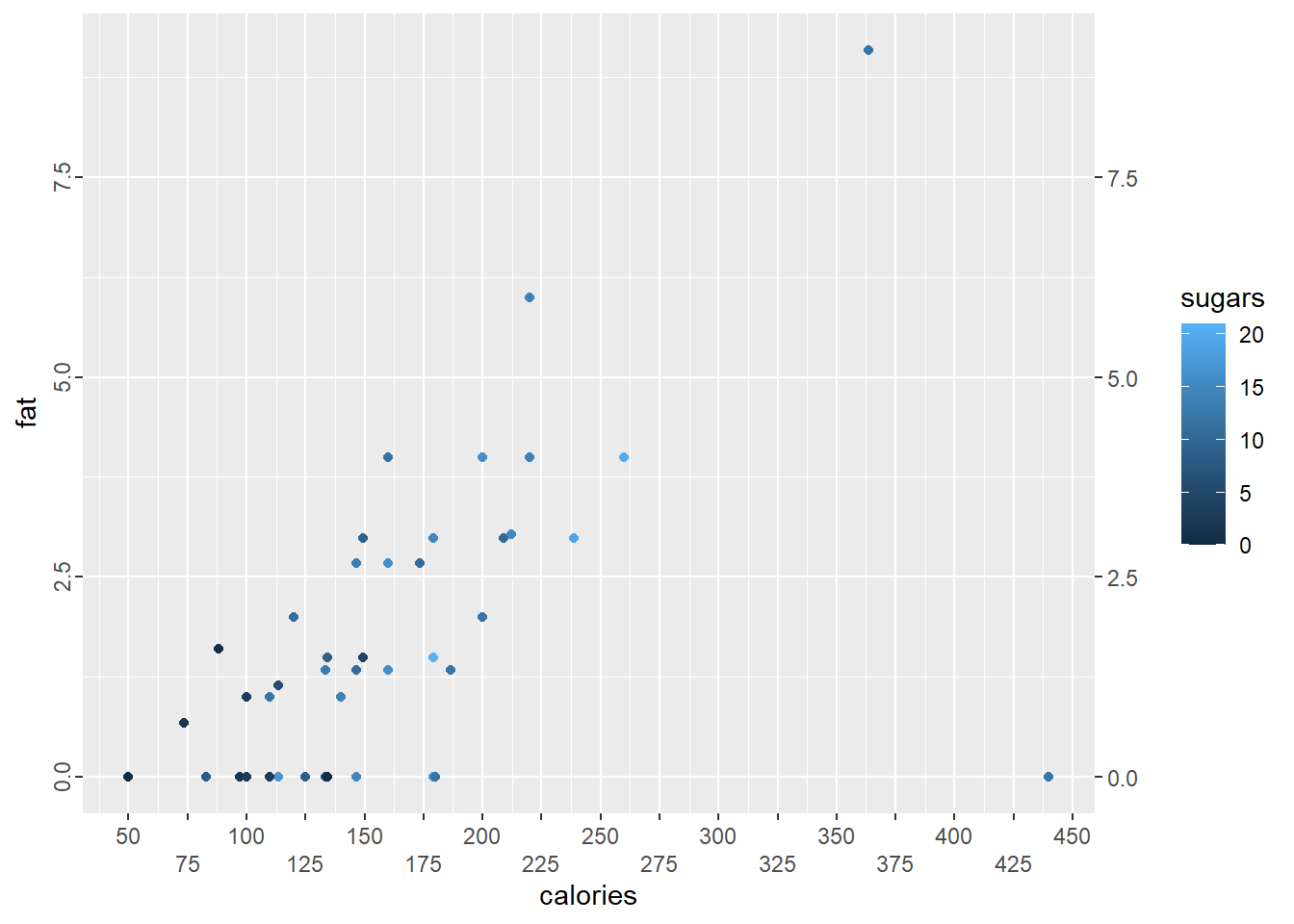

p4 + scale_x_continuous(breaks = seq(from = 50, to = 450, by = 25),
                        guide = guide_axis(n.dodge = 2)) +
     guides(y = guide_axis(angle = 90), y.sec = guide_axis())

10.15 Exercise

1 (a) Convert the state.region and state.x77 data into a dataframe USA.states and construct a histogram of the population. Set the bin widths at 2000 (thousands).

2. Make a boxplot of the Income for each region separately.

3. A violin plot is based on a boxplot but also show the probability density of the data at different values, usually smoothed by a kernel density estimator. Make violin plots of the Income for each region separately and assign a custom scale to the violin fill values.

2. 1. Set the seed to 7453 and generate a matrix of 100 values from a \(n(10,2^2)\) distribution arranged in two columns of 50 values each. Construct a data frame with numeric variables val1 and val2 containing the coordinates of a convex hull around the data in your matrix by using the function chull(). Now make a plot of the data and add the convex hull with the function geom_polygon(). The convex hull should be in red with no fill. Note that you will need two dataframes or tibbles, one for the data points in the matrix and another for the convex hull.

2. Study the code below for the construction of rectangles on a graphic.

df <- data.frame(x = rep(c(2, 5, 7, 9, 12), 2),
                 y = rep(c(1, 2), each = 5),
                 z = factor(rep(1:5, each = 2)),
                 w = rep(diff(c(0, 4, 6, 8, 10, 14)), 2))
ggplot(df, aes(x, y)) +
       geom_tile(aes(fill = z), colour = "grey50")
ggplot(df, aes(x, y, width = w)) +
       geom_tile(aes(fill = z), colour = "grey50")
ggplot(df, aes(xmin = x - w / 2,
               xmax = x + w / 2,
               ymin = y, ymax = y + 1)) +
       geom_rect(aes(fill = z), colour = "grey50")

3. 1. Use the USA.states data from (1) and construct a density plot of the Frost variable. Set the bandwidth bw = 10 to determine the amount of smoothing.

2. Next, construct four density plots on the same set of axes for the four regions, using different colours for each.

3. Now, make four separate plots by using the function facet_wrap(). Change the line type to type 3 and a line width of 1.5.

4. Set the random seed to 8359 and generate a vector of length 500 of random values from a \(n(-1,0.04)\) distribution. Construct a density plot, with x-axis range (i) in reverse by using function scale_x_reverse() and (ii) from 0 on the left and -2 on the right by using function xlim().

4. 1. The data set fujitopo in the package geomapdata contains a list with three components: lat (latitude), lon (longitude) and z (elevation). Construct a tibble with three columns lat, lon and z and then use the function geom_contour() to construct a contour plot. Since it is a topographic map, ensure that you have an aspect ratio of 1.

2. Repeat exercise 10.13 number 1 using the geom_raster() function and making contour plots instead of 3D plots.

   • First make a contour plot of the full data set.
   • Select a sample of size 500 and make a contour plot.
   • Repeat the above with geom_raster ( , interpolate = TRUE).

5. The maps package can be used to draw a world map or a map of a specific country or region. The ggplot2 function map_data() converts the data from the maps package in to a data frame suitable for plotting with ggplot(). Study the maps constructed below and comment on the different “projections”.

crimes <- data.frame(state = tolower(rownames(USArrests)), USArrests)
library (maps)
#>
#> Attaching package: 'maps'
#> The following object is masked from 'package:purrr':
#>
#>     map
states_map <- map_data("state")
pp <- ggplot(crimes, aes(map_id = state)) +
             geom_map(aes(fill = Murder), map = states_map) +
             expand_limits(x = states_map$long,
                           y = states_map$lat)

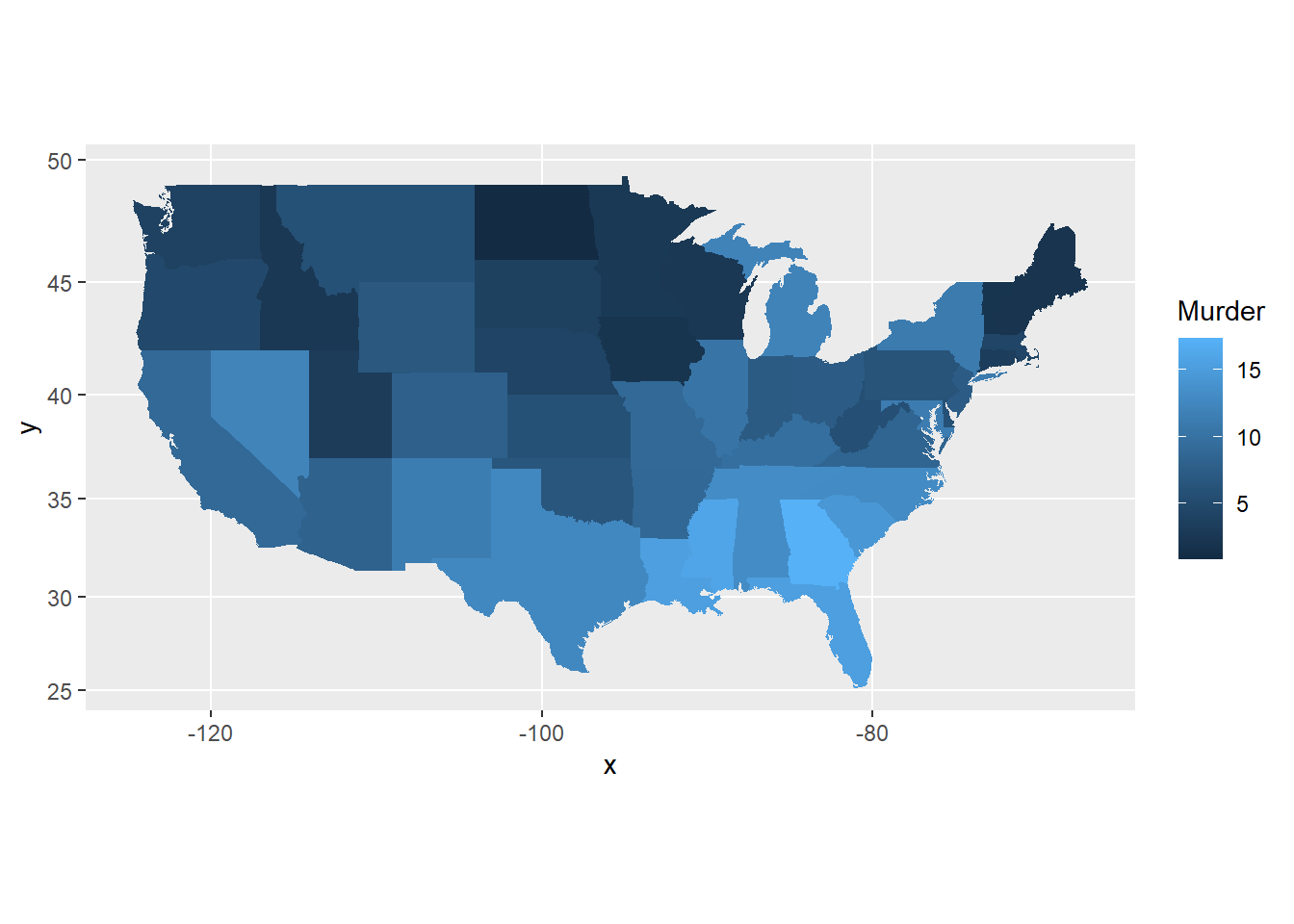

pp + coord_map()

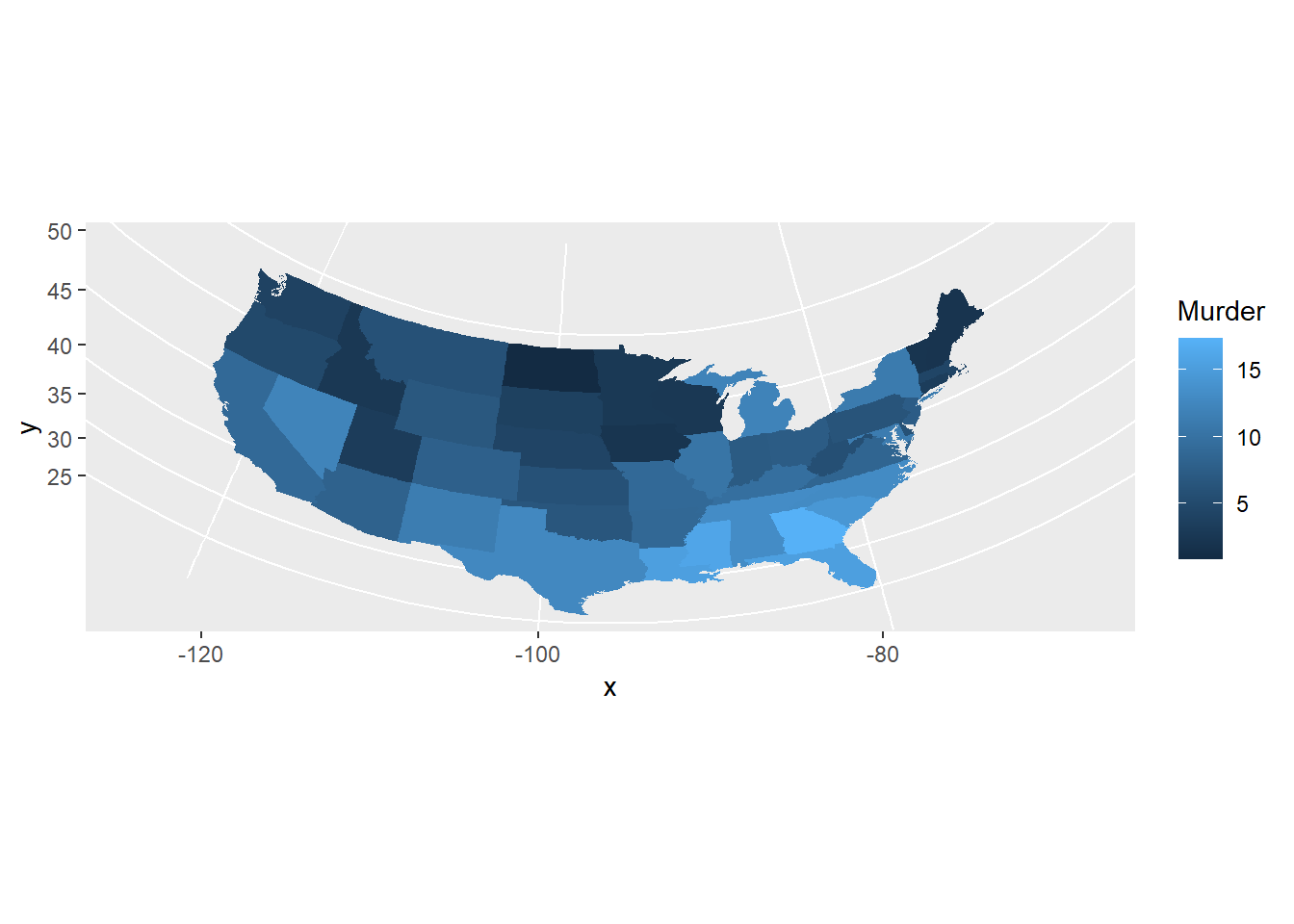

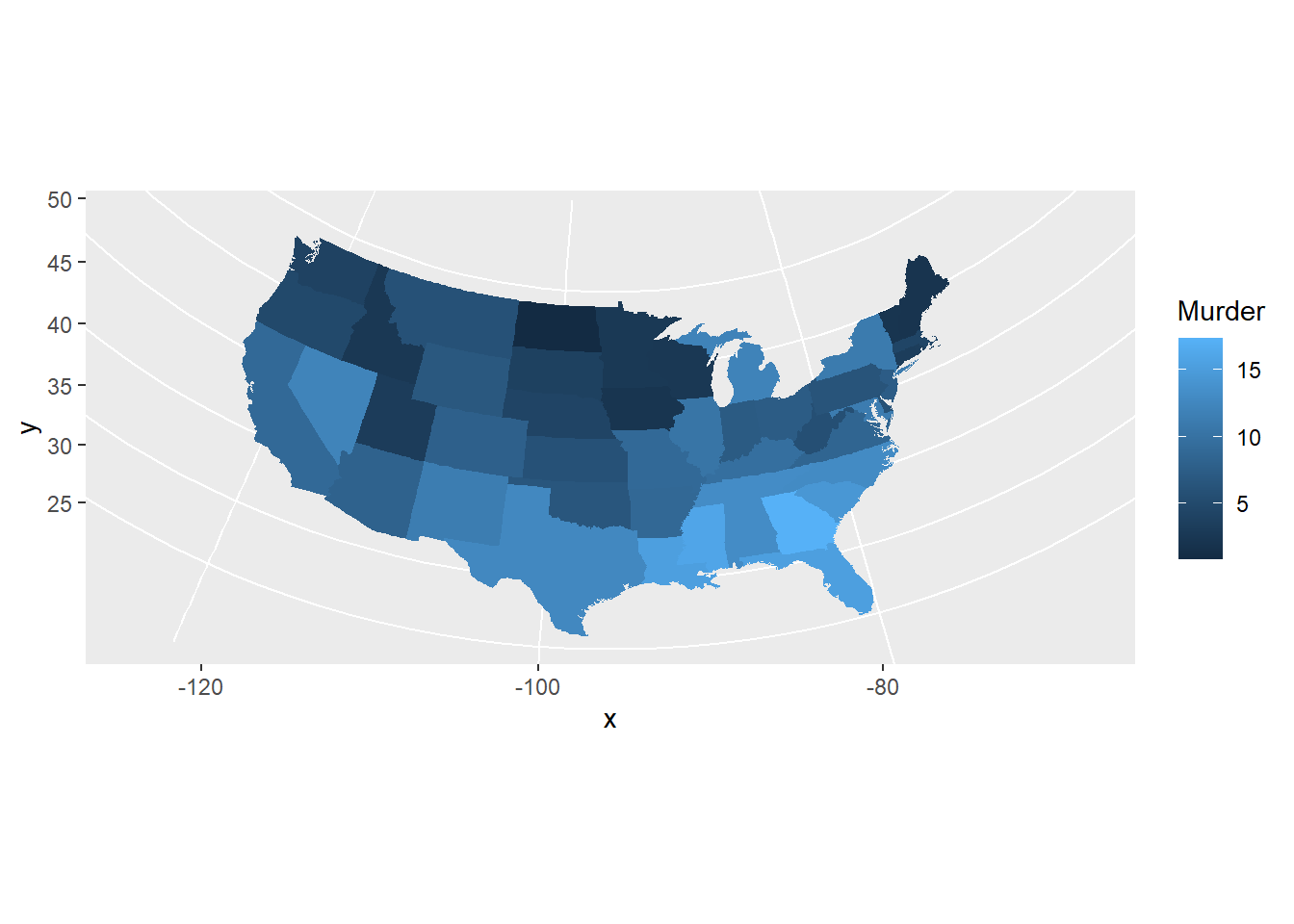

pp + coord_map("azequalarea")

pp + coord_map("orthographic")

usamap <- ggplot(states_map, aes(long, lat, group = group)) +
                 geom_polygon(fill = "white", colour = "black")

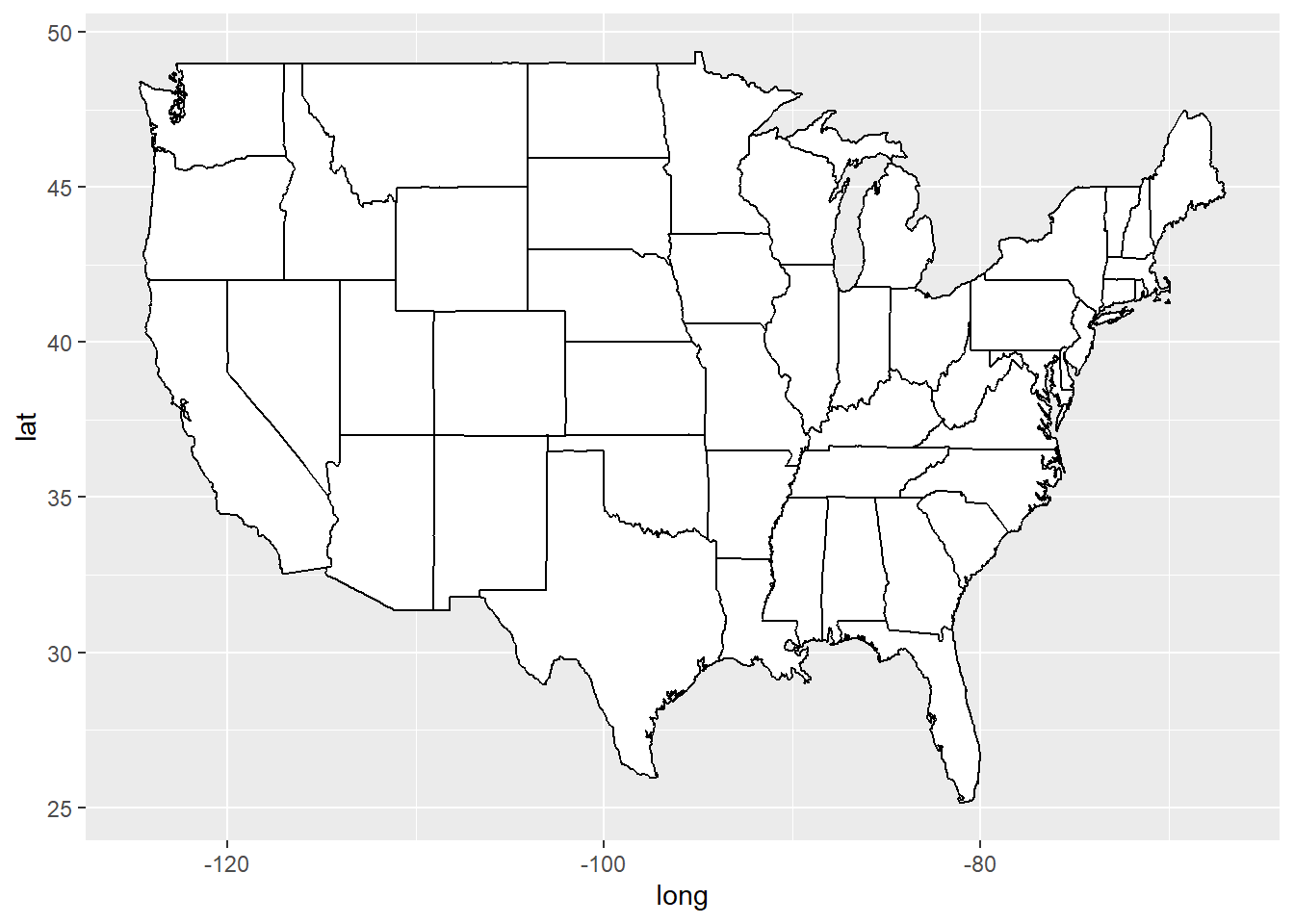

usamap

usamap + coord_map()

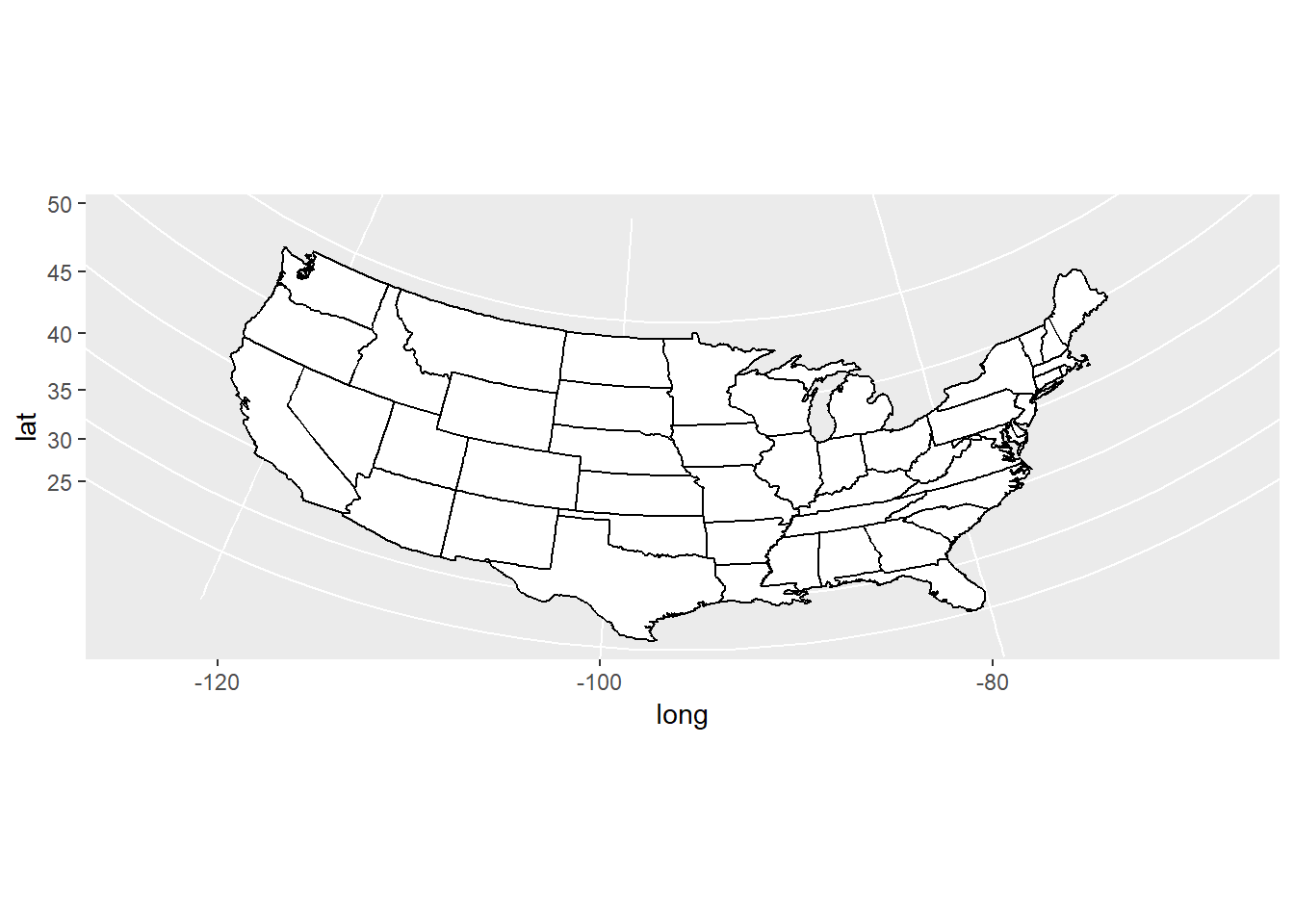

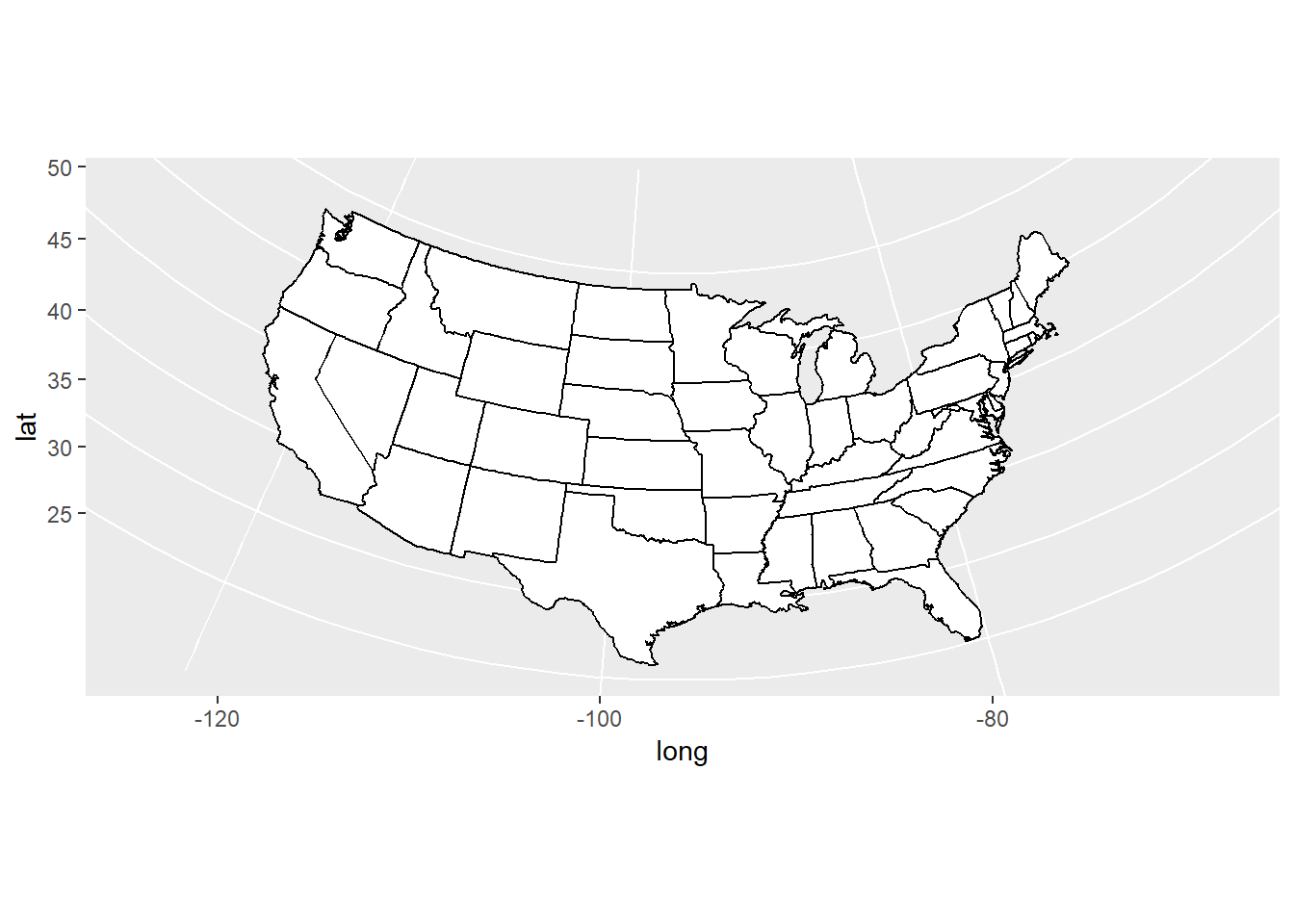

usamap + coord_map("azequalarea")

usamap + coord_map("orthographic")

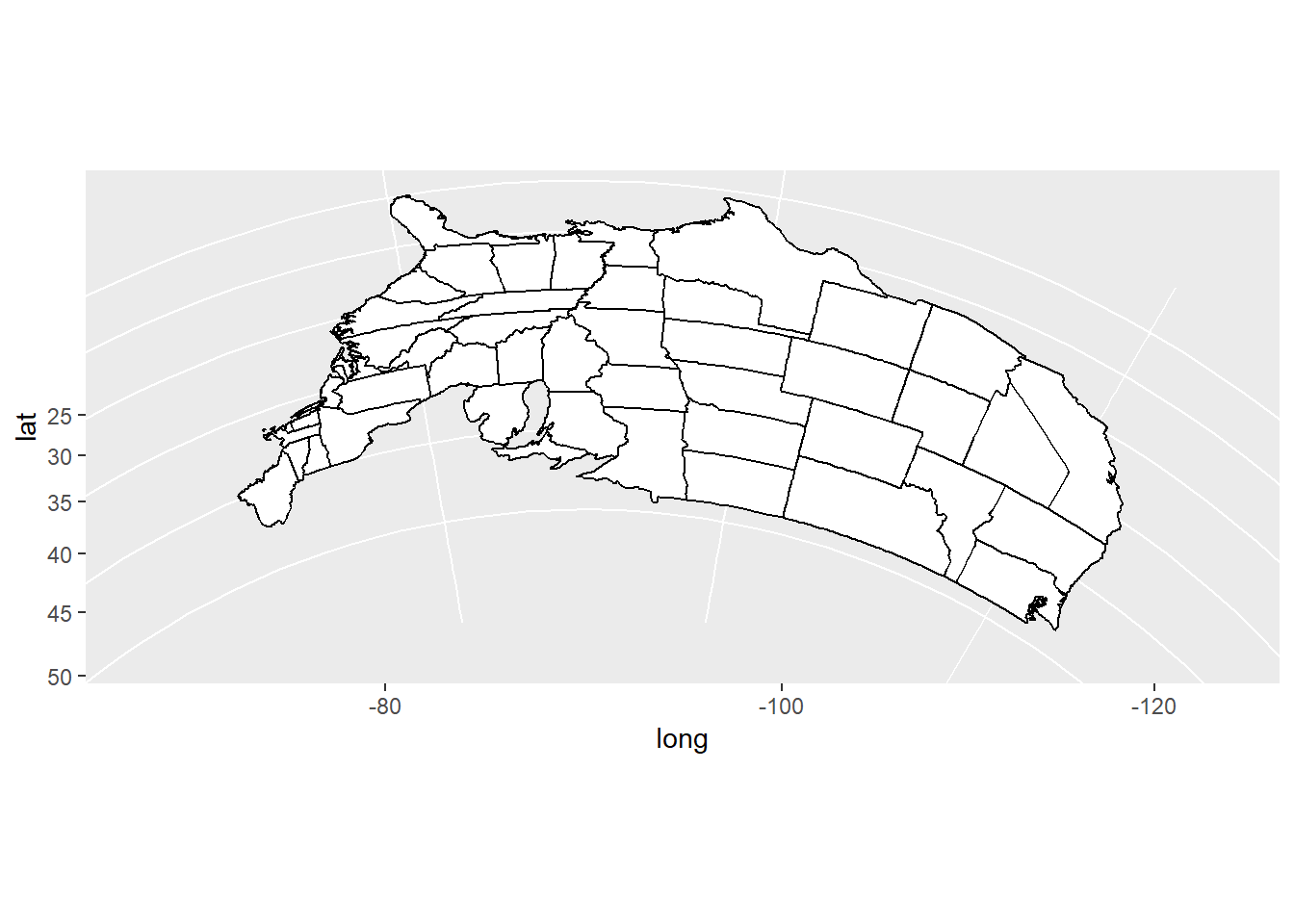

usamap + coord_map("orthographic", orientation = c(90, 0, 90))

6. Reproduce the plot created in section 10.4.2 with ggplot().

7. Reproduce the plot created in section 10.4.3 with ggplot().

8. Reproduce the left panel of the plot in Figure 10.9 with ggplot().
